Sostituzione della batteria TI-30Xa di Texas Instruments

Scritto Da: Chris L
  • Commenti: 37
Sostituzione della batteria TI-30Xa di Texas Instruments

Difficoltà

Facile

Passi

5

Tempo Necessario

10 minuti

Introduzione

Questa guida mostrerà, passo dopo passo, la sostituzione della batteria per la calcolatrice scientifica TI-30Xa.

  1. YnlNCcCQGA5USRNP

    • Ecco la calcolatrice TI-30XA completamente assemblata.

  2. n4J1qOsSMKXORUKw
    n4J1qOsSMKXORUKw
    kmNnqSE6Sq25vdQS

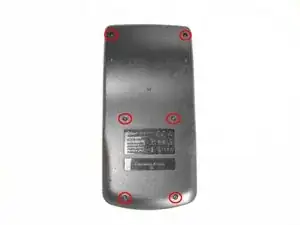

    • Individua le sei viti sul retro della calcolatrice.

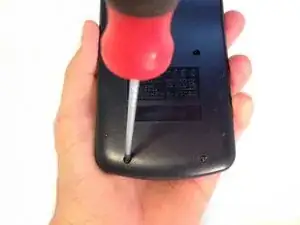

    • Con un cacciavite Phillips #0, allenta e rimuovi le viti.

    It is a #0 Phillips. I tried a #1 screwdriver and a DeWalt #1 bit. Neither worked.

    Eric Scott Johanson -

  3. sHhbNai6nXIGEJJK
    sHhbNai6nXIGEJJK
    5Rvc2ZXQx4uyblW2
    ERZtIdQOXYCBCpcT

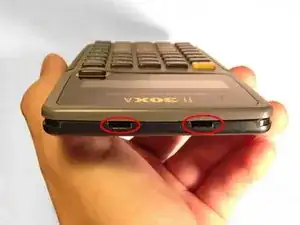

    • Trova le due tacche nella parte superiore della calcolatrice.

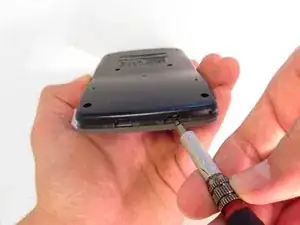

    • Inserisci un cacciavite a testa piatta in una delle tacche e fai leva con cautela per aprire l'estremità superiore della custodia.

    • Individua il punto in cui la custodia è ancora attaccata ai lati.

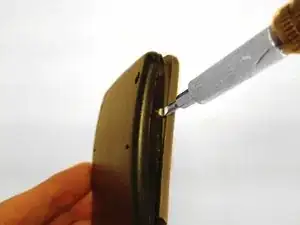

    • Inserisci il cacciavite a taglio in un lato in cui lo spazio si è allargato.

    • Ora solleva delicatamente i lati della custodia.

    • Fare leva su un solo lato rilascerà anche l'altro lato.

  4. CtQQUi5NPL12NTU4

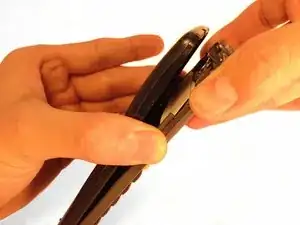

    • Ora separa i due pannelli l'uno dall'altro.

  5. Havp2OE3ZmuDthBp
    Havp2OE3ZmuDthBp
    vpmEOg31EuDgBdsF

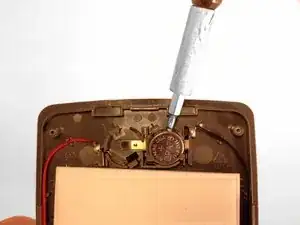

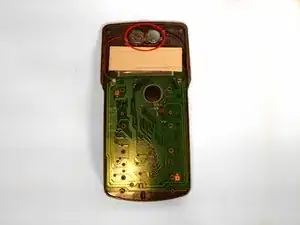

    • Le due batterie LR44 si trovano in alto.

    • Fai scorrere il cacciavite a testa piatta sotto ogni batteria e usciranno facilmente.

    Positive side of both batteries should face 'UP'/away from the circuit board

    Chris Wisdom -

    When will you know tht the battery has to be change on the TI30Xa

    Sergio Polanco -

    when the display gets really dim

    Ed Pereira -

    In Step 3, it might be helpful to explain that there are retainer tabs on either side of the case to focus on the release. Maybe add the red ovals as to their location in the graphic (You can just see it in Step 4.

    Otherwise, great post! Thanks!

    Paul other -

    There is a note printed on the circuit board: “Short the reset pad after replacing batteries”.

    Harvey Riddle -

    For some reason my calculator only shows half the number when I type it. What do I do with that?

    Some person -

Conclusione

Per riassemblare il tuo dispositivo, segui queste istruzioni in ordine inverso.
