Sostituzione della rotella del bagaglio Samsonite

Scritto Da: Xinyi Min
  • Commenti: 33
Sostituzione della rotella del bagaglio Samsonite

Difficoltà

Facile

Passi

8

Tempo Necessario

30 minuti

Introduzione

Utilizza questa guida per sostituire una rotella della valigia Samsonite.

Una rotella danneggiata potrebbe bloccarsi, causando lo sbilanciamento della valigia portandola a virare, o impossibiliti la valigia nel movimento . Una rotella di sostituzione ti aiuterà a sistemare il problema.

Passo 1 Ti aiuterà ad assicurarti se la sostituzione è necessaria e a prepararti per rimpiazzarla.

Passo 2 Ti aiuterà a scegliere il pezzo per la riparazione.

  1. kYeIOUIMELLpMEIK

    • Pulisci la rotella per assicurarti che non sia bloccata.

    • Qualche volta le rotelle non funzionano perché sono piene di sporco o detriti. Questo passaggio ti aiuta a capire se hai bisogno della sostituzione.

  2. Xtgxn2DsxE2y5aPr
    Xtgxn2DsxE2y5aPr
    6uXQ5hvObOnalwVE

    • Scegli il giusto ricambio, misurando il diametro e la larghezza della rotella.

    Measurement is vague to measure the wheel. Are you measuring the total width and length of the inside plate to determine the wheel size. Also, where can I get the wheels and what is the cost.

    I have a 28 inch hard shell spinner.

    These are the numbers on the tag.

    20180126

    4500470795

    7213

    4616

    1109309

    10

    Is there a place in South Jersey to purchase the wheels.

    gordon pherribo -

  3. jkC1MtDNeeVigJlV
    jkC1MtDNeeVigJlV
    gqq34XvErbjQ4iSJ
    JjpmB2tSRDKcAq1s

    • Rimuovi le viti che tengono in posizione la staffa della ruota da dentro la valigia.

  4. SdoPCfDRG1BXf5uR
    SdoPCfDRG1BXf5uR
    SGCTTOIaQgMCkHLt

    • Tira fuori la staffa che tiene in posizione la ruota al telaio.

  5. 6mGjmkEnWoY2gyow
    6mGjmkEnWoY2gyow
    RMlxKFfyUSv6EWfX

    • Togli la vecchia rotella dal esterno della valigia.

  6. kFK6uACvJ31yGJDH
    kFK6uACvJ31yGJDH
    bmGfTMkjqWuBTUEb

    • Inserisci la nuova rotella sulla valigia, facendo attenzione che i supporti sulla base della rotella si allignino con i fori della valigia.

    You can see that it is NOT a NEW wheel! It's a shame, because the instructions would be useful if the case is otherwise still in good shape. Last year I unfortunately had to replace my good old Samsonite with a product from a competitor, because Samsonite no longer manufactures the product and has no suitable successor in its range ?! Since only the wheels were worn out, I looked for a replacement, but couldn't find a replacement (!) From the manufacturer, nor any usable alternatives, which is probably just not wanted in order to force a new purchase!

    Here it would have been really useful how to install alternative rollerblade / inline wheels as a replacement!!!

    Carsten Queschning -

    I wonder, if the axle could be drilled out and then the wheel be replaced.

    VauWeh -

  7. QyAahCWnGFxUBrsi
    QyAahCWnGFxUBrsi
    sKDtAt4r6wYtaHkx

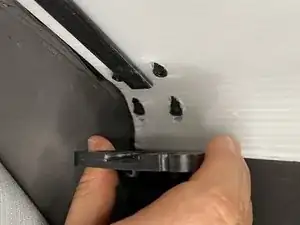

    • Porta la staffa nuovamente nella sua posizione originaria da dentro la valigia.

  8. Q1tEr3BSxPXXEGHN
    Q1tEr3BSxPXXEGHN
    MHOkyfxHjxGGPwPi
    sdyijAtBOO1uYMyq

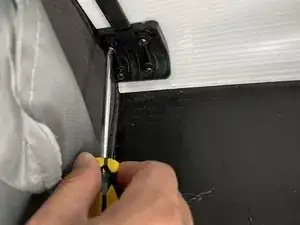

    • Stringi le viti che tengono la staffa in posizione originaria.

    Very good guidence.Thanks

    bagade umrao -

    Please, where did you buy the replacement wheel? My suitcase looks very similar to yours.

    Mark Romans -

    Mine also looks exactly like the photo, but where can you buy the replacement? The assembly is elementary, but useless information if the new replacement is nowhere to be found!

    Steven Z -

    Replacement is a no-brainer. Problem is getting the replacement wheel...

    Jan -

    my struggle as well

    Javier Brizuela -

Autore

Xinyi Min

Membro da: 15/01/21

317 Reputazione

25 commenti

Where can i get replacement wheels

ROBERT HAGGERTY -

i have a samsonite luggage w 4 wheels can i change the wheels for 4 sets or 2 wheels each for easier rolling

ondinelewitinn -

Too limited in the range covered. Does not mention 6"x1/2" wheel replacement.

Angus -

Super tuto pas à pas pour changer sa roulette ! Ce n'est pas compliqué de réparer une valise et tous les fabricants ou importateurs le savent bien. Le plus dur est de trouver les bonnes pièces... Mais nous sommes là :) https://jereparemonbagage.com

reprise -

Too bad no mention of where to find the wheels. Amazon.com does not show the wheels I need and Samsonite webpage is NO help at all.

Dale -

home depot..... hardware

Spec Cd (spec_cd) -

I agree totally!

peacock93 -

I agree! The ones on Amazon are the wrong size and have bad reviews. Samsonite’s site is zero help. I hate to throw out a perfectly good suitcase with limited wear over a flat tire. I checked Home Depot per the comment above and didn’t see anything. Any other suggestions?

Juliet Quick -

you can find them in aliExpress. I ordered from there and received it today and already fixed 1 wheel each on 2 Samsonite luggages.

https://www.aliexpress.us/item/325680508...

the above is the one fit perfectly for my samsonite luggages.

ViewFindR SLR -

Where do you find the wheel replacement for Samsonite Ascella X 3.0

J. Dela Cruz -

where do i find the replacement or can i give it to what shop to repair ?

ondinelewitinn -

Vervangen wielen Samsonite Handbagage boujaar 2004.

Ik heb 2 Samsonite handbagage productiejaar 2004. Deze handbagage heeft twee wieltjes. Heb de wieltjes nu vervangen.

Vond op internet interwiel.nl de benodigde wielen. Diameter 75 mm, asgat 8mm. Kost per wiel minder dan 2 euro.

Wieltjes zijn bevestigd in plastieken steunen. Die worden gedemonteerd door binnen in de valies 4 schroeven los te draaien.

Hiervoor heb je inwendige zeskant sleutel nodig. Ongeveer 30 minuten werk.

Clement Noé -

Could this guide be any more vague?? Great job replacing the parts. Now tell where to buy them!!!

Russ G. -

Can I replace the roller wheels for wheels that can be dragged? Is that possible?

Julie -

where I get replacement set of 4 wheels for Samsonite # 1000547

roman gzyl -

Alguien consiguió donde comprar las ruedas Samsonite ?

Sol Achucarro -

Try Amazon: e.g . SG10070 ASIN‎ B07H29R7H6 or similar

‎

VauWeh -

It is very frustrating for sure but I found these on Amazon and they fit my Samsonite suitcases perfectly - BQLZR Black Spinner Luggage Wheel Left & Right Plastic Swivel Caster Wheels with 3 Holes,Hole Pitch (1.22"/1.22"/1.06"),for Luggage Suitcase Trolley 360 Degree. W024 is the size that my suitcases needed. Hope this helps.

karen draves -

I tried to hacksaw of the wheels for replacement but my hacksaw had no effect. Is it the case that it's made of titanium?

Desmond Lim -

Where to buy a new wheel for my Samsonite soft top? Dia 75mm width 23mm.

Marks on the wheel : GSI Wheel / CKW046 / 25-02017C / 44-9L100

Jan de Boer -

I need the wheels shown in your instructions. Where can I find them???

Regards

Eric

Eric Rojas -

Agreed video does not offer any lead on purchasing replacements wheels. Looking for samsonite spinner mobile office wheels...Unable to read the number on the actual wheel but the number on the tag reads SAM-HNGTG-2572. Any help appreciated.

Simone A. James Alexander -

Don't you think it might go a little easier if you gave the information on where to find replacement wheels it's very frustrating. You give instructions on taking wheel off but nothing on where or part # for the case you have.. WOW totally disappointed..

Fred -

You might find replacement wheels here: replacement wheels

Toon Konings -

Google Lens to find model

Javier Brizuela -
