Hi,

I used a hair dryer (exhaust air about 60°C) instead of a heat gun: this temperature was sufficient to soften the glue. The plastic and glass cover could be removed without damage.

How I did it was to heat the plastic to around 65C (150F) with a hair dryer, then managed to get one of my metal prying tools in and under the edge to pull it up.

The Ifixit knife has a curved sharp edge. I used this edge in the middle of the outer long side of the lower cover and pushed it straight down. The natural curve in the now softened plastic allowed it to buckle/bend a little further. I then slowly rolled the top edge of the knife out and away from the phone. There was then sufficient gap to insert a Pick. Heat it again with the IOpener and then slide the Pick further in and along from end to end.

Used a fan on high heat. Worked great.

A heating pad works well for these steps

This has to be the hardest part. I really did not want to damage the glass. My phone has had a rough life and there is some minor damage despite having a double layer cover. I decided to prise the glass off from the end opposite from the camera after many unsuccessful attempts from near the middle. With the knife I was able to scrape the metal edge near the end of the glass cover - keep the blade facing out. With the metal out of the way the knife tip was able to get under the glass followed by a Pick. I heated it all up again with the IOpener heat tube. Using reflected light keep an eye on the bend in the glass. If you can see a bend then slow down and let the glue separate. The reward for patience is unbroken glass.

I had a really hard time getting under the glass using the iOpener. I just don’t think it got hot enough to really loosen up the adhesive. So, I got my wife’s hair dryer and used that. I put it on the highest heat and held it to the glass for a couple minutes. That loosened it up pretty well and I was able to get enough space to put in a prying pick. Once I got one of those in it was pretty easy.

The way I did this bit was to heat the glass up to around 70C (160F) with a hair dryer, then use a razor blade to get in under the glass, then used a playing card and pushed that along underneath the glass to seperate the glass from the body. I started with my razor blade at the curved edge of the glass on the side of the phone, rather than at the straight edge at the top as they show here, because it was a bit easier for me.

Nothing else in my toolkit had a fine enough edge to get in under that glass except for a razor blade. The gap is very small.

The good news is that my phone works fine. And it now has some battle scars that make it look like I repaired it. Let’s be honest: bragging rights are half the reason we tried this instead of buying a new phone anyway. My camera and flash still work, though the latter needed its lens glued separately.

The bad news is that I broke my glass. I started from the corner away from the camera, and about halfway along the width of the phone, the glass utterly shattered. It stayed together, so its coating worked. I used some scotch tape to further control the shards, and i slid a small flathead along under the top and bottom edges to scrape the glue. I think that would have been my technique in the first place if i had x-ray vision. I also would have started camera-side.

I think my mistake was not maintaining heat while prying. The glass started hot, but when it broke it was barely warm to the touch. I think If I had kept it hot, it would have been more flexible.

Best of luck, everybody.

There is a black plastic band around the front glass. So stick the razor between the metal back and outside of the black plastic that is around the front glass. If you look closely at the first picture you can see the black plastic strip outside of the front glass. If you stick it between the black plastic and screen you could leave the mid frame in the metal case and only lift up the the glass and screen.

Definitely try to get the knife as close as possible to the aluminum body. It will spare you damage to the plastic band… wish I would have read the comment before trying this myself… ah… and don’t get tricked by a possible space between the display and the plastic band it looks tempting to put the knife in there however that will possibly damage the plastic band. That’s where I thought I could get in between the display and the body and did damage my plastic seal. Btw, I got my device open from the left side away from the power and volume buttons.

I couldn’t even find room for the knife, ended up using a suction cup to lift the bottom left corner enough to get a plastic shim in. Worked around from there. Damaged a good deal of the plastic around the edge trying to get the knife in—would recommend just using a suction cup.

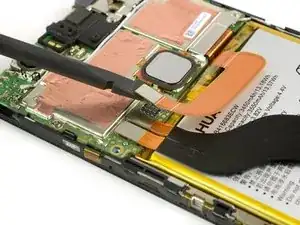

While I performed this step, the three ribbon cables from the next step came up attached to the metal plate.

As a head’s up the metal plate needs to be removed from the left side first because it does slide under another piece of metal close to the fingerprint scanner. Upon reassembly insert the right side first and then push the left side down. You will know if you have it in correctly if the plate cannot move freely if the screw is in even a little bit.

There is glue on the underside of metal plate that made it a little harder to pull up the plate than we expected. The flex cables did not come up with the plate, but it was a surprise.

While I was performing this, the three flat ribbon cables were stuck to the metal plate and came up with it. Watch out for that possibility.

How is the new battery secured to the phone? Is there enough adhesive left after removing the old battery to make it stay in place?

My battery came up pretty easily:

I heated the battery to around 60C (145F), then used a plastic prying tool and an old credit card and pushed them in to cut / seperate the glue. Then just pulled the battery up. Be aware of the display cable underneath and where it is (see picks below), but in my case it was fine.

For the replacement battery the existing black adhesive sticker things in the phone were enough (if yours come up stuck to the battery, pull them off and put them back into the phone), I just heated it up a bit again after inserting the new battery to reglue it back down.

You’re gonna want a heat gun and a scalpel for this one, for sure. All steps in this guide are accurate. I followed it, and my new battery fires up my old device just fine.

As far as new adhesive is concerned, I forgot to bring home double sided tape, so I cheated and used super glue to secure the new battery to the chassis.

When putting in new battery, I noticed that the ribbon cable coming off of it was not oriented perfectly for new install. I had to remove/cut back some of the yellow film at the top of the battery to allow for the cable to rotate a little more and then when inserting into phone, noticed there was some play top/down in the placement so I made sure to stick battery down where the cable would have the least amount of stress. I also noticed the interconnect plug for the battery didn’t give a satisfying “snap” back into place. I checked a few times to verify it was seated correctly and should be stable after placing hold down cover back on but it had me slightly worried at the time.
