Sostituzione dissipatore di calore Nintendo Wii

Scritto Da: Andrew Bookholt
  • Commenti: 134
Sostituzione dissipatore di calore Nintendo Wii

Difficoltà

Moderato

Passi

36

Tempo Necessario

45 minuti - 2 ore

Introduzione

Utilizza questa guida per rimuovere il dissipatore di calore dalla scheda madre della tua Wii.

  1. nAy3OhXSoOfu4ijL
    nAy3OhXSoOfu4ijL
    c15NIW3ZpSXgdFZe

    • Usa uno spudger in metallo per rimuovere le coperture in plastica bianca delle viti incastrate nella copertura inferiore vicino alla parte anteriore della Wii.

    Die Abdeckungen sind geklebt, stecken also nicht.

    Ludger -

    Don’t mistakenly remove the rubber case feet

    Bob Trout -

    I just did. That picture could be better.

    B G -

    Thanks I almost removed the rubber feet

    Lushane -

    If you’re wondering what to use for this, the main blade of a pocket knife from the corner of the plastic works well.

    Cameron Holman -

    As you remove the hardware in each step, place them together on a sheet of paper and circle them with the step number.

    Tom J -

  2. QLLTmVQpby6q1oKX

    • Svita le due viti Tri-Wing da 8,3 mm nascoste sotto le coperture appena rimosse.

    Before you start, get a small plastic tray with at least 15 small bins in it, and put the screws you take out in each step in the bins in order. It makes reassembly a LOT easier.

    larry -

    NOTE: You need a Y1 screwdriver. Be careful when buying the little red screwdrivers on Amazon that claim to fit the Wii - they don’t!! From personal experience.

    Robotai -

    Just to add to Robotai’s comment, if you do get the little red/orange screwdrivers on Amazon, file off the tip. It if’s mostly blunt, it fits the tri-wing screws much better.

    jeff -

    1/16 x 1 craftsman Phillips mini screwdriver works for this if you don’t have the tri-wing driver

    grace nicosin -

    How do you make one ? If you don’t have the screwdriver

    Ethan -

    I am using a 18ct empty egg carton to hold the screws/parts removed in the steps.

    karenmparamore -

    Larry’s idea about the bins was great and helpful.

    Robots is right- you NEED a Y1. Just buy the thing with the drive. I didn’t, tried many other options, none worked. Had to order the thing separately with shipping. Mistake….

    David Ryan -

  3. wjvAQVg1yyeAi1pU

    • Svita la vite a croce Phillips da 5,9 mm sotto la porta delle prese dei controller vicino alla copertura anteriore.

  4. ghUThgil3vmDoPcV

    • Usa uno spudger in metallo per rimuovere il piedino in gomma incastrato sul lato della Wii vicino all'ingresso del lettore DVD.

    All of the rubber feet on my very old Wii had literally melted into a gooey mess and just needed to be scraper off and cleaned with alcohol.

    Bob Robins -

  5. mhVTpcmCaFExhNaO

    • Svita la vite a croce Phillips da 5,9 mm nascosta sotto il piedino appena rimosso.

    please help! my lil sis got a disc stuck in my wii while it was off!!! please help fast!!!

    Leah Vegan -

    does it turn on?

    Giovanni Munoz -

    It won’t come out, it will turn and go up but it won’t go fully out

    Mmbb -

  6. i1WPurAjixkuIcDK
    i1WPurAjixkuIcDK
    xygEtkVuunWqi4dd

    • Tira via delicatamente la copertura anteriore dalla Wii.

    • Usa un paio di pinzette per scollegare il connettore in plastica del cavo dei LED dalla scheda madre.

    • Rimuovi la copertura anteriore.

    surprisingly, this was the trickiest step for me. I almost completely mangled the wires when my tweezers slipped as I was attempting to remove the connector.

    rbelknap -

    I removed it with a spudger, gently lift from each side until it pops out.

    For those reassembling

    line up the pins push it in with your spudger gently until it's in. Then line up the front plate, push gently, confirm everything is where it should be and push firmly, I found it needed a strong push to sit flush with the other body panels.

    James middleton -

    I ended up using needle nose pliars on this step.

    Awesome detailed guide made this very easy, thank you author!

    Glenn Woodard -

    Can someone direct me to what I need to do? My tweezers slipped and I cut one of the wires on the connector. Where can I find a new Y plug for the wii?

    jaredslaweski -

    I also broke my wire trying to use tweezers. I should have known better. I use (normally do) a spudger on one side and my fingernail on the other to gently pry these types of connectors out. I ended up buying a replacement faceplate on ebay.

    Tyler -

    This was the hardest part for me. I tried using my fingernails, two different tweezers, and needle nose pliers, but I ended up cutting both the wires. Anyway, I put some electric tape over the exposed wires and just reassembled the system. Funny thing is that the LED still works and I have not noticed any difference. I'm not sure what those wires did, but they seem to not be important.

    Nick -

    For people still wondering after all these years, :), The connector is for the blue leds around the dvd when loading and unloading a disk.

    Niels -

    I also broke off the flimsy wires at the connector. To NOT break the wires, alternate pressing on the right and left sides of the connector with a small flathead screwdriver. Be patient, it will eventually work itself free. There isn't enough to grab onto with the tweezers and you'll only succeed in having them slip off, grab the wires, and yank the wires out.

    Good news is that if you do rip out the wires, no worries... I didn't reconnect them and the unit works just fine. I have no idea what those wires are even for. Power LED continues to work no problem.

    jasendorf -

    I used two small flat head screw drivers, one on each side to pry out the connector. This created less pressure from me and reduced my chance of cutting the wires.

    mulkey -

    This guide is really marvellous - works a treat. But I would definitely recommend needle nose pliers for this step rather than tweezers. It's really easy if you use pliers and potentially damaging if not, and you get it wrong. I had one sniff at it with tweezers then immediate nipped out to the garage for my pliers!

    thepitcanary -

    Definitely a tricky step with that connector. I also cut broke the wire accidentally and was going to just give up trying to fix the Wii. However, as others stated the Wii works just fine, including the lights. I do wonder what those wire are for.

    darcaesar -

    I also had a lot of trouble trying to get the connector off with tweezers. Ended up leaving it attached. It does not really get in the way of remaining steps.

    Ron Even -

    Needlenose pliers did the trick for us!

    Ron Cormier -

    Needlenose pliers did it for us!

    Ron Cormier -

    You can save yourself some trouble at this point and skip the rest of the disassembly: See that green tab to the left of the sd card slot? THAT’S the wifi board (and that green tab, in hindsight, seems designed to make it accessible without taking apart the whole device, don’t you think?) A little careful spudging, and you’ve got it out, ready to replace! (There’s a guy who shows the process on youtube, if you want to review first)

    Will -

    I got the connector out ok thanks to the suggestions here, but I couldn’t figure out how to reattach it. In the end, I just kind of threw it in and it worked fine.

    Christine Wittmer -

    Very clear instructions - thanks! Faceplate needed replacing after one of my son’s friends accidentally kicked it across the room. $10 bucks to fix, thanks to ebay and these instructions. I’d never heard of a “tri-wing” screw before.

    LInda Rawlins -

    I just left the connector alone and kept it connected while working on it. There is enough wire to allow you to do what you need if you are just careful not to snag it on anything.

    Michael Payne -

    I, too, left the connector attached and just took care that the loose faceplate did not stretch the (not crucial) wire when moving rest of the Wii.

    Matti Haveri -

    This was the trickiest part, I almost broke the wires using tweezers and pliers, so instead use a flat end screwdriver to pry it out, when putting it back in use needlenose pliers to start it then use your fingernail to go the rest of the way.

    grace nicosin -

    After I got the connector out I noticed the little locking flap on the top side of the connector. I think prying this first is the key to easier removal.

    Will B -

    Anyone know of a method to replace the connector if you end up breaking the wires? Bits of wire are stuck in the white plastic connector, so I'm wondering if I can buy a connector online somewhere without replacing the whole face plate. Thanks :)

    Bronze Owl -

    I severed both wires. If you want to avoid removing the connector, you can lengthen the two wires by unserpentining them from the wire holder that's in the cover.

    Griff Derryberry -

    Make sure there is no SD card in your unit before pulling this off, otherwise it'll get stuck and you could snap your sd card in half!

    carlosahiciano -

  7. GZYIO2iirMcnTBQL
    GZYIO2iirMcnTBQL
    PbD4A5VBcsLJ1tYW
    GAwGa1hgtnKuiPFs

    • Apri la porta protettiva delle prese dei controller finché è perpendicolare con la cornice nera delle prese.

    • Tira verso l'alto la porta protettiva per separarla dalla copertura esterna.

    • Ripeti questa procedura per la porta protettiva della scheda di memoria.

    I wasn't able to reassemble the socket covers when I reversed this step..

    While disassembling, I did as instructed pulling the covers upwards when they where perpendicular to the black cover plate but Nintendos instructions says to open the covers (so that they are perpendicular to the black cover plate) and then gently push the covers towards the console with your fingers on the outside of the cover opposite side of the hinges so that the cover hinges will pop out and then lift it up..

    I'm not sure, but I think ignoring Nintendos instructions caused the hinge sockets to break for me, so replacing the controller/memory card socket covers will not work.

    When reassembling, the cover can be placed perpendicular to the black cover plate and rest on the plastic hinge with a few millimeters between the cover and the console, and then they can be pushed down to click in place. But in my case they keep falling all the way down since there's no resistance and nothing to click into.

    Martin Johansson -

  8. 5gH2SPFFYhQLXoZ2
    5gH2SPFFYhQLXoZ2
    UGivIc4L2ejQD3mv

    • Svita le due viti a croce Phillips da 4,1 mm rimanenti sul bordo superiore della cornice in plastica nera delle prese dei controller.

    • Solleva la cornice dal bordo lungo più lontano dalle prese dei controller e rimuovila dalla Wii.

    The 3rd hole is in step 3.

    James middleton -

    The bezel is the flat black plate. Removing the three screws that secure it allows you to remove it. If your cube is like mine, this plate likes where it lives and, even with the screws removed, managed to stay in situ without anything holding it.

    Dennis Johnston -

    Beware. The edge of the bezel, opposite these screws, has clips. Lift the bezel from the top edge, where the the screws are, to avoid breaking these clips.

    Dennis Johnston -

  9. gVM15IknBqyYY5sO

    • Svita le due viti a croce Phillips da 5 mm sopra le prese dei controller.

  10. BCYHR1CYxUkGSIAM

    • Usa uno spudger in metallo per rimuovere le tre coperture evidenziate delle viti incastrate sul lato della Wii.

  11. vrshxvpywjLhpKLT

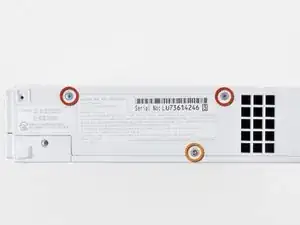

    • Svita le seguenti viti:

    • Due viti a croce Phillips da 5 mm

    • Una vite Tri-Wing da 8,2 mm

    Instead of the Phillips screw on the left I had a very small one under a cover to the left of that!

    Donna Vought -

  12. jSyMwWqvjWCBPTxE

    • Usa uno spudger in metallo per rimuovere i due piedini in gomma incastrati sulla faccia inferiore della Wii vicino alle prese posteriori.

  13. UVFQ6pJvVMHKKHje

    • Rimuovi le due viti Tri-Wing da 8,2 mm nascoste sotto i piedini appena rimossi.

    • Puoi utilizzare un cacciavite esagonale da 4 mm per estendere la punta all'interno delle rientranze e raggiungere le viti.

    had a little trouble with theses screws. they were just barely too deep for my 54pies bit driver kit to reach. I ended up inserting a small wad of paper into the shaft of my driver so the tri-wing bit stuck out far enough to engage the screw. (I used the tweezers to remove the paper when I was done) :)

    rbelknap -

    I can confirm, this works fantasticly!

    Thank you

    James middleton -

    When putting the screws back in hold the tip still with the screw and carefully drop it in.

    James middleton -

    Thank you rbelknap, this is excellent advice for those using the ifixit branded driver.

    George Squires -

    You could also use the 4mm nut driver in the iFixit kit to turn the tri-wing driver. This will give you a little more reach.

    Edward Tucker -

    How is no one talking about the included 4mm nut driver trick at Edward Tucker mentioned?! That is genius! Thanks mate!

    Zabuza -

    That's the idea that I needed. Agree with Zabuza.

    cwdick -

    Bingo. All of the other comments were unnecessary.

    Tony Shannon -

    Because it doesn't come with the screw driver in the kit. Only has the tri wing and the cross tips.

    Craig Goodsell -

    This paper wad trick totally worked for me too!

    anonymous 779 -

    Standard Tri-Wing bits will NOT fit into the holes. Make sure that you get one of the tool kits from iFixit (I just ordered the Mako Driver/Bit kit with 64 bits ) - the Tri-Wing bits in this kit have a narrow shaft that allows it to reach deep into narrow holes like these on the Wii . (Disclaimer - I have no association with iFixit).

    dave whale -

    I just sawed off a bit of the shank holder from the iFixit tool, in order for the bit to go deep enough into the case.

    The tool still works fine.

    Alan Walker -

    Thanks for the paper wad trick advice! Worked perfectly with my Wii

    Finder352 -

    The 4mm driver was the exact fix for this problem, no mods necessary

    Tony Shannon -

  14. mymDLxDWlRsB4vHW

    • Solleva la copertura esterna dal corpo della Wii.

    This step could use at least another picture from the backside so it's clearer what comes up and what stays down.

    Jose Vazquez -

    I used a spudger around the edges of the outer case to gently ease it upward since I could not lift it out with my fingers. Then it came right out.

    Marko -

    Good tip. Having, in the past, broken pieces that required a little persuasion, I attempted to "lift" the outer case, but it wouldn't budge. Using the spudger to persuade it worked like a charm. Also added this suggestion to Step 18 "Lift the drive shield."

    Dennis Johnston -

    hey marko that really helped me thanks\. als if you need help figuring which side is up, its the one with the nintendo engraving on it

    Aryan Garg -

    A fan filter fell out at this step how do you put it back?

    Edit: I figured it out it was from the side intake vent. Just line up the two notches with the pegs in the case to hold it in place

    Darren Jones -

    This is an awful guide

    Alexander D Schaefer -

  15. SqZI2B154SVW1ZJc
    SqZI2B154SVW1ZJc
    BW5UKvFUfK4ZVExC

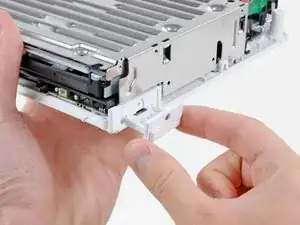

    • Svita la piccola vite a croce Phillips che fissa la porta della batteria alla copertura inferiore.

    • Questa vite resterà ancorata alla porta della batteria.

    • Sfila la porta della batteria dalla Wii.

    • Il sistema si resetterà una volta che rimuovi la porta della batteria.

    • Questo è un buon momento per cambiare la batteria CR2032 se non lo hai fatto di recente.

    The screw on the battery door of my Wii required a Phillips #000 screwdriver, which is not listed in the required tools.

    Ben -

    The screw is a PH0000 (quadruple zero) requiring an exceptionally small Phillips screwdriver to remove. If this is your first time in here in a while, this may also be a great time to change the CR2032 battery.

    Steve Bonds -

    I was able to use the ph0 no problem.

    Darren Jones -

    I used a 00 with no problem.

    julie -

    What does this battery do? I never knew there was a battery inside of the WIi.

    Stephen Thornhill -

    thje battery is used to maintain timwe and date etc

    Electronik -

    Where can we get a new battery from?

    Chriul Rg -

    You can get a CR2032 batterie in your local supermarkt. It is recommended to change it after 5 years, but I have seen devices run for 15+ years.

    Playa -

    my wii survived 15 years already with the same battery

    Bas Molendijk -

  16. gObGvUh6TpHn2gXb

    • Svita la vite Tri-Wing da 8,2 mm nascosta sotto la porta della batteria.

    Note - this screw is a machine screw (e.g. not self-tapping). It screws into a hex nut, and that nut is captive in a slot in the case. When reassembling, ensure that this hex nut is still captive, and has not migrated out to other areas within the Wii.

    dyanetti -

    The other drive cage hole is screwed in step 11, continue to reassemble.

    James middleton -

  17. iIKijEXEWbyxr4mJ

    • Svita le due viti Tri-Wing da 8,2 mm che tengono ferma la schermatura del lettore DVD vicino alle porte dei controller.

    The screw on the right for my wii just refuses to come out

    Robert Menocal -

  18. XlIvLipMQrrNcTnm

    • Solleva la schermatura del lettore DVD e rimuovila dalla Wii.

    Be careful not to cut your fingers on the sharp edges of this metal shield. My daughter actually scraped enough skin to cause blood to drip off her finger. Then we noticed her skin stuck to the metal edge. Yuk.

    J Smith -

    True story I did it to myself lol

    James middleton -

    Does the dvd shield need to be there? I want to remove it but im not sure if i should

    Kadamo -

    If the drive shield needs a little extra persuasion, us a spudger around its perimeter. Also helps prevent cuts when force meets resistance on this metal shield.

    Dennis Johnston -

    There are spring steel tabs on both sides.

    Dennis Johnston -

  19. ZS6nMai5uZUNE6mZ

    • Svita le quattro viti a croce Phillips #1 da 9 mm che fissano il lettore DVD alla copertura inferiore.

    The two left hand screws were very difficult to relocate during reassembly. I was coaching my 8 year old through this, and this was probably the only step that he couldn't do. We dropped these screws several times, and used magnets to retrieve. Miniature needle-nose pliers gripping the 'washer' surface of the screw were too wide. We managed to purchase the 'button head' of these screws with the needle-nose and drop the screws into their hole, and push with the phillips until secure. I would like to hear how others install these screws, please.

    dyanetti -

    I had the same problem as you and eventually found an easy way round it. I wrote this to be added to the instructions but it was rejected: "Once the DVD drive has been removed, remove the 4 rubber washers from the screws removed earlier and insert them into your new DVD drive. Because two of the screws are difficult to reach, it is best to insert these two screws into the washers and then slide them into place ready for securing to the base plate".

    The rubber washer holds the two screws roughly in position, you can then reach them with your screwdriver through the two holes (about an inch away) and finish tightening them up.

    Gary -

    For the two screws at the front of the chassis, use a three-pronged parts retriever to lift them out after you unscrew them.

    Walter -

    Helpful tip: Use a magnetized screwdriver for the 2 screws nearest the DVD face because they are set in deep sockets

    Blake Minghelli -

    During reassembly, it can be tricky to position the recessed screws. To temporarily magnetize your screwdriver, rub the tip against a magnet for 5-10 seconds. (A refrigerator magnet will do.) You should then be able to put the screw on the tip and gently lower it into position.

    Matt D -

    Thanks - the refrigerator magnet trick worked for me,

    Jim Allen -

    Another method for getting the front screws back in is to insert a small pair of tweezers through the DVD slot to guide the screw in. I just dropped the screw in between the tweezers which held the screw just above the hole. Then I was able to use the phillips screwdriver to guide the screw into the hole and screw it in. Done in just a few seconds.

    Another option would be to stick a dab of hot glue on the screw to your screwdriver and then when the screw has been driven home either the glue stays on the driver and is easily removed or it stays on the screw and you just pull it off with tweezers or needle nose pliers.

    accts4mjs -

    The screwdriver provided in the kit by ifixit is a magnetized screwdriver and works perfectly!

    mulkey -

    If you are disassembling your Wii because, say, a two-year-old has shovelled pennies into it (yes, that was me) you will also need to partially disassemble the drive itself, which is not covered in this guide. Luckily it's really easy. Unscrew the 4-5 larger Philips/cross head screws on the top of the frame (NOT any of the smaller darker ones) around the edges, and the frame on top of the drive will lift right off. Be careful as there is cabling running to it, so don't yank it or pull it too far off. You will now be able to get any coins or other foreign objects out.

    thepitcanary -

    I didn't have a magnetic screwdriver, so I applied a tiny amount of fabric glue to the head of each screw, waited a minute for it to start to harden, inserted my non-mag screwdriver into the screw head, and the screw stuck to the screwdriver long enough to insert it into the hole.

    Lee Crooks -

    Be advised that the posts that these screws go into are very fragile and may even break. Make sure to get the little plastic pieces out if you over tighten them or they are just brittle and broken to begin with. The screws seem to be long enough to work if you do break the posts off completely.

    Michael Payne -

    I needed a size 1 Phillips screwdriver for this step.

    julie -

    Thanks, I will include it in the guide

    Angel -

    Be careful with these screws - they seem to be quite malleable and easy to strip.

    Electronik -

    I ended up using an extra fine tweezers from a watch kit, stuck it through the vent opening "inside" the screw area and acted as guideposts to thread in. Only because I didn't have a magnet for the screw.

    kwjayhawk -

    I guess this is a warning applicable to anything that has to do with plastics, but this step in particular: Be extra careful not to overtighten these screws when reassembling the unit because the plastic sockets will easily break/shatter..

    Martin Johansson -

  20. qfTvdHXbpHGqSfQ2

    • Solleva il bordo del lettore DVD opposto alle prese dei controller quanto basta per accedere ai cavi sulla faccia inferiore.

    • Tira attentamente il cavo di alimentazione del lettore DVD da sotto la copertura in plastica vicino al dissipatore.

    When reversing these steps to reassemble the Wii, at this point it is possible to do a quick test before screwing the drive to the case. This will save you a lot of time if something is wrong.

    Don't touch anything you don't have to while the case is off.

    Carefully plug the power cable into the back of the Wii, then use a screwdriver to gently press the white button next to the glowing yellow LED on the front. You should hear the DVD drive power up and whir. Then press the white button again, wait for the yellow light to come back, and unplug the Wii.

    If you didn't hear the drive start up, most likely one of the two ribbons isn't connected to the drive correctly. Doublecheck the previous 3 steps.

    Matt D -

  21. mGYaCvwpJARMNUGH

    • Sfila il cavo di alimentazione del lettore DVD dalla sua presa sul lettore stesso.

    When reversing this step, be careful re-inserting the connector. The pins are very delicate and if you aren't at the proper angle, you can bend them and ruin the drive.

    jisakoff42 -

    The exact thing happened to me just now; I reinserted it at a (very slight) angle, and bent one of the pins at the end of the socket. Luckily, I was able to straighten it back up with a sewing needle. I made sure the spacing was consistent with the rest of the pins, and that I reinserted the connector as straight as I could, so it doesn’t happen again.

    Jose Olarte III -

  22. bg3hTQoBKJTJst1c
    bg3hTQoBKJTJst1c
    wW2XLfVLGFKgkSyT

    • Usa le unghie per ruotare verso l'alto l'aletta di bloccaggio del connettore del cavo a nastro del lettore dischi.

    • Assicurati di agire sull'aletta di bloccaggio e non sul connettore.

    • Sfila il cavo a nastro del lettore dischi dalla sua presa.

    • Rimuovi il lettore dischi dalla Wii.

    When reversing this step, make sure the ribbon is all the way in. For some reason I found positioning it with my replacement drive was much harder than with my old drive. The gentlest tug after lowering the brown clip would show that the ribbon was not actually being held tightly. I thought for a while that the clip itself was broken, but eventually I got it to hold the ribbon correctly.

    Matt D -

    Be careful with this step. I too had difficulty re-inserting the ribbon. I even popped off the brown clip and thought I broke it. Thankfully it snapped back into place.

    Dana Kennard -

    It is difficult to tell, but be aware that the brown piece is the retaining flap, not the light piece , which is the actual socket.

    Dan Neunaber -

    I had to use Kapton tape. I couldn’t get the clip back on.

    Jim Allen -

    This was the trickiest step for me. Take note of how the ribbon is configured before you loosen the clip to help you replace it with confidence in the right way.

    Ping Wu -

    Careful! When reinstalling, I think I bent and broke the ribbon. The Wii doesn't respond upon power up - I think because it doesn't see the drive.

    Steve Bennett -

  23. Y4NSkMoD3Cuglj3h

    • Utilizza delle pinzette per sollevare il connettore della ventola e rimuoverlo dalla sua presa sulla scheda logica.

    • Assicurati che le tue pinzette siano fissate al connettore della ventola, non alla presa sulla scheda madre.

  24. wqvDqwjeY6D6ttxA
    wqvDqwjeY6D6ttxA
    2JspZVMimi2pNhVT

    • Rimuovi le due viti Phillips da 10 mm che fissano la ventola al convogliatore ventola.

    • Rimuovi la ventola dalla Wii.

    There may be a removable metal "comb" under the fan shroud, remove after removing the fan shroud when disassembling, and replace before inserting the fan shroud when reassembling: it is held in place with same screws as fan shroud.

    Gregory Salton -

  25. 3R6UEtmCmnUDglQK
    3R6UEtmCmnUDglQK
    suYtNLiM4IhZWyT2

    • Utilizza la punta di uno spudger o un altro strumento appuntito per allontanare con attenzione uno dei piccoli perni di bloccaggio in plastica nera attaccati al convogliatore ventola dalla scheda dell'antenna Wi-Fi.

    • Rimuovi l'antenna Wi-Fi dal convogliatore ventola.

  26. sEnLTVQulfqStjOq

    • Rimuovi la singola vite Phillips da 10 mm che fissa la seconda antenna Wi-Fi sulla parte alta del convogliatore ventola.

  27. COVLSiYFuxyZu5Sc

    • Rimuovi i due pezzi di nastro adesivo che fissano il secondo cavo dell'antenna Wi-Fi alla staffa in plastica vicino al dissipatore di calore.

    Some newer models may have the Wi-Fi antenna wires taped to the top of the plastic bracket instead of the front as pictured.

    Jabu -

  28. lPCRZMfYK4yJlrZ5

    • Sfila attentamente entrambe le antenne dal telaio della Wii e mettile da parte.

  29. TISNmeBuJQxQusHF
    TISNmeBuJQxQusHF
    C2EKxmndWHPkmLBT

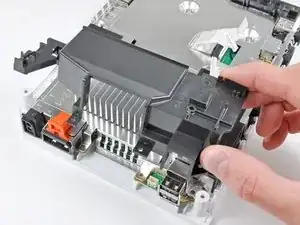

    • Rimuovi le tre viti a croce Phillips da 10 mm che fissano il convogliatore ventola alla Wii.

    • Solleva il convogliatore ventola dal dissipatore di calore e rimuovilo dalla Wii.

    Mine (RVL-CPU-01) Is probably The first revision, and mine had another EMI Shield Under the fan shroud. I’m Guessing that they removed it in later revisions. It just fits under the shroud normally. For Pics, here is a link. Images are there soon.

    https://sites.google.com/site/ninteardow...

    Lucas Hoekstra (Lucas9810) -

  30. evvpEFWhrNQNvkUa
    evvpEFWhrNQNvkUa
    UYDrgOYGcQKKl2OV
    soMNExAXauR3ZPPG

    • Rimuovi le seguenti sei viti che fissano le EMI fingers al pannello inferiore:

    • Quattro viti a croce Phillips da 7 mm

    • Due viti a croce Phillips da 11,3 mm

    • Rimuovi entrambi i set delle EMI fingers dalla Wii.

    Actually, at east for me, these “fingers” were beneath the motherboard cover, and the screws could be removed at the same time as the ones on step 33.

    shaitanpt -

    shaitanpt thanks for pointing this out! Mine were also beneath the motherboard cover, and the first set of "fingers" were actually two small brackets between the controller ports, rather than one long bracket over all of them.

    Cynthia -

  31. r1oFWvya22CJVFhY
    r1oFWvya22CJVFhY
    6P1nxLfWGRO1JwoC

    • Rimuovi le seguenti tre viti:

    • Una vite a croce Phillips da 7 mm

    • Due viti a croce Phillips da 10 mm

    • Rimuovi la staffa dalla Wii.

    Be careful not to drop the 7 mm. I did and I spent 10 minutes trying to roll it and rattle it out from under the shroud, until I figured out that you can just remove the fan and shake it out of the bottom

    Curt Swalley -

  32. asbrrw63CRCVKIpt
    asbrrw63CRCVKIpt
    AGQcRXFIx2MkTnfI
    5DfaHnGZ5Qyoi4BK

    • Rimuovi le tre viti a croce Phillips da 10 mm che fissano la staffa nera al pannello inferiore accanto alla parte frontale della Wii.

    • Solleva leggermente la staffa e utilizza l'altra mano per tirare via la clip di bloccaggio da dove le antenne Wi-Fi entrano nella copertura della scheda madre.

    • Rimuovi la staffa dalla Wii.

    • Assicurati di non perdere il piccolo dado quadrato debolmente tenuto dalla staffa nera in plastica.

    For reassembly: I believe the nut is for the CR2032 battery

    Jack Bailey -

  33. OIGxembVqWfSWddN

    • Rimuovi le rimanenti nove viti a croce Phillips da 7 mm che fissano la copertura della scheda madre al pannello inferiore.

  34. bsLLYWppWnGQX2Ha

    • Rimuovi attentamente la copertura della scheda madre dalla scheda madre, prestando attenzione ad eventuali cavi che possono incastrarsi.

    • Su alcuni modelli, un pad termico per il wireless chip è attaccato al di sotto della copertura della scheda madre. Assicurati di sostituirlo quando rimonti il tutto.

    There is a thermal pad on the WiFi chip as well! NB this because disassembling past this point requires you to also reapply a thermal pad to the WiFi chip.

    Jonatan Noponen -

    When reassembling, put the wifi fingers near the battery compartment beneath the motherboard cover before screwing the cover back on. Can someone add "thermal paste" to the items needed to the top of the guide?

    Gregory Salton -

  35. dRIsCSOMHZsndDMy

    • Rimuovi le quattro viti Phillips da 11,3 mm che fissano il dissipatore di calore al pannello inferiore.

  36. fDSOqBaOtyuZfDbp

    • Solleva il dissipatore di calore dalla scheda madre.

    • Quando lavori vicino ai processori esposti, assicurati di non toccare i pad termici se non hai intenzione di sostituirli. Sono fragili e possono rompersi facilmente. Se invece intendi sostituire i pad termici, puoi usare la pasta termica.

    Would it make sense to use thermal compound instead?

    BRUCEL86 -

    I would recommend to still using thermal pads, because there are big gaps between the heatsink and the chip that thermal paste will not spread and fill the gap.

    CCX Cheng -

    K5-Pro is also a solution I am happy with

    Playa -

    You need to use the pads. I would not recommend paste. The pre-smashed dimensions of the pads are 1.5mm thick and one is 20mmx20mm and the other is 15mmx15mm. (so, two 20x20x1.5's would have you covered easily.) Also missing is the torque on the heatsink. However there was a lot of effort on the pictures and I appreciate that!

    david1024 -

    So what is the torque spec on the heatsink then?

    Alex Dorman -

Conclusione

Per rimontare il tuo dispositivo, segui queste istruzioni in ordine inverso.

Autore

Andrew Bookholt

585555 Reputazione

12 commenti

This guide also works great as a thermal paste replacement guide for the Wii, just remove the old thermal pads and clean off the heatsink, CPU, GPU, and WiFi board, and apply Thermal Grease to the CPU, GPU, And WiFi board.

Lucas Hoekstra (Lucas9810) -

Use non-conductive thermal pads, 20x20x1.5 and 15x15x1.5 are what you need.

david1024 -

Worked great! Was able to reapply thermal paste on my wii. It’s working great so far!

chris morales -

Can we use Thermal Paste instead of Thermal Pads?

Manuel E. Carballo Jr. -

Yes, thermal paste can be used. I strongly recommend Thermal Grizzly Kryonaut, as it’s the second-best-performing non-metallic thermal paste on the market (the only better performer is Kryonaut Extreme).

Ethan Zuo -

I just finished this guide, and replaced with Noctua NT-H1 thermal paste. I needed a good amount, but I had a 10g tube and used hardly any of it. Maybe 4 or 5 desktop cpu applications worth. I let it run for while and it definitely seems like a lot more heat is venting out now compared to before, though I did clean everything as well. But there is no way its somehow worse than the gross pads that were on there.

Evan Miner -

What are the dimensions of the thermal pads that we should use?

Keir Baker-Mansour -

I used an m.2 thermal pad it’s pretty much the same size as the original and it works well

Kyler Strang -

You should have gone into more detail on the thermal paste/pads. What thickness should be used for replacement? There is a decent gap between the CPU/GPU and heatsink, are you SURE thermal paste can be used since there is no direct connection?

samuelmcw -

Had to use paste when I did it. There is 100% no way it'd work long-term though as there's too much space between the heatsink and the die.

Keir Baker-Mansour -

I know this is old, but the pads are 1.5mm thick.. one is 20x20 and the other is 15x15. Don't use paste, you'll be re-applying it every few months as it runs out the side and makes a mess of the PWB.

david1024 -

I would not recommend paste. You need to use the pads. they are 1.5mm thick and one is 20mmx20mm and the other is 15mmx15mm. (so, two 20x20x1.5's would have you covered easily.) Also missing is the torque on the heatsink. However there was a lot of effort on the pcitures and I appreciate that!

david1024 -
