Sostituzione gruppo copertura iPod Nano 2a generazione

Scritto Da: iRobot
  • Commenti: 29
Sostituzione gruppo copertura iPod Nano 2a generazione

Difficoltà

Difficile

Passi

14

Tempo Necessario

20 - 30 minuti

Introduzione

Il case in metallo colorato.

  1. uRvrnZJYQ4QXAueM

    • Prima di aprire il tuo iPod, assicurati che l'interruttore Hold sia nella posizione bloccata.

  2. XvqkhFsGQbNwaKGg

    • Infila attentamente uno strumento di apertura per iPod nella fessura tra la copertura in metallo e il bordo superiore in plastica bianca.

    • Solleva il bordo superiore dell'iPod. È incollato con un leggero adesivo, quindi dovrai fare un po' di forza.

  3. fAksAYvQta6HdPGp

    • Mentre rimuovi il bordo inferiore, assicurati di non piegare la plastica attorno alla porta di carica.

    • Infila attentamente uno strumento di apertura per iPod nella fessura tra la copertura in metallo e il bordo in plastica bianca.

    • Solleva il bordo inferiore dell'iPod. È incollato con un leggero adesivo, quindi dovrai fare un po' di forza.

    I tried using a heat gun to soften the glue, but it ended up melting the white plastic part.

    gordonhamachi -

    I used an Avid Power heat gun at setting 3 heat and 2 fan and did not melt it. I pointed it at the metal case not the plastic thanks to tip above and kept my hand wrapped around it so I could tell how hot it was getting. If it was too hot to keep my hand there then I deemed it would be too hot for the plastic. That seemed to do the trick and loosen the adhesive just a little bit to help with extraction. Thanks gordon.

    N. Watson -

  4. LoNuLUdhfZUCkMTN

    • Svita le seguenti due viti:

    • Una vite a croce Phillips #00 con una testa larga vicino alla presa jack.

    • Una vite a croce Phillips #00 con una testa più piccola vicino al bordo dell'iPod. Questa vite si spana facilmente, quindi assicurati di premere con decisione sul cacciavite.

    On the iPod I worked on, #000 Phillips was the correct bit. Not #00.

    Eric -

    my small screw is completely stripped, what can I do?

    wittyahole - -

  5. 2Lb5LGRf1xw5lHuh

    • Usa uno spudger in metallo per rimuovere attentamente la presa jack dalla copertura. NON rimuovere del tutto la presa jack dall'iPod, in quanto è ancora collegata con un delicato cavo a nastro alla ghiera cliccabile.

    I used electrical or beading tweezers that were in my kit to remove headphone jack, seemed to work well also.

    N. Watson -

  6. MSaSqU2lCIRIUAUn

    • Sfila la presa jack dalla copertura finché il suo alloggio in plastica non è più tenuto fermo dalla copertura in metallo.

  7. DmhPA1tLKiKYVtba

    • Svita la vite a croce Phillips #00 appena scoperta sotto la presa jack. Stai attento: questa vite si spana facilmente.

    I logged this as a success, but I actually wound up stripping the screw on this step (I printed out earlier instructions that didn't have the warning). Reassembled it without said screw and I'm hoping for the best!

    anja -

    The screw on this step also stripped when I was following this tutorial, despite being very careful and taking the time for everything. This really happens _REALLY_ easily!

    I too reassembled the iPod without this particular screw. So far I've noticed no side-effects from this.

    Ultimately I was able to complete the whole guide and repair the Nano succesfully! :-D

    wil -

    i have also stripped this screw in this step. can i change the display without removing this screw? any help is greatly appreciated

    Lori Baldridge -

    I used a Phillips #000. No issues with the screws.

    JPagan -

    Also used #000 on all screws around bevels based on comments with success, thanks peeps!

    N. Watson -

    I stripped my screw on this step, i did everything method from google. But stuck, how can i solve it?

    Rakai -

    I agree. You want to use a Philips #000 here.

    Sam Dissanayake -

    I tried using a Phillips #00 and almost stripped it, but I got it out with a 1mm flathead (all of my other Phillips drivers were too large)

    David Harrell -

  8. qQSmVENkDDyeuHFH

    • Solleva il bordo inferiore fuori dall'iPod.

  9. ppFWngX3ARNScMo6

    • Svita le due viti a croce Phillips #00 dal bordo superiore dell'iPod.

    Had to pick out resin with dentist tool to enable Philips driver to engage screw heads.

    Need to be very slow and careful with sharp end of dentist pick.

    afdelaurier -

    Use a Phillips #000.

    JPagan -

  10. rQHKYyPaWHeWTVcf

    • Il connettore evidenziato collega la ghiera cliccabile e la presa jack alla scheda madre. Questo cavo deve essere scollegato dalla scheda madre prima di continuare.

  11. RcKwNqm3QIiXQmbF

    • Usa uno spudger per scollegare il cavo della presa jack dalla scheda madre. Dovrai fare leva delicatamente sul connettore verso la faccia anteriore dell'iPod (o l'alto, se preferisci: il connettore è come un mattoncino LEGO®) fino a scollegarlo dalla scheda madre.

    • Suggerimento speciale per il rimontaggio: spingi il connettore all'interno finché non è sopra la sua presa sulla scheda madre. Quindi infila uno strumento sottile sopra il connettore e spingilo verso il basso sulla sua presa sulla scheda madre.

    When reassembling, the jack connector cable broke :'( iPod woking fine, with a new battery.... but no more sound. Grrrr

    TheRV -

  12. KJHIZdv3GHgOjOfk

    • Usa uno spudger per spingere la scheda madre attraverso l'iPod e fuori dalla copertura. La ghiera cliccabile e la presa jack dovrebbero restare nell'iPod.

    • Stai attento a non far impigliare la ghiera cliccabile o la presa jack nella scheda madre mentre la rimuovi con lo schermo.

    The headphone ribbon and the click wheel is on the top side of the cover, so be sure to apply force toward the down side to avoid scratching the click wheel's PCB.

    [deleted] -

    Before pushing I carefully used the spudger to move the top bezel (with the hold switch) out of the case first. Be careful, it’s got a tiny ribbon cable. But getting that out first made the logic board slide out relatively easily.

    jack.jansen -

    I really appreciate that tip! Couldn’t get mine out until I did that and it slid right out

    Timothy -

    If you have a swollen battery, as I did, it was not possible to remove logic board. My case was visibly expanded near the top making everything inside locked in position. I did the disassembly before any part purchases. If I got to the point where everything came apart nicely, I'd invest in the parts. Thank you ifixit.com for the comprehensive instructions and parts for this procedure.

    armcomdes -

    @armcomdes - well done! I wish i’d read your insight before ordering my replacement battery. My nano 2g battery is swollen, and only a sledgehammer could move any part that it now locks in place. So long, nano. I’ll try to return that sealed battery.

    Your insight should be at the top of all related nano pages: swollen battery? iChuckit is your only real option

    dantegd -

  13. sbWaUe4CAWRpUmEE

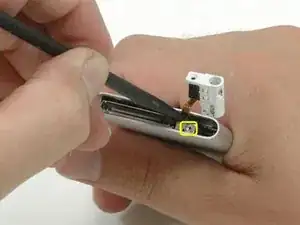

    • Mentre rimuovi la scheda madre, metti la punta dello spudger nel foro da dove hai rimosso la vite e spingilo fuori delicatamente. La fessura lo terrà fermo e diminuirà le possibilità di danneggiare la tua scheda.

    My battery swelled and it was not possible to push out. Looks like I cracked the screen trying to free it up inside the case.

    SEAN Tanton -

    It is possible to remove a swollen battery although I think the correct term is definitely birth a swollen battery, as I just did 1 successfully and 1 unsuccessfully to the rest of the ipod, but still removed! If the battery is swollen, in most cases the screen may already be cracked or will get that way in order to get it out. Very poor design to retrieve Li-ion batteries for recycling. The battery that I was successful in getting out without damage was actually much more swollen than the other one but I learned from the 1st 1. I used a carpentry nail set so I did not put the tip inside the hole but on that piece of metal, which is quite strong. I put a piece of paper over the headphone connection to add some protection in case my nail set slid off while pushing. It took at least an hour or more, probably more but I had to take lots of breaks. Most of the time seemingly not budging it at all. My hand hurts now where I was gripping the ipod.

    N. Watson -

    Cont.—-I would love to make my own pictorial about it because I had to push on it in such a way that I could still use my headlamp to see what I was doing and control where the nail set was pushing and not let it slip out of place. Before I started pushing I also used 1 of my blue plastic triangles to wedge some coconut oil down both the battery side and screen side. I really do think that helped a lot and may have even been a key factor so if anybody has a more appropriate lubricant for this type of electronics, I am open for suggestions. I wouldnt want to do it again but it was very beneficial to learning about how much force it can take and discovering some other tools that worked better in that situation. Also taking apart an ipod that didnt have a battery issue was so easy, I feel like a master now, lol.

    N. Watson -

    my ipod is old and the screen is white (it was my moms). also can you sum this down im olny 10

    Danielle Gatewood -

    It just means he wants you to use whatever tool you're using and push the rest of the iPod out via pushing through that hole, good luck!

    Finn Brandt -

  14. qUNJQJo6gTtYj21j

    • Rimuovi del tutto lo schermo e la scheda madre dalla copertura in metallo.

    • Durante il rimontaggio, assicurati che la batteria sia ben posizionata. Se è troppo stretta, il bordo dello schermo graffierà il vetro dall'interno.

    When sliding back the logic board, watch out not to put too much stress on the side with the screen and the window, cause it may lead to annoying stripes on your window

    Jasper Jonkman -

    reassembly : use a small dry paint brush to remove dust and crime from display screen to avoid spots .

    afdelaurier -

    On my nano, step 13 there is no screw on the yellow indicated spot, instead there is a screw deep in the housing below the headphone connector on the side

    Grit -

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
