Sostituzione pulsanti Xbox One Wireless Controller

Scritto Da: Garrett George
  • Commenti: 80
Sostituzione pulsanti Xbox One Wireless Controller

Difficoltà

Difficile

Passi

14

Tempo Necessario

30 minuti - 1 ora

Introduzione

Questa guida ti insegnerà come rimuovere i pulsanti.

  1. nCPWIVIPPnPioQek

    • Rimuovi il coperchio del vano batterie.

    • Rimuovi le batterie.

  2. BCoOrGwESawovJpX
    BCoOrGwESawovJpX
    CYTch3arFkuHOaol

    • Suggeriamo di utilizzare uno spudger di nylon per questo passaggio. Nella foto è mostrato uno spudger di metallo.

    • Agguanta il controller saldamente per rimuovere la copertura posteriore dell'impugnatura, fai forza con lo spudger nella fessura tra la parte frontale e posteriore della copertura.

    • Stacca la copertura posteriore dell'impugnatura muovendo avanti ed indietro lo spudger. Ripeti questa operazione lungo tutta la lunghezza della fessura, tutt'intorno all'impugnatura.

    Start prying the side plate off underneath the trigger, this makes it easier to disconnect the other clips connecting the side plate to the backplate.

    Brandon -

    One you take it off, is it possible to click it back in?

    Aiden Bear -

    As long as you don’t exceed the couple tons you need to take it off you should be able to put it back.

    Brandon -

    I don’t have a squdger

    TimidFerret4982 Gaming -

    getting those handles back on seems impossible, they just dont fit as well, a gap remains even after snapping into place.

    Dont think ill be doing this in the future

    Spoutin Wyze -

    edit: wiggled the bo9ttom middlewith the handles off and somethign finally “clicked” into place for that extra 1/4 mm for the down arrow on my D-Pad to click back up into place!.

    Spoutin Wyze -

  3. NIQhMF4yRuvR3EOl
    NIQhMF4yRuvR3EOl
    JPprWqFDRTUcXoCS

    • C'è una vite nascosta posizionata al centro del controller, dietro all'etichetta.

    • Usa un cacciavite e fai un foro al centro dell'etichetta.

    • C'è la possibilità di sollevare l'etichetta se non si vuole forarla.

    • Rimuovi le cinque viti da 10 mm poste sul retro del controller usando il cacciavite Torx Security T8.

    i damaged my screws. how do i get the screws out?

    tenzin -

    wait. i just watched a video guide on ifixit's youtube channel about damaged screws. i'll try those methods.

    tenzin -

    It's a t8 or t9 security bit btw, I got the top two out with a regular T8, but the bottom two and middle needed a T9 Security bit.

    David Loper -

    All five faceplate/backplate screws in the controller I disassembled were T8 security fasteners.

    John Dziedzic -

    Am I doing something wrong because I got the tool it said I needed and got the middle screw out but the others have a bump or something in the center of the screw and it won't fit.

    kolton77 -

    The T8 is only good for the middle screw on my One S controller. The others require something bigger

    Matej Skelo -

    These requires SECURITY Torx bits (they have a cannulated hole in the driver). I don't believe the iFixIt branded driver is cannulated but you can buy a set of bits from DeWalt DWAX200 which is overkill but has what you need.

    jhighsmith -

    The driver that iFixIt sells is cannulated.

    jhighsmith -

    where do you get this dumb ass screw driver

    Jake Zweier -

    iFixit Store #IF145-027-3

    VauWeh -

    You can bypass it with a 1.5mm flathead.

    Marianne Sandling -

    thank you for this. worked for me

    Mr Anderson (Evolluisionist) -

    These screws required a T10, not T8.

    Armand -

    TR9. A $10 kit from Walmart has the bit/driver in it and extra goodies to make life simple.

    Matt Martin -

    As weird as it sounds, the top 2 came out for me with a flathead- but the bottom two and the middle one wont

    macybrooksevans -

    If you damage the middle part of the screws you can still take it out with the same screwdriver.

    Kev God -

    Thank-You :)

    Isaiah -

    needed a T8H, not easy to see.

    on a grey green xbox one controller

    Michael -

    On my 1708 controller there are two internal screws near the rumble motors that need to be removed with a T6 non security bit to remove the back cover.

    teeedubb -

  4. CN1rEMvQC3myRLyq

    • Rimuovi la copertura posteriore del controller.

  5. hWBUR3YZiAAiU3As

    • Rimuovi la copertura frontale del controller.

  6. NF1M5HTNtuRwQV66
    NF1M5HTNtuRwQV66
    YPrTGnbbQiLpdCcS

    • Puoi lasciar penzolare liberamente i motori della vibrazione fuori dalle loro prese.

    • Rimuovi la saldatura dei giunti saldati mentre tieni giù il filo rosso e quello verde sulla scheda madre superiore.

    • Rimuovi la saldatura del filo nero e del filo grigio attaccati alla scheda madre superiore.

    • Rimuovi i motori di vibrazione e mettili da parte.

    • Fai attenzione a non danneggiare altri componenti o a ferirti mentre usi il saldatore.

    • Per informazioni su come si salda, clicca qui.

    Steps 6-8 aren't completely necessary, and are very risky if you aren't good at soldering. It would seem the only reason to remove the motherboard and mess with all this soldering is just so you can reach both screws on the trigger in step 10. However, you can reach them already with a small-bodied screwdriver. Although you might have to rest the screwdriver on the black square processor to reach the bottom screw, it shouldn't damage the processor or motherboard to jimmy that screw out.

    Robert Rapier -

    like mentioned by ‘Robert Rapier’ you can skip the de-soldering in most cases,

    for example cleaning or changing the buttons is doable, but the grey and black wires are pretty short

    and wired through the inner case so it can get a bit fiddly and you have to be careful not to damage them in the process.

    If you have a soldering station around i would still recommend using it.

    yKekS Yzz -

    Thanks to above commenters. Can confirm I was able to do a button repair without soldering. Thank you all!

    Matt Hunt -

    If you peal back the Kapton tape mounting the grey/black wires there is enough play to maneuver all the boards for cleaning most of the buttons from a soda spill. Cleaning the dimple buttons on the mother board by immersion requires the de-solder...

    agzero -

  7. BY2UC6W4D1LECNDH

    • Svita le due viti Torx T6 da 7 mm che si trovano vicino alle prese dei motori di vibrazione.

    Are these just T6 screws or Torx security T6 that is cannulated?

    Kenan Vickstrom -

    The outer screws are security screws. The ones on the system boards are Torx.

    Rongwey -

  8. haVbje2oHVch2uMH

    • Afferra saldamente nella zona centrale i lati della scheda madre.

    • Solleva verso l'alto la scheda madre muovendola delicatamente avanti e indietro.

    • Sollevare la scheda madre richiederà un po' di forza.

    Hola, como se instala el software a la nueva placa base ?

    MANSONN755 -

  9. UsaBcmkMJRAaUqC4
    UsaBcmkMJRAaUqC4
    M4H2r4164KJvDEMY

    • Rimuovi le 6 viti Torx T6 posizionate sulla scheda inferiore.

    Where can I find the connectors at for the motherboard??

    lillarrypimp1993 -

    This guide completely skips the part about removing the trigger buttons. There are 2 screws per trigger that need to be removed so there are actually 10 T6 screws to remove.

    Navy Vet 2015 -

    There’s also 2 small rumble packs under the trigger buttons that no one mentioned. Someone got lazy when writing this step.

    Navy Vet 2015 -

    I didn't need to remove them. Leave the triggers on and saved some effort

    Matt Hunt -

    Hey @jasonasnes good catch! It looks like maybe they forgot to add the trigger/trigger rumble motor prerequisite, so I went ahead and added that in there. That guide makes no mention of how the rumble motors are attached, but I think they’re soldered to the motherboard, so I added a note to desolder those wires prior to removal. I think you could probably also just desolder those wires and leave the triggers in place when removing the motherboard, but I’m not certain! Hope that helps!

    Sam Goldheart -

    @sam I was able to complete this with the missing information but thank you for updating it for those to come in the future. Minus these couple of discrepancies and it’s a great guide. Yes, all 4 of the rumble motors are soldered onto the upper motherboard. Step 6 actually highlights this with the exception of mentioning the 2 small rumble motors in the triggers. You bring up a good point, it might be possible to leave the triggers in place during this process. I used this guide as a teardown instead of as a replacement so I could refurbish the plastic shell and clean the interior of my day one controller so I completely stripped mine. However, I believe that the triggers could remain in place if your goal is to get to the lower motherboard.

    Navy Vet 2015 -

    You can lift off the top motherboard without desoldering the black/red wires to the large rumble motors, just be careful because the wires are delicate enough that you can break them off at the solder joint. It’s not a huge deal if you do, because they’re long enough that you can strip the ends and have plenty of room to resolder.

    You can even very carefully remove the lower motherboard without desoldering the black/gray wires, and without removing the trigger assemblies, but there’s almost no room to work in there if you choose to go this route, because the wires will leave you only at most an inch of space to get in there under the lower motherboard. Also, leaving the trigger assemblies in place makes it very difficult to get the lower motherboard back into place without pinching or moving the conductive rubber button pad.

    Talia Margherita -

    It's cumbersome but avoids soldering which I'm not experienced with and worked to replace the button membrane for me

    Matt Hunt -

    I don't see why you should remove these screws now, rather wait until your ready to remove th board at step 12. I followed the guide in order and when I used force to get the home button cover off all the buttons fell out. If the screws are.kept in the it's held together

    Matt Hunt -

  10. Y4ScikhYpe6alShJ
    Y4ScikhYpe6alShJ
    ePMCPHLVsAahjODF

    • Rimuovi i paraurti facendoli uscire dai pioli che li fissano, usando uno spudger. Si trovano sulla parte anteriore e posteriore del controller.

    • Per questo passaggio è consigliato un spudger in nylon standard. L'utilizzo di un spudger in metallo vicino alla scheda madre, come mostrato, rischia di danneggiare il dispositivo.

    At some point I had 2 little white pieces come out and I didnt see them till the very end. Does anyone know where these are spossed to go? They kinda look looe shims? Thank you.

    myles bartlett -

    They go behind the trigger buttons on the board against the metal. Narrow side towards the button.

    Rongwey -

  11. XgGEjIXarQBOhD2s
    XgGEjIXarQBOhD2s
    juf5yTFyN3TaCeIn

    • Solleva dai suoi pioli il pezzo che circonda il tasto Home.

    • Fai leva dall'altro lato, usando uno spudger sui pin.

    • È consigliabile un normale spudger in nylon per questo passaggio. Usando uno spudger in metallo vicino alla scheda madre come mostrato si rischia di danneggiare il dispositivo.

    • La rimozione di questo pezzo può richiedere un bel po' di forza.

    2 things missing in this step:

    1) You will have to press down on the power button in order to release the plastic retaining piece.

    2) The button that syncs the controller to the system completely separates from the plastic frame. If you're not careful you could lose the thing.

    Navy Vet 2015 -

    Thanks NavyVet2015!

    The sync button fell out on me and I was pondering what it was for a while.

    Nothing is holding that little guy in so watch it!

    CrazedCanuck18 -

    カバーを戻す前にsyncボタンを本体側に付けてから被せた方が良い

    xbox_user -

  12. YPAmqNqOVVuSGQQT

    • Rimuovi la scheda madre inferiore.

    That’s the TOP motherboard.

    Ken D. -

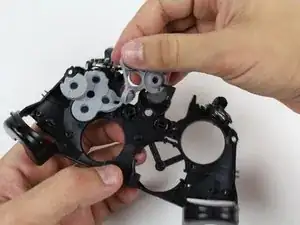

  13. 6ASALbxMv1vkLxcj

    • Rimuovi la gomma dietro i pulsanti.

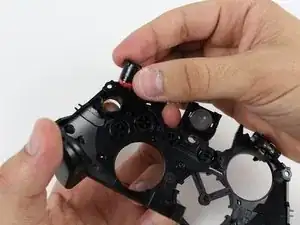

  14. tAq5JA3pVAOAiQ4N

    • Con i pulsanti rivolti verso il basso, falli uscire dalla loro sede facendo pressione verso l'alto e rimuovili.

    Who the !&&* came up with this?

    You could do this in a fraction of the time and a very tiny fraction of the steps!

    All you have to do is remove the outer case and you don't have to desolder anything, you simply lift it up flip it over and swap the pieces out!

    Anybody that needs help, watch a couple of YouTube videos until you find something that looks easy, do NOT follow these instructions to replace the buttons, as you can do this start to finish in 10 minutes without doing over half of this crap…

    Malone R -

    My sync button doesn't work, I need to replace it. Any guide on where to buy and how to replace said button?

    Camilo Rangel -

Conclusione

Per riassemblare il tuo dispositivo, segui queste istruzioni al contrario.
