Sostituzione scheda madre Nexus 5

Scritto Da: Kyle Libby
  • Commenti: 48
Sostituzione scheda madre Nexus 5

Difficoltà

Moderato

Passi

13

Tempo Necessario

30 minuti - 1 ora

Introduzione

Usa questa guida per sostituire la scheda madre del tuo Nexus 5.

  1. uEMEGFX5kNL1BUaZ
    uEMEGFX5kNL1BUaZ
    d5aupTQfBHnkY6hN

    • Inserisci uno strumento di estrazione SIM o una graffetta nel foro vicino all'alloggiamento della scheda SIM posizionato appena sotto il pulsante di accensione.

    • Spingi lo strumento nel foro finché non sentirai lo scatto della scheda che esce.

  2. LhjbucVW4KhyyAca

    • Rimuovi delicatamente la scheda SIM con le dita oppure con un paio di pinzette se il vassoio della SIM non è completamente estratto.

    • Quando inserisci di nuovo la scheda SIM, accertati che il chip sia dallo stesso lato della parte posteriore del telefono.

  3. xEViSRJY4VVHfmOQ
    xEViSRJY4VVHfmOQ
    1Z4SSVIF3RKmHyfE
    cysveXG444Jp4nRI

    • Usa uno strumento di apertura in plastica per sganciare le clip nella parte superiore e su ogni lato della cover posteriore.

    • La parte inferiore è fissata con un po' di schiuma adesiva. Dovresti riuscire a liberare completamente la cover posteriore utilizzando un plettro di apertura. I ganci sul bordo inferiore somigliano più a delle cerniere, quindi sgancia tutti gli altri e poi apri la cover dall'alto e verso l'esterno, così da sganciarli senza romperli.

    • È meglio evitare di far leva attorno all'alloggiamento della scheda SIM, perché in questo punto la plastica è molto sottile ed è facile che si rompa se viene forzata.

    • Quando sostituisci la cover, c'è un gancio a scatto circa all'altezza del foro del flash che deve attaccarsi (uno dei tre che fissa la cover posteriore al telaio). Senza, la carica Qi (wireless) potrebbe non funzionare. Applica pressione in modo delicato ma deciso sulla "S" di Nexus, fai scorrere il pollice verso l'alto e il gancio farà presa.

    Wireless QI and NFC.

    Once I have put everything together with the new battery in place, I have as last replaced the plastic back cover, snapping all the clips back around the edges of the phone. Alas, I was quick to realise the QI Wireless charging has ceased to work.

    I almost blamed the battery, or worse, me.

    QUICK TIP: there is actually another clip in the middle of the plastic back cover - just press with your thumb just above the 'S' in NEXUS emblem and, voila! Snaps back in.

    Wireless charge and NFC - works, once again.

    cwioro -

    you just saved me like 30 bucks. thank you so much.

    Robert Nolan -

    + 1, had the same issue and pressing just near the S fixed it! Thanks a lot!

    nicco82 -

    Just a me too, I had to press above the S and it was quite a snap

    Erik Karlin -

    There seems to be two contacts that snap into place. One is in line with the led pretty much in the middle of the phone and the second one in line with the camera lens on the opposite side to the lens. The middle one for me snapped pretty lightly, but the side one required a bit more pressure. After that the nfc started working again. Thanks for posting this!

    Dennis Millner -

    Is it hard to remove the battery door? Worried I might damage it.

    Ash -

    When I openend the back cover I damaged two clips. One about 2.5cm (1 inch) below the volume controls and one on the other side about same height. The cover fits good without those two but on one side there is a small gap where the clip broke. But I have a hard cover protector on my phone so it's not that bad.

    simonlwheeler -

    The case around the sim slot is pretty thin and easy to break, best to avoid using the pry tool at this point.

    Aled Morris -

    Excellent tip, should be included in the main guide.

    fprades -

    Hey Author, i need to ur expert advice...i replaced my nexus 5's back cover. since the new one did not have the vibrators battery i had to take it from the old one and connect it to the new one...on removing i noticed that it was stuck to the cover by a glue

    Question: what glue to use to hold the battery to the cover?

    suwaid akbar -

    Any adhesive will do. I used a hot glue gun. You shouldn't need expert advice to figure that out. Use your head.

    tjt263 -

    The case around the volume control is also pretty thin.... I broke mine prying so avoid the pry there too.

    Also my back had glue at the bottom and I haven't seen mentioned

    kornerson -

  4. BTRZoDBr3OKdfuSe

    • Rimuovi le sei viti Phillips #00 da 4,0 mm che fissano il telaio intermedio al telefono.

    • Accertati di conservare tutte e sei le viti da 4,0 mm! Queste mantengono il telaio intermedio fermo e vicino alla scheda madre. I tre piccoli ganci a scatto sulla cover posteriore che la fissano al telaio assicurano che i connettori di antenna NFC e bobina di ricarica wireless facciano bene contatto con la scheda madre e funzionino al meglio.

    • Per sostituire lo schermo LCD e il digitizer, rimuovi, con lo stesso cacciavite, le altre quattro viti da 4,0 mm della cover della scheda figlia. Potresti dover forare del materiale adesivo trasparente per svitarle.

    I had a bit more success with the Phillips #000.

    Ross Light -

    Step 4 (removing the screws in the protecting plate) needs to happen before Step 2 ( removing the connectors)

    Esteban Valles -

    These were Y0 screws for me.

    Benjamin Hollway -

    Same here, Benjamin

    Ítalo Masserano -

    Me three on the Y-type screw heads.

    Jamoross -

    Same for me. I had more luck with the two screws in the middle with #000.

    Rewarp -

  5. 3BvbgCuAHbWMQxvD
    3BvbgCuAHbWMQxvD
    dFU2GMl6CVK2L61O

    • Rimuovi il telaio intermedio dal telefono.

    • Esamina il telaio intermedio e la cover posteriore e troverai tre piccoli ganci a scatto per il retro del telaio intermedio. Questi assicurano che i contatti delle antenne dell'NFC e della ricarica wireless si connettano con i rispettivi connettori a molla sulla scheda madre. Accertati che siano in buone condizioni.

    There's also some adhesive holding the motherboard cover plate in place, below the camera. Has to be pulled a little stronger than expected.

    tkatona -

  6. Oyiy1FAMsRBNFsVx
    Oyiy1FAMsRBNFsVx
    Ai1o2JTP6SWHes2S

    • Usa l'estremità piatta di uno spudger in nylon per scollegare il connettore della batteria.

  7. frVBkaKCOgoPsAYy
    frVBkaKCOgoPsAYy
    cq34GDWnpASPWTSV

    • Usa l'estremità piatta di uno spudger per scollegare il cavo a nastro della scheda figlia e allontanarlo dalla batteria.

  8. ZIeQQP3RVRHYx6Q3
    ZIeQQP3RVRHYx6Q3
    ZkXpmOus3fCXKTFm
    tSaGTMZDJD3XFcRO

    • Usa uno strumento di apertura in plastica per far leva sotto la batteria ed estrarla dal suo alloggiamento.

    • Potrebbe rendersi necessario l'uso di una pistola termica per applicare una modesta quantità di calore per ammorbidire l'adesivo sotto la batteria.

    • Non forare o piegare la batteria.

    • Se sostituirai la batteria, imballa la vecchia batetria e riciclala in modo responsabile in una location adatta.

    This part is very delicate. The adhesive is pretty solid and I did puncture the battery. It is dangerous and the battery should be replaced with a new one.

    Christophe De Wolf -

    Thanks Chris for the notice. I have added a warning on your advise. Do you think about any better way to unglue the battery?

    Gaetan -

    Like another user, I had already taken my cover off plenty of times prior to. The issue of course was removing the battery. I purchased the opening tools and spudger and used them but to no avail. I ended up using a flat tip screwdriver and got the battery out within seconds with no puncturing.

    gnewton16 -

    I'll second the flathead screwdriver. Tried different plastic tools only to damage both the battery and a spring connector on the phone. With the flathead screwdriver battery came out quite easily lifting from the bottom end. There is an adhesive tape holding the battery firmly in place that retains the adhesive surface after removing the battery, so the new battery should attach properly.

    Dennis Millner -

    Why do you need to remove the battery at all? Just replaced my rear camera without removing it. I mean, I realise that removing the power source would have been safer, but would it be enough just to detach the motherboard connector?

    eyusupov -

    This guide is about the REPLACEMENT of the battery, and for that it seems necessary to remove it first. ;-)

    biharikristof -

    Do you need to apply adhesive to the new battery to keep it in place?

    Ross Light -

    no there is generally glue remaining and it stays in place pretty good

    mmoodley10 -

    This was fantastic, thank you! I had never done anything like this before! You just saved me some money and also taught me something :D

    anagarciasebastia -

    to make Qi work, you have to press the cover really everywhere afterwards. The contacts for Qi are between th Nexus "S" and the camera. Sometimes the Qi loading needs some time to work - I assume the battery needs to expand after a few loading cycles...

    Apeiron -

    The first time I tried to replace the battery I ended up breaking off the tab on the new battery. It needs to be bent properly to fit into the socket on the phone. The second time, I connected the tab t the socket BEFORE placing the new battery into the area of the phone where it sits. Then I was able to use the plastic tool to correctly bend the connector.

    John Goldin -

    I have replaced the battery and after doing this there is a flashing red light. does this mean its just charging from empty or have I done something wrong? Do i need to press any buttons to make sure its charging properly? do i need to re open it up to check connections? what do i do? there is no mention of whether it should turn back on or what it should do/how long it will take to be up and running again.

    Bambipeach -

    I had the same "problem", though I had misplugged the battery. Just wait for a couple of minutes and your phone should start to charge. Also, I've been told to fully charge and discharge the battery 2-3 times before using it.

    Steve Simard -

    Be extremely careful while prying out the battery. I had damaged a Nexus 4 battery while trying to do this, and smoke started coming out. If you search youtube you can see how a punctured Li-ion battery can explode in seconds.

    Abhi B -

    Why not remove the battery by pulling on the small ribbon cable at the top?

    Matt Szczublewski -

    When you take out the battery, there are some sort of black tape (adhesive) around the inner circle of the empty battery chassis. I might have been too rough and taken the black tape out completely. Now with the newly replaced battery, Nexus 5 won't charge or power on. Does anyone know what the black tape is for? is it the reason or something else?

    Gracie -

    I found out that the heavy duty suction cup I bought to replace phone screens works quite effectively at removing the battery without bending or damaging it. Of course, this was being used on a battery that was itself a replacement of the original, so the adhesive may have weakened significantly.

    Rewarp -

  9. n2ATayK3owfLiG6U
    n2ATayK3owfLiG6U
    TJxKXUvK3cmasqMI

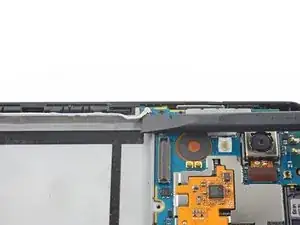

    • Usa l'estremità piatta di uno spudger per disconnettere il cavo dell'antenna di sinistra.

  10. Dmunk4EWt5kUWcpa
    Dmunk4EWt5kUWcpa
    hqx6GJNKrDWUoxHQ

    • Usa l'estremità piatta di uno spudger per disconnettere il cavo dell'antenna di destra.

    • In fase di rimontaggio questi connettori devono essere perfettamente inseriti. Se il collegamento delle antenne non è ripristinato correttamente, ne risentiranno la qualità della ricezione e delle chiamate.

  11. BtIZECIPuSFBFPPU
    BtIZECIPuSFBFPPU
    sLORMBgZOWOjEN3D

    • Usa l'estremità piatta di uno spudger per scollegare il cavo a nastro che connette la fotocamera posteriore alla scheda madre.

  12. 2vLGDUwYvSSfVU2i
    2vLGDUwYvSSfVU2i
    Cphxbju56EhIW4Ff

    • Usa l'estremità piatta di uno spudger per disconnettere il cavo a nastro della fotocamera anteriore.

  13. 5a2DDouuigCLtDrZ
    5a2DDouuigCLtDrZ
    tJcLaE5ufC3ckwqy

    • Solleva delicatamente la scheda madre verso l'alto per staccarla dal dispositivo.

Conclusione

Per rimontare il tuo dispositivo, segui queste istruzioni in ordine inverso.
