Sostituzione scheda madre della base termostato Nest Learning 2a generazione

Scritto Da: Rachael Deptula
  • Commenti: 14
Sostituzione scheda madre della base termostato Nest Learning 2a generazione

Difficoltà

Moderato

Passi

7

Tempo Necessario

25 - 30 minuti

Introduzione

Quando sostituisci la scheda madre della base, è necessario rimuoverlo da muro e la corrente al termostato deve essere spenta. Gli strumenti richiesti sono gli strumenti di apertura blu, uno spudger e un cacciavite a croce Phillips #0.

  1. ZOItWNfgtMLWJgap
    ZOItWNfgtMLWJgap
    qx2mWZFTHWSpQLid
    EAd5TJv5cybVbWeW

    • Prima di smontare il tuo termostato Nest, assicurati che il tuo impianto HVAC sia spento.

    • Prendi l'anello esterno in metallo dello schermo con le dita e tiralo via dal muro, lasciando la base sul muro.

  2. 4tTO23YX1AcGJrrf
    4tTO23YX1AcGJrrf
    M6HBPsuLUkjyfobY
    mZNU2QuZQYjq4A6j

    • Ricordati di staccare la corrente al tuo impianto HVAC ed al termostato.

    • Scollega tutti i cavi dai connettori caricati a molla grigi. Puoi farlo con le dita.

    HOW do you disconnect the wires? I can't get them out!

    Beverley Brown -

    Same here. It is like the springs are in a stuck position

    Bill Redfield -

    I also can not dis-engage the wires. Feels like the springs are frozen closed.

    Bill Redfield -

    Hold down the button on the end and the wire should be able to slide right out.

    Amber -

    Yes, the button on the end of the wires is stuck in the down position. Tried pushing with my fingers and several smaller tools- they appear to be frozen in the down position.

    Garet Ten Cate -

    If you hold the buttons down while pulling the wires, they'll come right out and the button springs reset.

    Dan -

  3. IWvk5fxBlhwPKyOM

    • Svita le due viti da 40 mm dalla base del termostato usando un cacciavite a croce Phillips #0.

  4. gYUVKNowSPmOYY4k
    gYUVKNowSPmOYY4k
    AahYOdLWxGiio6YK
    vlk4lqARTmfnpqEg

    • Sgancia la base dalla placca di finitura (se presente) usando uno strumento di apertura in plastica.

  5. dRdX3Z4jjWLxYxfW
    dRdX3Z4jjWLxYxfW
    GNL1aDJORRERnSTS

    • Gira la base a faccia in giù.

    • Svita le quattro viti da 6 mm dal retro della base usando un cacciavite a croce Phillips #0.

  6. rWb5GNoPOl2cOkT2
    rWb5GNoPOl2cOkT2
    MpPYkjemUgGgxfTg

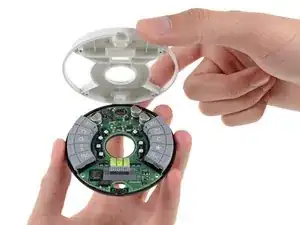

    • Fai leva sulla base per aprire la scheda madre dal lato usando uno strumento di apertura in plastica.

  7. P3AjIVpwkLn43PHX
    P3AjIVpwkLn43PHX
    vJ4Ma1IXeiGTZBPB
    owx2BfYYrftIOnn6

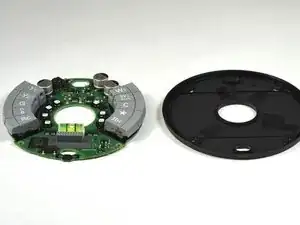

    • La scheda madre della base è tenuta ferma solo da del leggero adesivo.

    • Fai leva sulla scheda madre da sotto usando la parte piatta di uno spudger.

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.

Autore

Rachael Deptula

Membro da: 04/09/14

1090 Reputazione

8 commenti

Would like to know where I can get just the base motherboard.

wesbug -

Where can we purchase replacement parts?

brettspradley -

i want the baseboard.. where i can buy? pls help...

john gemora -

Yep, my base unit lasted exactly 8 days, then it shorted out. The furnace repairman said he has seen it a couple of times, the base unit can't handle the current needed by the furnace so it goes poof. Back to Honeywell...

bbolen -

No replacement parts from Nest, my base unit died and I have perfectly working thermostat but am forced to buy a new one cause I can't get the base unit on its own.

Adrian Ma -

I have no clue why people like their thermostats to the degree that they do.. I am both an A/c professional and an Engineer. They use what is called an SCR or silicon controlled rectifier for their switching instead of a tiny relay. An SCR is very sensitive to a spark or voltage spike. Yes the thermostat is pretty cool and has some nice features. It is advanced electronics but using SMC's or Surface Mounted Components?? . Maybe that would work well in a shielded component. But NOT in something that is connected to long external wires. The consumer bought warranty is only one year. I have seen too many issues in the field with their overpriced toys. Not having parts for this Chinese made thermostat? Priceless.

Jon Reid -

Hey Jon, I’m trying to repair my parent’s 2nd Gen Nest. It sends out “heat” and “cool” signal at the same time. Anyway I can replace a component on the motherboard?

Lizik -

Good post. Wish I had read before I got a Nest thermostat. What would you recommend as a good alternative? I hate when you can't replace simple components and parts cheaply and quickly. What the !&&*.

doughboy1338 -
