Sostituzione schermo LCD GamePad Wii U

Scritto Da: Valentina Cerruty
  • Commenti: 79
Sostituzione schermo LCD GamePad Wii U

Difficoltà

Difficile

Passi

21

Tempo Necessario

25 - 30 minuti

Introduzione

Questa guida ti mostrerà come sostituire lo schermo LCD. Per questa sostituzione, ti servirà un cacciavite a croce Phillips #00 e un piccolo cacciavite Tri-Wing (Y).

  1. dKTaxZjIUAsyAXlI

    • Appoggia il GamePad a faccia in giù e svita le due viti da 4,7 mm con un cacciavite a croce Phillips #00.

    tried to unscrew the 10 Tri-Wing size Y1 screw with my iFixIt toolkit

    unfortunately the tool is too “fat” and short, it cannot reach 4 screws on the corners of the gamepad.

    having the iFixIt toolkit and needing to purchase an additional slim screwdriver it’s a shame…

    Antonello Iannone -

  2. jQnDZvXRQvPOXfpG

    • Solleva e rimuovi la copertura della batteria.

  3. qZN3PgyACtZ5Tw4i
    qZN3PgyACtZ5Tw4i
    nDakTZouVNlkKPKx
    o4RQ44lFuusIk4uU

    • Con le dita, premi sul connettore della batteria e tiralo all'indietro.

    • Rimuovi la batteria dal suo alloggio.

    Battery lifts up from the bottom not the top like the photo shows.

    Tyler Schommer -

  4. IlOVIxDuCaqAuWCO
    IlOVIxDuCaqAuWCO
    iNj1oAZjk4bbQA1g
    CfComIPOOBMDkYhT

    • Svita le 10 viti da 9 mm attorno alla copertura esterna con un cacciavite Tri-Wing Y1.

    • Solleva la copertura posteriore.

    • Sollevala delicatamente, in quanto il motore della vibrazione sulla copertura posteriore è ancora collegato alla scheda madre con un cavo.

    I used a small blade tip to life up on the black squares that covered the screw holes. Replacing them after.. I skipped that as it seemed impossible they would even stick back down.

    Chris -

    I am having trouble getting the two screws on the hand grips as the screws are too deep. What should I use to get them?

    [deleted] -

    I ended up having to buy some cheap amazon screwdrivers and are very disappointed

    [deleted] -

  5. MBTkFeprlTH425NV

    • Scollega il connettore del motore della vibrazione dalla scheda madre con le dita.

    Do not pull by the wires! If you do, you better be pretty good at soldering.

    Brandon -

    I agree. A circle over the plug would have been better as the picture looks like you just pull on the wires lol.

    Chris -

    Thanks for the comment. I did get a set of tweezers and the negative cable broke anyway. They really could have done a better job at using a different connector for that.

    Kristen Bartholomew -

    Great. Didn't pull on cord. Whole thing ripped off.

    August -

    Why in the world is this thing so tightly connected?

    Andrew Moore -

    Thanks for the comment. I did get a set of tweezers to try to pull it out but still ended up breaking the negative cable. They really could have used a better set of cables and connectors for this.

    Kristen Bartholomew -

  6. lQpCMiEjbuhZ6I1t
    lQpCMiEjbuhZ6I1t
    FVXXJNUkL6InP1Lb

    • Con le dita, scollega il cavo dello speaker sinistro dalla scheda madre.

    Speakers are connected with solder so removing them is not possible without requiring soldering later on. I left them both connected and instead of removing the motherboard completely I just "hinged" it carefully down to facilitate the work following step 18.

    dietcokediva -

    Thank you for offering this info because I spent 20 minutes between scratching my head and searching for any alternatives to just the image above, which had a wire nut/housing (and mine certainly did not). As I began to have an anxiety attack (

    Missy Leap-Courtney -

    Mine also did not have connectors for the speaker. But like mentioned above, I was able to do repair WITHOUT the need to unsolder the speaker wires. Thanks!

    Louis Bellanca -

  7. ToqplyUlLtDhitp1
    ToqplyUlLtDhitp1
    nvgg1TfBOOiNpeoE

    • Scollega il cavo dello speaker destro dalla scheda madre con delle pinzette.

    Note that on some units (presumably later ones), the speakers are soldered onto the motherboard.

    Ryan Finnie -

  8. TUsHKGephHImxTpX
    TUsHKGephHImxTpX
    xDCTCAKa4Np4ILLa
    1Mh3m4Cirwhv3Kci

    • Apri la chiusura superiore ed inferiore che collegano il cavo a nastro bianco alla scheda madre con delle pinzette.

    • Scollega il cavo a nastro bianco con le pinzette.

    Attention! You have to flip up gently the small plastic cap on top of the ribbon connector. Do not try to slide the plastic cap horizontally. This method holds for all ribbon connectors.

    Marc Peetermans -

    Why is it necessary? The white flex cable doesn’t seem to block the way to the Bluetooth unit.

    metm98 -

    It is a easy step and makes dealing with everything else a little easier.

    Chris -

    Isn’t it WiFi?

    Brayton Dickey -

    This step is unnecessary, there is no reason to go through it.

    jonv85 -

    Why would you do this? It’s not blocking anything. Not even near the wifi module.

    N64 -

    I’m just curious, as a technician gamer, you say it makes it easier, but I don’t see how it would affect the Bluetooth, sure the motherboard or the touch screen, but the Bluetooth chip is out of the way. I’m not trying to be critical, just want to understand.

    Hydron -

    Pointless step for this task.

    MrW -

  9. VFYrKgHvDyR2hwNI
    VFYrKgHvDyR2hwNI
    kdgLFbkFoWwUTXvU

    • Solleva e rimuovi la scheda bluetooth con le dita.

    • Rimuovi la scheda attentamente, in quanto ci sono ancora due cavi collegati.

    These little boards (Bluetooth and NFC) have a small connector but also have double sided tape holding them down. So you may need to apply more force than expected to remove these due to the tape.

    Louis Bellanca -

    Isn’t it Wi-Fi?

    Brayton Dickey -

  10. GrAwqAXQSAOJBcbA
    GrAwqAXQSAOJBcbA
    5Ao4YuCIoJpQbkkC

    • Scollega i cavi nero e bianco dal retro del modulo bluetooth.

    One important thing to note here is how the black and white wires are routed to the board. You should take a picture since if you do not route these the same way, the wires can interfere with the button or get trapped when you assemble the case back possible blocking a screw hole.

    Louis Bellanca -

    Isn’t it Wi-Fi?

    Brayton Dickey -

    Any idea what the name of the white wire is? I accidentally broke through mine.. having trouble finding a replacement

    Winder Mere -

    how do i route the bluetooth anntenas

    Zach -

  11. OtZh1PSCUSQo3NL3

    • Solleva e rimuovi il modulo bluetooth.

    Isn’t it Wi-Fi?

    Brayton Dickey -

    Does it really matter?

    martin8777 -

    Thanks a lot for the guide. I just fixed my gamepad and it appears to be working good. Just one question: why do you include the step in which you remove the flatflex cable to the other pcb? It seems unnecesary

    Carlo Zanardi -

    Do you happen to know where you can find replacement wires for the back and white wires?

    Amber S -

  12. MtipRhFwfaa6veQB

    • Scollega il connettore dell'analogico con le pinzette.

    The connector on the right side is also on the left side.

    Paulus 68 -

    There was a little tab on the top of the male end of the connectors that I had to push to get them out.

    Reed Deemer -

    Take a small flat head screw driver and push out and to the left on top of the white part of the connector. If you try to use tweezers on this model it will not come out.

    Steven Vallarian -

  13. QRhZGrF16LT4yXFC
    QRhZGrF16LT4yXFC
    CD6qqS56kOePKoCP

    • Scollega il connettore blu con le pinzette.

    Looks like there are 2 of these connectors - left and right side

    Louis Bellanca -

    Lift the little gray tab before you pull the blue ribbon out.

    theonlygeezy -

  14. XPE2Qd4OoYphLJVr
    XPE2Qd4OoYphLJVr
    eD1jQZOnNNLoDADx

    • Apri attentamente la chiusura nera. Si rompe facilmente se sollevata da un solo punto. Scollega il cavo a nastro marrone con le pinzette.

    • Sgancia e rilascia il piccolo cavo a nastro del digitizer a sinistra del cavo a nastro marrone. Stai attento, in quanto la chiusura si rompe facilmente.

    There is also a small connecter on the left side from the big connector.

    Paulus 68 -

    The small connector is the digitizer (touch senor panel) - The large connector is the actual display

    Louis Bellanca -

    For the small connector, lift up the black part on top from this side.

    theonlygeezy -

    I broke that small connector (the lid) how can I fix that? The flex is still goes there but I won't get touch response unless I apply some pressure to it!

    davisrayler -

    if you fixed it, can you tell me how did you do it?

    Bast -

    The small grey ribbon has a clasp holding it down. It needs to be opened in the opposite direction of the black clasp on the wide ribbon before you disconnect the ribbon.

    Ginny Buhler -

  15. qQTGcCU3bhhYfXxq

    • Scollega il piccolo cavo a nastro arancione con le pinzette.

    These tiny connectors are difficult to see how to manipulate. Similar to other ribbon connectors, there is a lever that flips up to release the ribbon cable. However, unlike the larger connectors, the lever flips up from the opposite side that the connector enters. Run your tweezers up the back side of the connector body, and the grey top should flip to vertical. Then the ribbon cable will slide out.

    Matt Cross -

    This small connector is attached to the screen as well.

    Louis Bellanca -

    What do I do if I broke off the gray top cover that went over the wire things.

    Amber Umphrey -

    You probably don’t need this anymore, but that happened to me a while ago and now i’m gonna have to buy a new motherboard. Your motherboard is as good as done for

    The Boi -

    Snapped it off too. Tried hot glue.with no luck. Does anyone know if Motherboard s are interchangeable? I have Version B

    Foe Suar -

  16. gE5HgSkLUC4wZ2Wx
    gE5HgSkLUC4wZ2Wx
    xRdgQKRUcBOLCvUN
    dqTupMcdcCCTnqR1

    • Scollega i due connettori evidenziati dalla scheda madre con le dita.

  17. xijb6MlRQNphbEO1
    xijb6MlRQNphbEO1
    qDwHYWPjeKVdUNfT

    • Rimuovi il comunicatore NFC.

    • Mentre rimuovi il comunicatore NFC, stai attento al piccolo connettore sul suo retro.

    • Scollega il piccolo connettore dalla sua presa sul retro.

    When trying to remove the red and black cords, it came off the green board. Is there a way to reconnect them?

    Judy Swenson -

    I didn't disconnect the cable, isn't really necessary.

    Paulus 68 -

  18. GMo6kaTU3PJUMUcv
    GMo6kaTU3PJUMUcv
    hNCP4Ee6j1eVdIaU
    f2FljBbnKVGlJSAI

    • Svita le tre viti da 5,1 mm restanti usando un cacciavite a croce Phillips #0.

    • Solleva e rimuovi la scheda madre.

    There's a 4th 5.1mm screw along the bottom edge in the middle.

    Bobby Elrod -

    The speakers were soldered as mentioned above, so I carefully folded the motherboard down to facilitate work

    dietcokediva -

  19. tVMhSpE4GNakdf3p
    tVMhSpE4GNakdf3p
    Winu5veAFxUOvvFl

    • Svita le quattro viti da 5,1 mm usando un cacciavite a croce Phillips #0.

    • Tira via i cavi bianco e nero dalla copertura dello schermo.

  20. dHMCtV1KBPbJxUVF
    dHMCtV1KBPbJxUVF
    xuqjbCGYZTonKP2A

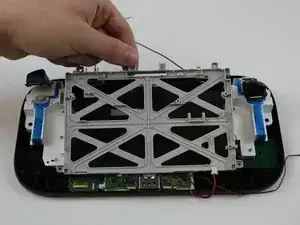

    • Solleva e rimuovi la copertura grigia dello schermo con le dita.

    There are two more screws under the sync component that requires you to disconnect the board and remove it as well. These screws prevent you from lifting out the display case as noted in step 19

    dietcokediva -

    If your display case is black, then you might have these two small screws under the sync PWB. It is best to go ahead and remove the complete assembly and place it in a safe spot. The ribbon cable that connects the 2 boards is fragile.

    susan -

  21. M5Li5251Qp1YDub5
    M5Li5251Qp1YDub5
    IcAeWoLUIJ1hbTQ3

    • Premi delicatamente sulla parte anteriore dello schermo con le dita e si solleverà.

    • Rimuovi lo schermo con le dita.

    To detach the touchscreen assembly from the LCD, just put the parts in a 60 degrees celsius oven for minutes and it will come with the adhesive perfectly ;) (just tested)

    Martial B -

    There is a black plastic trim ring on the front of the screen, on top of the digitizer. While not technically required to it does provide a barrier to crud getting under the edges of the screen and also looks better. It is stuck down with adhesive or double sided tape. You can slowly and gently pry it up from the digitizer, remove the old adhesive and re-stick it down with double-sided scotch tape on the new digitizer. This is possible to do after you have everything re-assembled but is much easier to do BEFORE you reassemble. Just align it to the inside edges of the screen.

    tombuy -

    the video feed isnt working to the screen after replacement, touch is working but no visual. any help?

    stino493 -

    If you have two separate parts for your replacement, the LCD and the Digitizer, the digitizer usually has some adhesive on it, so you can stick it down onto the LCD. Make sure to remove all the protective films!

    Dylan Starink -

    Could have mentioned the trim ring in the guide...

    ༒Gorm Auslander༒ -

    If there are two of a connector, say something please. Steps 12 and 13 only mention and show the left one, and I ended up tugging my motherboard up with the right ones still connected.

    ༒Gorm Auslander༒ -

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
