Sostituzione sedile Ford Super Duty 1999-2007

Scritto Da: JNoles
  • Commenti: 43
Sostituzione sedile Ford Super Duty 1999-2007

Difficoltà

Moderato

Passi

13

Tempo Necessario

2 - 4 ore

Introduzione

Sia che tu abbia un sedile scomodo o che sia solo rovinato, sostituire i sedili nella tua Ford Super Duty con dei nuovi o poco usati da un modello più recente è un buon modo per aggiornare il tuo pick up e renderlo più comodo. I sedili dei modelli 1999-2010 sono direttamente compatibili. In questa guida sostituiremo i sedili in un modello del 2005 con i sedili 40/20/40 da un Super Duty 2013. Con delle piccole modifiche tutti sedili fino al modello 2014 possono venire montati su qualsiasi modello dal 1999 in poi.

  1. JVyAEPiItTvWrgKE

    • Foto prima di iniziare dei sedili di una Ford F-350 Super Duty del 2005. La rimozione del sedile richiede una chiave a bussola da 18 mm. Preferibilmente una presa lunga e una punta Torx T60 con cricchetto o chiave ad impulsi.

  2. fKTgNPkGAQXMjqrV
    fKTgNPkGAQXMjqrV
    h1kcIIQtUFlsFlpX

    • Porta il sedile il più indietro possibile. Usando la chiave a bussola da 18 mm rimuovi i bulloni sulla parte anteriore che fissano il sedile al pavimento. Sul mio sedile c'erano solo due bulloni. Se hai un sedile 60/40 o un sedile avvolgente, ci saranno più bulloni.

  3. bWWRaGBQTGo5mje2
    bWWRaGBQTGo5mje2
    wXw64BFJQ4WnsOK1
    mwBobJbHn5nIUqXN

    • Muovi il sedile il più avanti possibile. Cerca un perno con un cappuccio protettivo in plastica. Rimuovi il cappuccio con un cacciavite. Usando una chiave o una bussola (se hai abbastanza spazio) da 18 mm, rimuovi il bullone dal perno. Solleva il sedile dai perni e appoggialo più avanti.

    • Sul mio sedile c'erano solo due perni/bulloni. Altri sedili potrebbero averne di più.

  4. xBqMw6IkHmibUSGB
    xBqMw6IkHmibUSGB
    eiPpyuxK6Pt1VHne
    5aZwkenQQbfvweDk

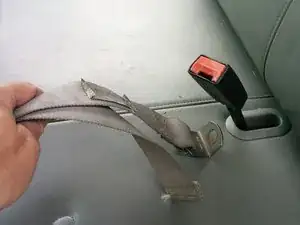

    • Usando la punta Torx T60 rimuovi i bulloni che fissano le prese delle cinture al pavimento e rimuovi le prese dal sedile.

  5. PYPApRmUbBSmBLYf

    • Scollega la presa della cintura dalla presa del cicalino per le cinture del veicolo. Dovrebbe essere appena sotto il retro del sedile.

    • Ora puoi rimuovere il sedile dal pick up. Se hai un sedile come quello mostrato nella guida, ti servirà una mano.

  7. IDnA6imyK6BRIFVB
    IDnA6imyK6BRIFVB
    L6YkwBDsAURgtLbK
    rSpe1MX2nRgb6REk

    • Ora, se il tuo pick up usava solo i fori di montaggio più esterni, dovrai trovare i due fori vicino al tunnel della trasmissione. Puoi premere con un dito nel mezzo per trovare l'apertura. Prendi un taglierino e taglia delicatamente una X sopra il foro. Rimuovi delicatamente ogni aletta triangolare così create per esporre il foro.

    • Ripeti questa procedura per l'altro lato.

  8. VNAoUSPlLjmpQNXv
    VNAoUSPlLjmpQNXv
    2Xk5WveOA3MkXRJV

    • Quindi posiziona il tuo sedile al centro, sopra il tunnel della trasmissione. I fori posteriori si dovranno allineare con i due dove erano attaccate le prese delle cinture. Avvita due bulloni in questi fori, ma non stringerli del tutto. Solleva la seduta del sedile per accedere ai due fori per i bulloni sotto il sedile.

  9. yI1xGCsMOoys2IPT

    • Adesso devi segnare e trapanare due fori nel tunnel della trasmissione. Controlla attentamente costa c'è sotto al tunnel per assicurarti di non danneggiare dei cavi o o dei meccanismi che passano lì sotto. Per questo passaggio è meglio farlo in 2 persone: una che trapana e una che controlla da sotto.

    • Questi foro sono da fare solo per montare i sedili dei modelli 2011-2014.

  10. cWWm4agieueNfUGk

    • Nota che il sedile di mezzo è leggermente più basso di quelli laterali. Posiziona momentaneamente i laterali e usa delle rondelle o degli altri distanziatori da mettere tra il pavimento e il sedile centrale per alzarlo allo stesso livello degli altri.

  11. IVJt3fuEAPpgW4Ev
    IVJt3fuEAPpgW4Ev
    FKWFESq3MRoeSaKS
    VUkKVbqBfZJIVLMP

    • Posiziona i sedili laterali nel pick up. dovresti riuscire ad allineare tutti i 4 fori nel sostegno dei sedili con quelli nel pavimento del pick up. Puoi usare gli stessi bulloni che hai rimosso dai sedili originali per avvitare quelli nuovi. Riposiziona i perni con un cappuccio protettivo in plastica sui nuovi sedili.

  12. PfvZsLQesAZTBIZa
    PfvZsLQesAZTBIZa
    BfmTRhuk4KARe1uP

    • Nel mio caso la presa della cintura del nuovo sedile non entrava nella presa del cicalino del veicolo. Rimuovi semplicemente la presa della cintura dal sedile con una punta Torx T60 e e riattacca quella originale. Usare la presa della cintura originale ti permette di collegarla al cicalino e di farlo funzionare correttamente.

  13. Ud1KO6xRXYGMmmGg
    Ud1KO6xRXYGMmmGg
    vXERwAQGDCBclgyc
    gscyDussTJUsEyEQ

    • Assicurati di stringere correttamente tutti i bulloni. La tua sicurezza dipende da questo. Ora hai dei sedili moderni e molto più comodi nel tuoi pick up. Goditeli!

    • Le immagini sono una comparativa tra il prima e il dopo.

    Do i need to tap the holes drilled on transmission tunnel?

    Daniel -

    I didn't, I used a bolt, washer, lock washer and nut.

    JNoles -

Conclusione

Sostituire i sedili scomodi o rovinati migliora davvero il tuo pick up!
