Introduzione
Se la tua ventola è rumorosa o ostruita dalla polvere, usa questa guida per rimuoverla se devi pulirla o sostituirla.
Strumenti
-
-

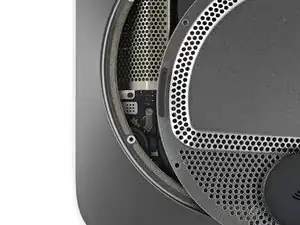

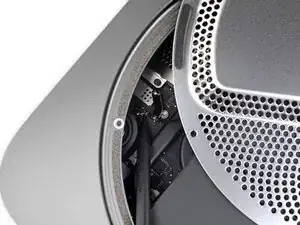

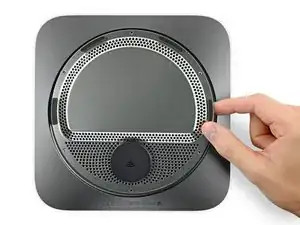

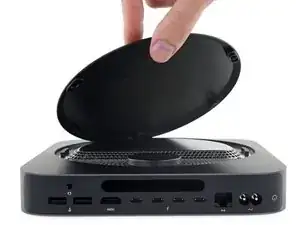

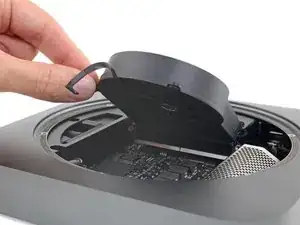

Solleva e rimuovi la cover inferiore.
-
Allineala accuratamente così che le parole "Mac mini" siano leggibili quando le porte sono rivolte verso di te.
-

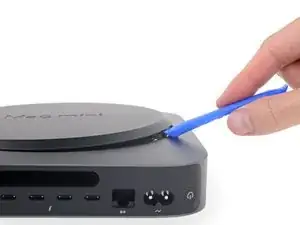

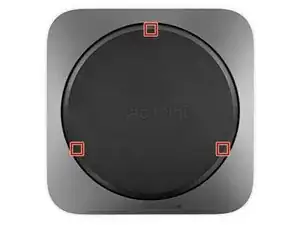

Quindi, premi sulla cover per far scattare in posizione le clip nascoste.
-
-
-

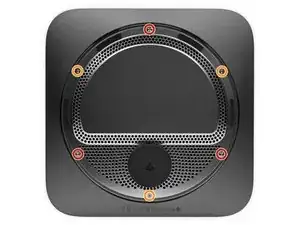

Rimuovi le sei viti TR6 Torx che assicurano la piastra dell'antenna, della seguente lunghezza:
-
Tre viti da 4,1 mm
-
Tre viti da 1,8 mm
-
-
-

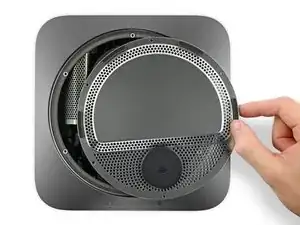

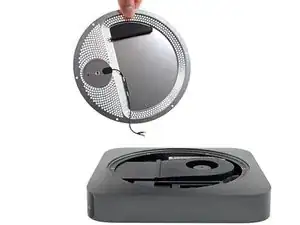

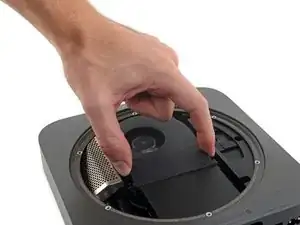

Accuratamente solleva la piastra dell'antenna e falla scorrere verso destra per avere accesso al connettore dell'antenna sottostante.
-
-
-

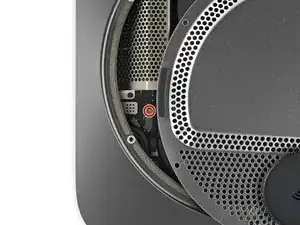

Usa un cacciavite Torx T6 per rimuovere la vite da 2,8 mm che assicura il cavo dell'antenna alla scheda madre del Mac mini.
-
-
-

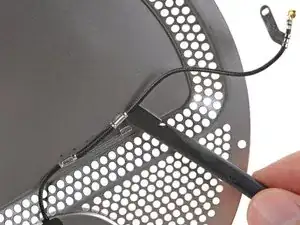

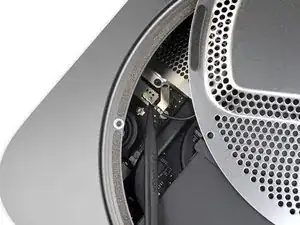

Con gentilezza tira il cavo o usa la punta di uno spudger per far leva sul connettore e tirarlo fuori dal suo alloggiamento nella scheda madre.
-
-
-

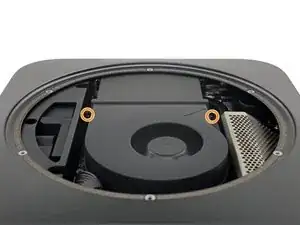

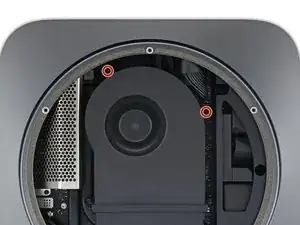

Usa un cacciavite Torx T6 per rimuovere le quattro viti da 7,2 mm che assicurano la ventola.
-
Due viti assicurano la ventola alla scheda madre.
-
Due viti assicurano la ventola allo scarico dell'aria.
-
-
-

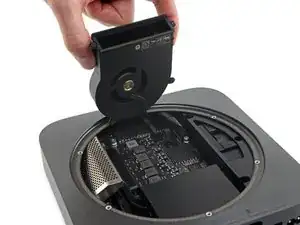

Solleva la ventola dal lato piatto dove incontra lo scarico dell'aria, facendo attenzione a non sforzare il cavo sottostante della ventola.
-
-
-

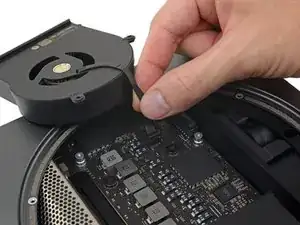

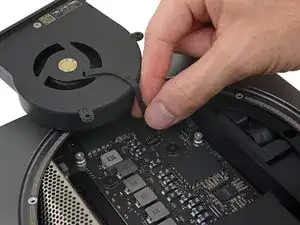

Afferra il cavo della ventola da tutti i suoi sei cavi e delicatamente sollevalo per disconnetterlo dalla scheda madre.
-
Compara il tuo pezzo nuovo con quello originale: potresti dover trasferire componenti vecchi o rimuovere protezioni adesive dal nuovo componente prima di installarlo.
Per assemblare il tuo dispositivo, segui i passi precedenti nell'ordine inverso.
Porta i tuoi rifiuti elettronici a un riciclatore certificato R2 o e-Stewards.
La riparazione non è andata secondo i piani? Vai sulla nostra Answers community per aiuti sui problemi.
2 commenti
Hi, thank you for this guide. I am getting ready to do the same. Regarding the fan connector: is it perhaps the slide-in type which can be disconnected by pulling the wires horizontally backwards, instead of pulling upwards? The photos are good but still not enough magnification to be able to tell. Thanks in advance.
It appears to be the type of connector to slide laterally rather than needing to be pulled vertically in order to be disconnected.
Zac Hall -
I got as far as this step to do one thing, blow out all the dust. It was far enough and a lot of dust came out. I used a XPower A-2S to blow out the dust.
nirv -
