SteelSeries Arctis 1/7 micro USB port Replaced with USB C port

Scritto Da: Kireobat
  • Commenti: 7
SteelSeries Arctis 1/7 micro USB port Replaced with USB C port

Difficoltà

Difficult

Passi

6

Tempo Necessario

1 - 2 ore

Introduzione

This guide will explain how to replace the micro USB port on a Steelseries headset with a USB-C port.

  1. O5KZcLgnaeZZKxOT

    • To take off the ear pads, twist them 90 degrees and carefully pull them off.

  2. kVBrTNN3ZXgbbPF1

    • After you've taken off the ear pad there are 3x TR6 screws. Remove these.

  3. A3QmQenHEQh6xwBW

    • After the plastic cover has been taken off you should see the PCB, which has 3x PH000 screws. Remove these as well.

    • To lift the PCB out lift from the top side (opposite side of usb port) and push lightly on the volume wheel.

    • Be careful not to break anything while lifting. I broke the usb port off when doing this.

  4. fJKtX2uX2JfVKtHC

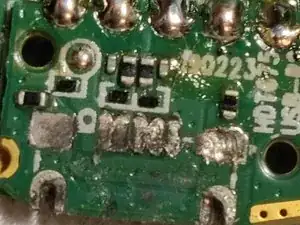

    • Desolder the current USB port. (Im not sure what else to write here.)

  5. GgDUjtHW2JrPWFjw

    • You need to make sure that you are soldering the port the correct way or you could possibly destroy it when plugging it in to charge.

  6. NNBgCovKsD2PMBQB

    • The first image is the result of a usb replacement on a Steelseries Artis 1

    Can you please be more clear about orientations and what breakout board to use? I can’t find one that looks like the one in the image

    Raudy6 -

Conclusione

To reassemble your device, follow some these instructions in reverse order. Don't desolder your new USB port.
