Suzuki FA50 Moped Exhaust Pipe Replacement

Difficoltà

Easy

Passi

3

Tempo Necessario

10 minuti

Introduzione

Use this guide to remove the exhaust pipe from your Suzuki FA50 moped.

  1. dgZpP1hGnFsPUFyG

    • Use a #2 Phillips screwdriver to remove the heat shield from the muffler.

  2. fTBY3b2iCQaVHDX1

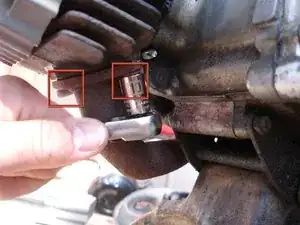

    • There are two 10 mm hex nuts attaching the muffler to the engine. Make sure you remove both of them before proceeding to the next step.

    • Use a 10 mm socket wrench to unscrew the two hex nuts.

  3. PW5cgQ3HsHx1QHr2

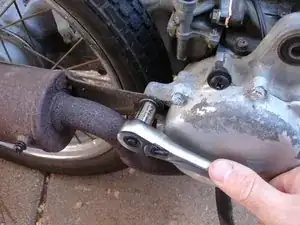

    • Use a 12 mm socket wrench to unscrew the third and final hex nut that holds the muffler in place.

    • Make sure to support the muffler with your hand while removing this nut, otherwise it may just fall to the floor.

Conclusione

To reassemble your device, follow these instructions in reverse order.
