TI-84 Plus Disassembly

Scritto Da: martijn muntenaar
  • Commenti: 2
TI-84 Plus Disassembly

Difficoltà

Moderate

Passi

7

Tempo Necessario

10 minuti

Introduzione

  1. KWwQxHPVcZRsaDPS
    KWwQxHPVcZRsaDPS
    FLEkR5FEM5XkrJSx

    • Be sure the calculator is powered off before proceeding.

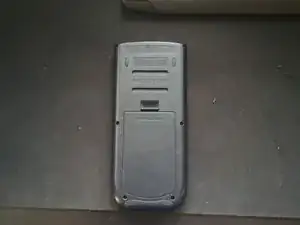

    • Take off the sliding cover, and flip your calculator to the back side.

  2. MN2TbsxsWeIvClpV
    MN2TbsxsWeIvClpV
    gjWnZt1lujRcPliQ

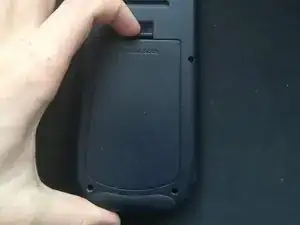

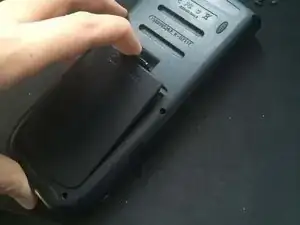

    • Press down on the latch, then remove the battery cover.

  3. G1dngtmOwYZvMUvx
    G1dngtmOwYZvMUvx
    WGkaR5iqBi6ABqdR

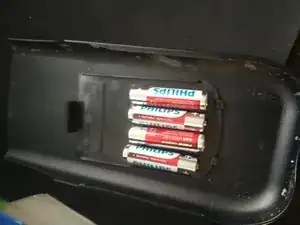

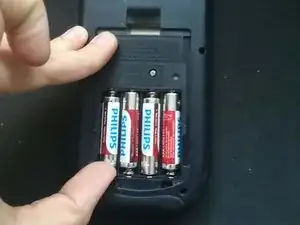

    • Remove the batteries.

    • You can use the battery cover as a plate to keep the batteries.

  4. lxq3NBPT6mTMgmro
    lxq3NBPT6mTMgmro
    vjWBdYwRAWDl5ZgU
    boVHJvLBerQSEOMc

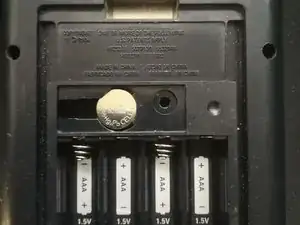

    • Removing this battery will clear your RAM, so be sure that you have made any backups of important data.

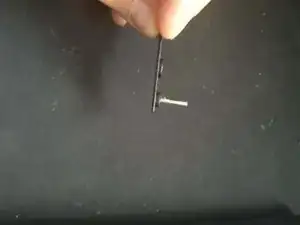

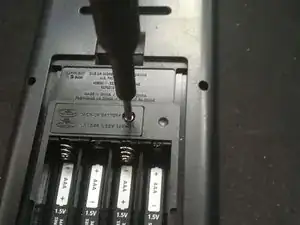

    • Use a Phillips #0 to remove the plate from the back up battery.

  5. BbfJKZnytAWGgAQJ
    BbfJKZnytAWGgAQJ
    P3yvAUXH5CSPkaAA

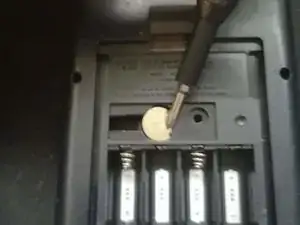

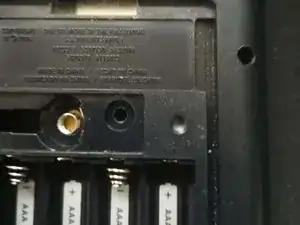

    • remove the backup battery with either a screwdriver or the spudger.

  6. BOSoMTYJ6HMJOR4f

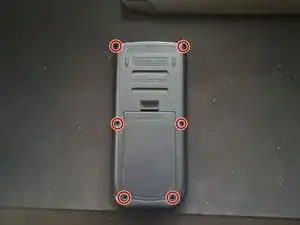

    • you can use a t6 or tr6 take out all six marked screws

    What screwdriver was used in this step. ( not the bit the actual screw. driver

    Graham Denney -

  7. 3weX2HrNhZDExojg
    3weX2HrNhZDExojg
    hOu2cAiETxdThx44
    kKHoObTCFIAxTbCf

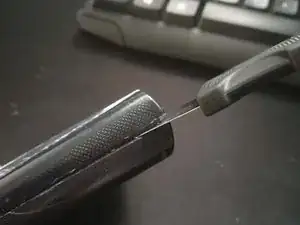

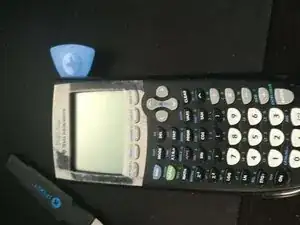

    • Use a prying tool to get a pick into the side and then move it down until its open.

Conclusione

To reassemble your device, follow these instructions in reverse order.
