Tapwave T2907US Zodiac 2 Directional Pad Replacement

Scritto Da: Daniel Wiseman
  • Commenti: 0
Tapwave T2907US Zodiac 2 Directional Pad Replacement

Difficoltà

Moderate

Passi

11

Tempo Necessario

15 - 20 minuti

Introduzione

Use this guide when the directional pad needs to be replaced.

  1. uaSQndbTlPVheii1

    • Remove the four Torx T5 screws from the back panel.

  2. 5PkmVtlxsWZoJYe4

    • Wedge a spudger in between the front and back panel.

    • Apply leverage downwards to the spudger in order to remove the back panel.

  3. pY5Lcu3kNoGEXaBg

    • Slide the battery out from under the brown wire-tape.

    • Be careful of the wires still connected to the other end of the battery. Do not pull or damage may occur.

  4. JdxqifBIyBGAW651

    • Slowly pull the white plug from its receptor. Grasp its sides firmly with a pair of tweezers and gently wiggle from side to side.

  5. cVd5IfejqbWTG5jO

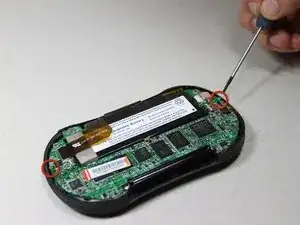

    • Unscrew the 2 Philips #00 screws on each end of the motherboard.

  6. NCEXlysID1ZotVES

    • Pull off the black memory card slot piece.

  7. 2SRQaPEfhJaFQogs

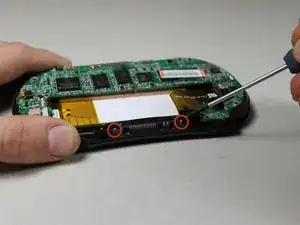

    • Unscrew the 2 Philips #00 screws on each side of the charging port.

  8. vLDK5kBlQRkZajMk
    vLDK5kBlQRkZajMk
    IADJcKRTZCLlieU3

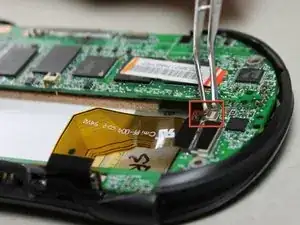

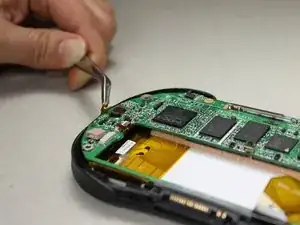

    • Disconnect 2 brown wire-tape ends from each end of the motherboard. Gently pull straight out with tweezers.

  9. PQR5XVFJlpDudXxE

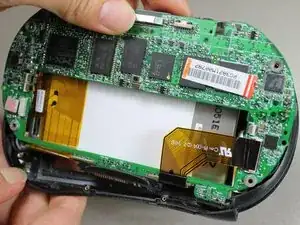

    • Grasp the upper left edge of the motherboard and slide diagonally up and left away from the auxiliary port entrance.

    • Glue connecting the port to the casing may make it difficult to remove. Gently apply force as needed.

  10. BD2KYrUF2JGKXOFw

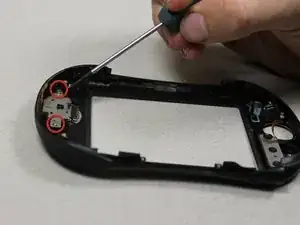

    • Unscrew the 2 silver Philips #00 screws from both sides of the directional pad component on the front casing.

  11. fvMoyYVLJw6aFJSu
    fvMoyYVLJw6aFJSu
    RmkrJiDHvDIpie3j

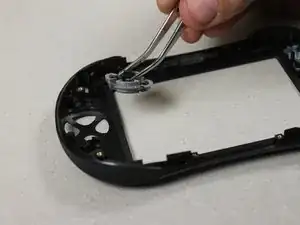

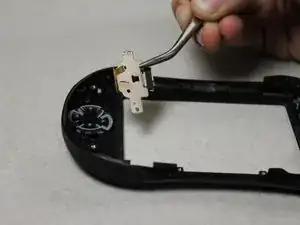

    • Take out the 2 pieces of the directional pad with tweezers.

Conclusione

To reassemble your device, follow these instructions in reverse order.
