Introduzione
Gli smartphone sono molto assetati di potere. La batteria di riserva durerà al massimo un giorno o meno in condizioni di utilizzo normale. Questa guida ti mostrerà come raddoppiare la batteria. Doppio tempo, doppio divertimento.
Avviso:
Giocare con la batteria agli ioni di litio comporta dei rischi. Se non hai le abilità e le conoscenze di base, FERMATI!
La modifica delle batterie al litio potrebbe violare le leggi del tuo paese o regione. È tutta una tua responsabilità!
Domande frequenti (possibilmente)
D: Posso mischiare le batterie, una nuova e l'altra vecchia?
R: Risposta breve: SÌ! Risposta lunga: cerca su Google.
D: Posso farlo su un telefono/batteria non Samsung?
R: Sì. Questo Samsung Galaxy S Duos / S7562 è solo un esempio. Quasi tutti i telefoni, di cui puoi tagliare o ricostruire la custodia posteriore, possono caricare più batterie di quelle per cui è progettato.
D: Il modo migliore per bilanciare la tensione tra le batterie?
A: La mia opinione: scaricali al di sotto di 3,5 V o usali fino allo spegnimento automatico. la batteria scarica ha un'impedenza maggiore e meno energia, entrambi sono buoni per la sicurezza.
D: Cosa devo fare quando SHTF?
A: (è improbabile che accada se segui questa guida) Taglia il filo se hai tempo e lo strumento giusto. Immergi la mazza nell'acqua e fai un passo indietro. Informare le persone nelle vicinanze. Non toccare l'imbottitura finché non si è raffreddata.
Strumenti
Ricambi
-
-

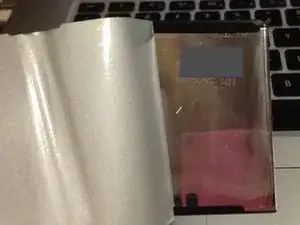

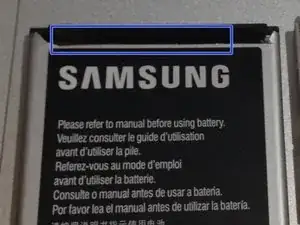

Staccare la pelle, ma non completamente, da UNA batteria.
-
Taglia un po' di pelle dall'altra. entrambe le parti. Fino alla copertura del PCB in plastica nera e facilmente rimovibile.
-
-
-

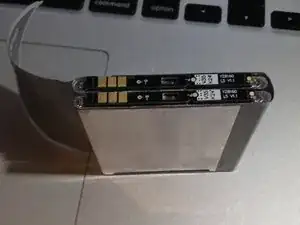

Metti insieme 2 batterie e allineale, pancia a pancia. Legateli con la pelle sbucciata.
-
Rimuovere entrambi i coperchi PCB in plastica nera.
-
-
-

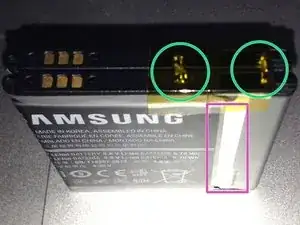

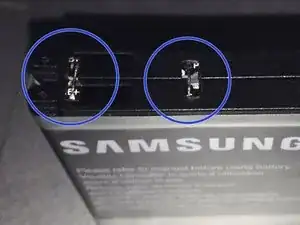

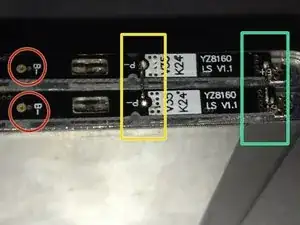

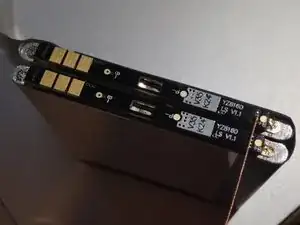

Collega prima un B+ a un altro B+. Usa saldatore e filo da saldatura.
-
Quindi, da P- a P-.
-
Lascia entrambi B- aperti!
-
-
-

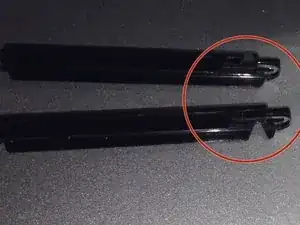

Taglia 2 tacche su ciascuna copertura in plastica delle schede PCB. Posizionale dove si trovano i fili di collegamento e rivolte l'una verso l'altra. In questo modo, i fili non solleveranno le coperture delle PCB.
-
Questi non sono del tutto finiti.
-
Sono queste le cose di cui sto parlando.
-
Rimetti entrambi i coperchi del PCB. Se leghi le batterie troppo strette, potrebbe essere necessario allentarle un po', quindi stringere di nuovo più tardi.
-
-
-
Usa la pelle della batteria pelata per unirle completamente.
-

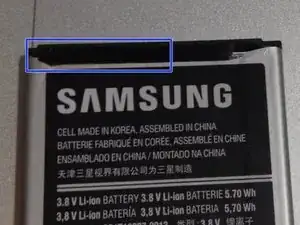

Copri le tacche e i fili con del nastro adesivo. Il nastro PI/Kapton mostrato sarà la scelta migliore, qualsiasi cosa abbastanza sottile e isolata va bene.
-
La pelle è un po' corta per 2 cellule. Anche il metallo esposto dovrebbe essere coperto. Sono il terminale positivo. Non vuoi cortocircuitare qualcosa, vero? (non ancora coperto in queste foto)
-
-
-
Doppia batteria vs singola batteria. :-P
-

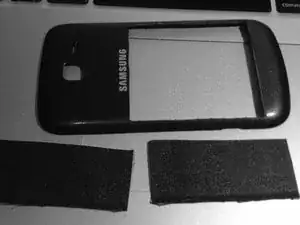

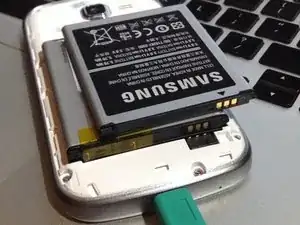

La custodia posteriore non si adatta alla doppia batteria. Tagliali come preferisci.
-

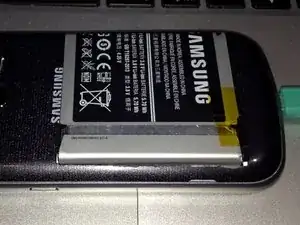

(Non del tutto) Finito. Forse dovrei stampare in 3D una copertina extra e incollarla sul fondello.
-
In realtà ho stampato in 3D una cornice e ho incollato una scheda RFID ritagliata come copertina posteriore. Funzionano bene!
-
Doppia potenza, doppio succo.
