Thrustmaster T3PA Cable Replacement

Difficoltà

Moderate

Passi

3

Tempo Necessario

4 - 7 minuti

Introduzione

  1. GFs1PPr2Jlsn5Oag
    GFs1PPr2Jlsn5Oag
    6RK1XJsLCx26CyUV
    gFQdi5Hb1WgiEFwU

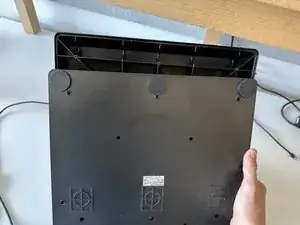

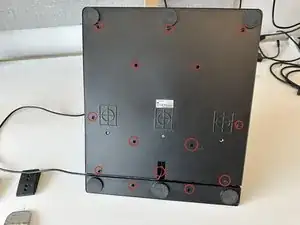

    • Start by flipping it over, rest it on the pedals. make sure the wire is pointing towards the bottom. remove the 14 Screws on the back with a PH2 Phillips head screwdriver and carefully pop it off.

    • (DO NOT COMPLETELY PULL IT OFF BECAUSE OF WIRES.)

  2. r3t5WjfPNUCy2UFn
    r3t5WjfPNUCy2UFn
    ctKOvKwrYBRt3Z1M

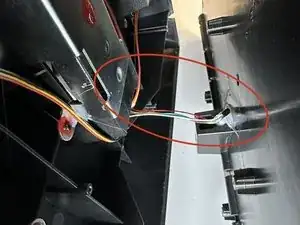

    • Unplug the wire connected to the bottom (the one circled in the image).

  3. 46NFGrhsElBsBX54
    46NFGrhsElBsBX54
    pTabCYADmZECRNmN

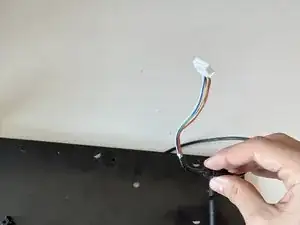

    • Once the bottom is separated, remove the glue holding the wire and pull it out.

Conclusione

For reassembly, simply follow the steps in reverse.
