Thustmaster Ferrari 458 Spider Racing Wheel Gas/Break Pedal Replacement

Scritto Da: Mario Nunez
  • Commenti: 9
Thustmaster Ferrari 458 Spider Racing Wheel Gas/Break Pedal Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

20 minuti

Introduzione

Use this guide to replace broken gas or break pedal.

  1. wh5wAAHTEjRH3vQF
    wh5wAAHTEjRH3vQF
    luw6xLX6yD26JPOQ
    PdCLGSPihbNF3kTf

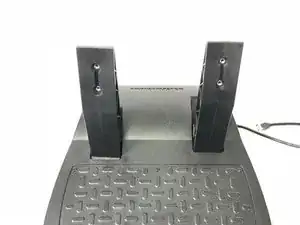

    • Start by removing both pedals. Remove the two black 20mm screws on each pedal using a PH2 Phillips head screw driver.

    • In the picture you see a plastic opening tool instead of screw driver because we did not have our screw driver when we were taking the picture.

  2. iQnMkRmu1xAGHY3q
    iQnMkRmu1xAGHY3q
    tqJvK5XwCnGHoKKC
    Y1uEnmOTpkA2jCPd

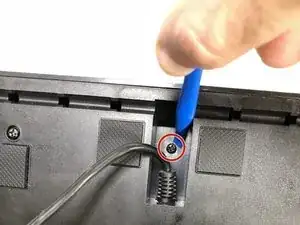

    • Remove the 10mm long black screws on the back of the base using a PH2 Phillips head screw driver. There are 13 screws total.

    • Gently lift cover out to access inside.

    • There is a screw behind the cable.

    • In the picture you see a plastic opining tool instead of screw driver because we did not have our screw driver when we were taking the picture.

    Does the adapter come with the pedals.

    Jan Butler -

    Does the adapter come with the thrustmaster pedals

    Jan Butler -

  3. cBLwjG5jPDDxtuEZ
    cBLwjG5jPDDxtuEZ
    GuJZdUEsM2ToSwLy

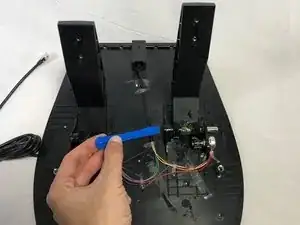

    • Push the pin that holds the pedal out from middle outward.

    • There are two springs that hold the pedal upward. Make sure the pin goes through the springs and the pedal when installing new pedal.

    I’m in need of the rotary switch # B25k45 you see in your pic that controls the speed, I’m having trouble finding them and can’t race till I do, Please help drmwevr1970@gmail

    drmwevr70 -

  4. gquOIRArlAWO6dvu

    • Install the new pedal with springs and pin and make sure that the pin holds them together.

    • Add a little grease on pin when installing the new pedal.

    • Repeat steps in reverse to reassemble device.

    • Wash your hands after you finish dealing with grease. it is a dangerous material will cause problems if it gets in your eyes or get swallowed.

Conclusione

To reassemble your device, follow these instructions in reverse order.
