Toshiba Qosmio X305-Q704 RAM Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

5 - 7 minuti

Introduzione

If your computer is running slow or becomes cold this can be due to a faulty RAM or you not having enough RAM in the computer. Use this guide to remove and replace your RAM.

  1. ffK4SCyPIZVZ6qBT

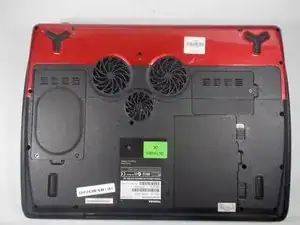

    • Flip your device over so that you're facing the back cover of your device.

  2. w2HYXjhm6IwByCOq
    w2HYXjhm6IwByCOq
    PoebqSaJnhLS4EYC
    ybJo5vHCgxXPTu2W

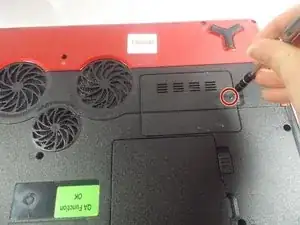

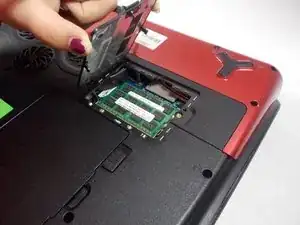

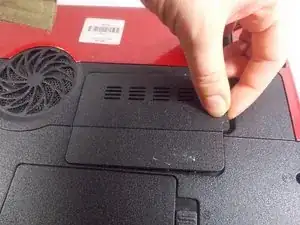

    • Use a Phillips #0 screwdriver to unscrew the single 8 mm screw and remove the RAM cover.

  3. FEyG3tiKL41Fo2w2
    FEyG3tiKL41Fo2w2
    GHIwVkGjNpQ5RLHu
    D5T3IALXfxtHUaoB

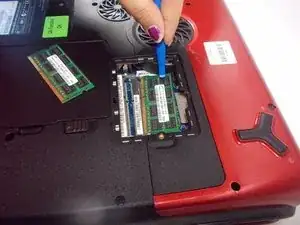

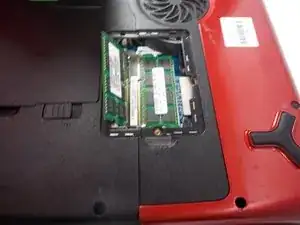

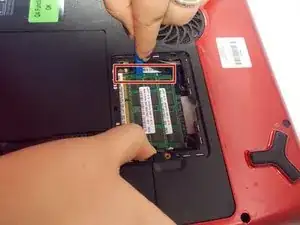

    • Using the iFixit opening tools, press on the two metal pieces holding the RAM cartridge in place. Do this for both RAM cards.

    • The card will pop up at an angle so you can remove it by hand.

  4. Wj2oAxwqk2wEm52f

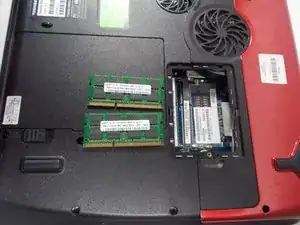

    • Remove the RAM sticks from your device.

Conclusione

To reassemble your device, follow these instructions in reverse order.
