Introduzione
If your disks run on other devices but not this laptop, use this guide to replace the CD Drive.
Strumenti
-
-
Hold the switch on the left and pull the battery up towards you, using the marked tab, to take it out.
-
-
-
Use a JIS #0 screwdriver to unscrew the two 4.6 mm screws at the base of the casing.
-
Pull off the part of the case that's now loose by the indicated tab.
-
-
-

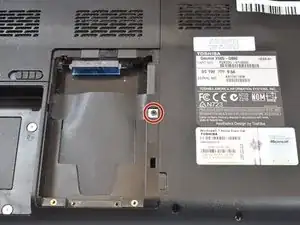

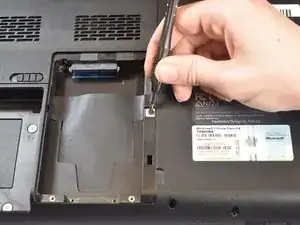

Take out the 4.7mm long JIS #0 screw with a JIS Screwdriver.
-

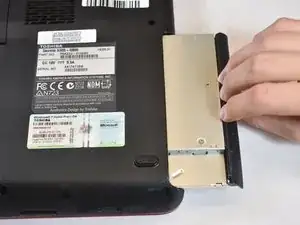

The CD Drive is now loose. Pull it straight out of the side.
-
Conclusione
To reassemble your device, follow these instructions in reverse order.
