Toshiba Satellite 1415-S105 Hard Drive Replacement

Scritto Da: Kiril Lange
  • Commenti: 0
Toshiba Satellite 1415-S105 Hard Drive Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

2 - 3 minuti

Introduzione

Replacing or upgrading the hard drive is a simple procedure that results in improved storage and functionality.

  1. w4msDFFjd2CsafiM
    w4msDFFjd2CsafiM
    SGdsu4LVtHpgisKQ

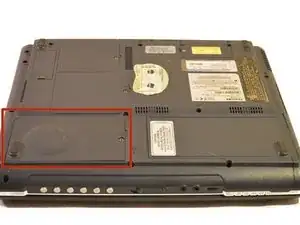

    • The hard drive is located on the front left of your laptop.

  2. 63uygXOHoPnPJxsM

    • Unscrew the single small screw labeled F4 located on the right side of the panel.

  3. Z4vHZXNtUETIJlu3
    Z4vHZXNtUETIJlu3
    PRW12BFOvZQyOXMs

    • Insert a spudger into the indent near the screw to pry open and remove the cover.

  4. XsDGImXUxdU5Mecc
    XsDGImXUxdU5Mecc
    1Ba1BrOWeTIRSnEo

    • Use a spudger to disconnect the hard drive by shifting the entire drive to the right.

  5. htUTW1uQMT3LEPDw
    htUTW1uQMT3LEPDw
    2TB4vq2i1bOCaVvG

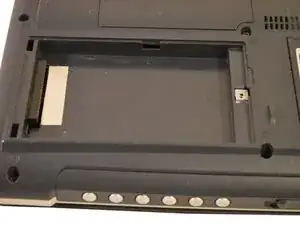

    • Lift the hard drive up and out of the laptop.

Conclusione

To reassemble your device, follow these instructions in reverse order.
