Toshiba Satellite C55-B5302 Hard Drive Replacement

Scritto Da: Jeff Sims
  • Commenti: 0
Toshiba Satellite C55-B5302 Hard Drive Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

10 - 15 minuti

Introduzione

Before starting this process you will need to remove the battery and take off the cover. It's easier than it looks and only requires a Phillips #0 screwdriver and a plastic opening tool. Expect to take about 10 minutes for this process from start to finish.

  1. N2IQuIrDTPLkEPQP
    N2IQuIrDTPLkEPQP
    krJIhOqkAicJOOi3

    • Flip laptop upside down so you can see the screws.

  2. eKKsUJ51G3gKaNvk
    eKKsUJ51G3gKaNvk
    jtO41mP4roFDu5Vj

    • Using the Phillips #0 screwdriver, remove the two 7 mm screws from the back casing.

  3. AQURyfJFiDZ3Y6rs

    • Pull the battery from the back of the laptop for removal from the laptop.

  4. Kj32nKqYaQXeOhij
    Kj32nKqYaQXeOhij
    hYgIKXiIZ3KYNILS
    SJUVLNT6UNnBnnGX

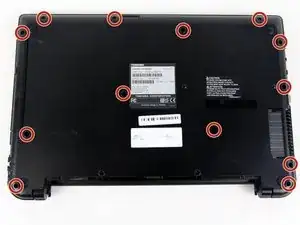

    • Remove the remaining 7 mm screws on the back panel of the laptop with a Phillips #0 screwdriver.

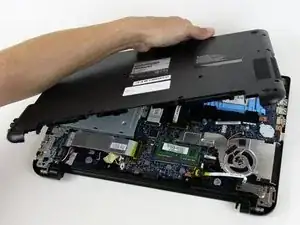

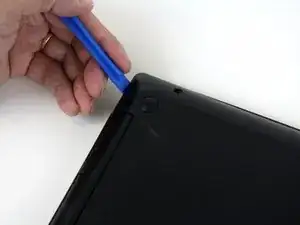

    • Use the plastic opening tool to pry up a corner of the back panel and continue to pop the back panel off.

    • Expect to hear popping as you pull the back panel off.

  5. tIRhQIIUJPE3iPKE
    tIRhQIIUJPE3iPKE
    a55DeWnlKG4tHOL2

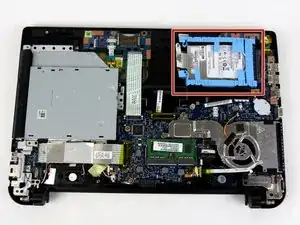

    • The hard drive is held in place with a soft, blue rubber retainer. The retainer can be disconnected by pulling up on the two tabs at the left side of the hard drive in these images.

  6. k3d6eT4wjCGcMrbh

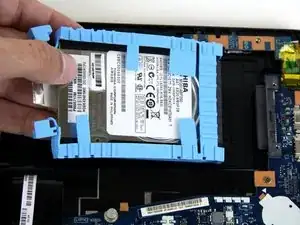

    • Gently pull the hard drive away from the connection to remove it from the laptop.

Conclusione

To reassemble your device, follow these instructions in reverse order.
