Toshiba Satellite Click 2 Pro Battery Replacement

Scritto Da: Paul DeOrsey
  • Commenti: 1
Toshiba Satellite Click 2 Pro Battery Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

10 minuti

Introduzione

This guide is to help you remove a unresponsive battery or one that does not charge. In the case of a non-working battery it is recommended to replace the damaged one. Tools will be required for the removal of the battery.

  1. 2xPjFWPpV126Vwax

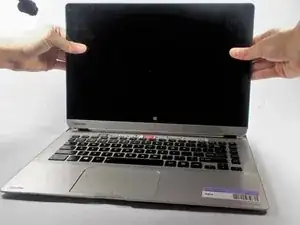

    2xPjFWPpV126Vwax

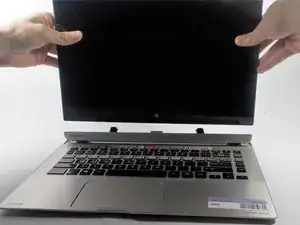

    Jr1oSkpBP5IOIoNi

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

    • Push down on the tablet sides until you feel a click, then pull up.

    • This will separate the tablet from the detachable base, make sure to hold down the keyboard for easier detachment.

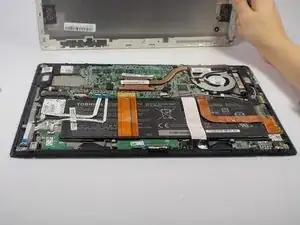

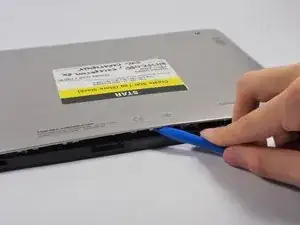

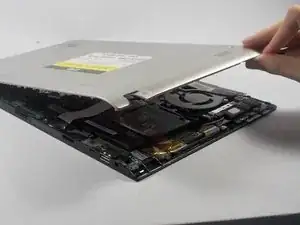

  2. qgXcdBw5TroH5Ora
    qgXcdBw5TroH5Ora
    V5QFMCDNLoMCM2ma
    TWiy6aLFm2gcYGtH

    • Remove the base of the tablet from the screen using a plastic opening tool.

    • Make sure to separate the base evenly on both sides when removing it from the screen.

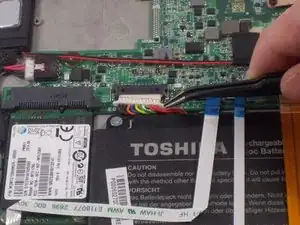

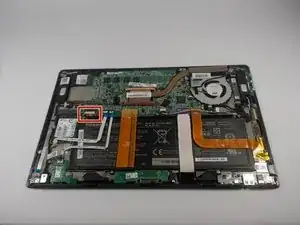

  3. pedg6FJg6vFDOlak
    pedg6FJg6vFDOlak
    QcZKXsAFeWeepICW

    • Remove the battery power connector using ESD safe tweezers.

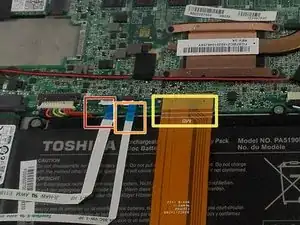

  4. gqBDIP2IXLQOdsLV
    gqBDIP2IXLQOdsLV

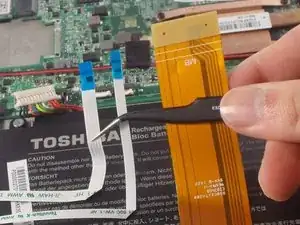

    BrN3VDsCMu5unNmZ

    • Remove the LED ribbon cable using ESD safe tweezers.

    • Remove the SIM card ribbon cable using ESD safe tweezers.

    • Remove the Docking connector ribbon cable using plastic opening tool.

    • The ribbons may be stuck to the battery so make sure to peel off gently to prevent damage.

    • Make sure to flip up the white connector attached to the LED and Sim Card ribbons before removing them .

  5. Okmo62oFJyCc3Vcw

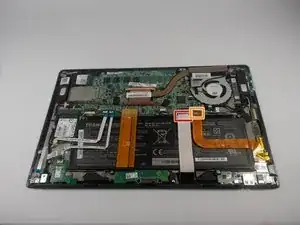

    Okmo62oFJyCc3Vcw

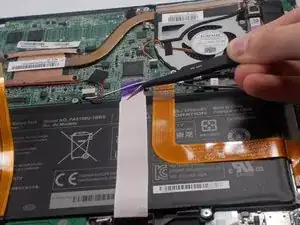

    tcM6KbOMv6mmWdTj

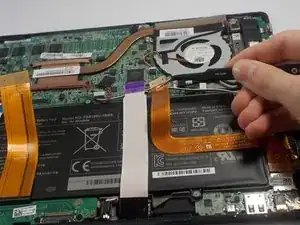

    2XROSX2yFdT44JID

    • Remove the LCD Display ribbon cable using a plastic opening tool.

    • Remove the I/O ribbon cable using a plastic opening tool.

    • The ribbons may be stuck to the battery so make sure to peel them off gently to prevent damage.

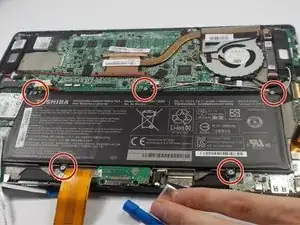

  6. e3pt2ImFr1Dc2wqs
    e3pt2ImFr1Dc2wqs

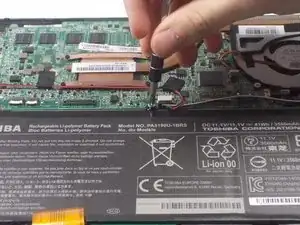

    uEJviuKO6p6VvBow

    • Remove five 3.5mm Phillips J0 screws using a Phillips screw driver.

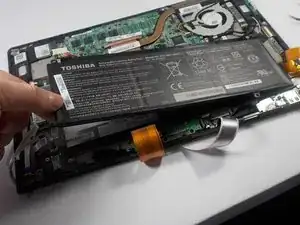

  7. PTREn4cvjbv6CQtF

    • Remove the battery from its holding position.

Conclusione

To reassemble your device, follow these instructions in reverse order.
