Introduzione
The Toshiba Satellite E45-B4200, may eventually have problems with the speakers through faulty wires, bad drivers, etc. This could cause the speakers to crackle, make popping sounds, or have a worse overall audio quality. When this happens, the speakers are replaceable, and this guide will explain how to replace them if this occurs. Before replacement, ensure there aren't any other issues you could have through Toshiba Satellite E45-B4200 Troubleshooting.
Before beginning this repair, be sure to power off the laptop, disconnect from the charger and remove the external battery. This device didn't come with a battery so we weren't able to include images or instruction on removing it.
-
-

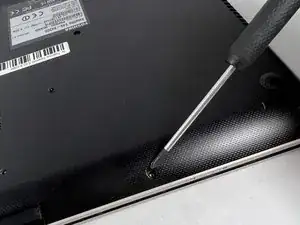

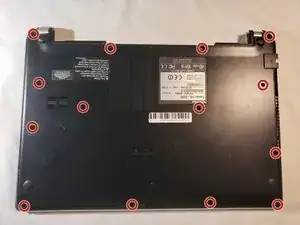

Use a Phillips #0 screwdriver to remove fourteen 3.75 mm screws from the back cover.
-

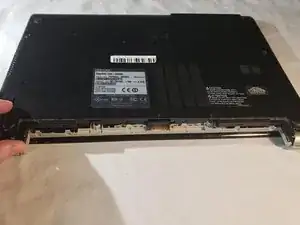

Use a spudger or opening tool to gently separate the back cover from the top of the device. Work your way around the perimeter of the laptop and undo the clips with the spudger.
-
Remove the back case.
-
-
-

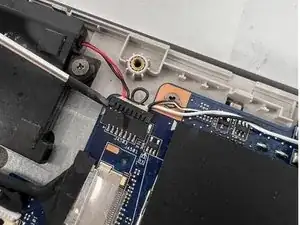

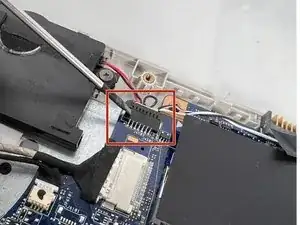

To remove the speakers from the motherboard, pull the speaker cables away from the connector in the same direction that the individual wires are running.
-
-
-

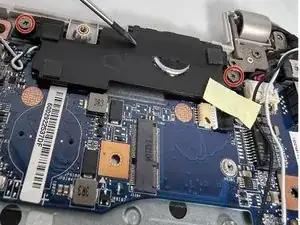

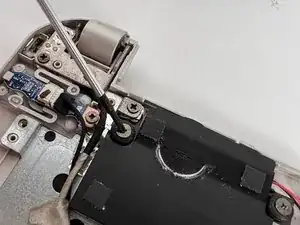

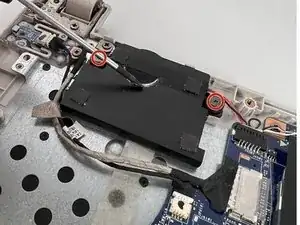

Using a Phillips #0 screwdriver, unscrew the two screws from each speaker, that hold them in place.
-
-
-

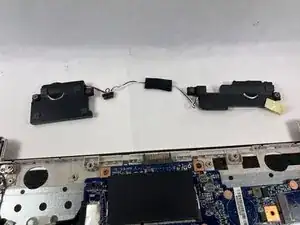

Gently remove the speakers from the laptop. Make sure to disconnect the speaker wires from the frame prior to lifting the speakers out.
-
To reassemble your device, follow these instructions in reverse order.
