Toshiba Satellite P75-A7100 Motherboard Replacement

Scritto Da: Mia Manzanares
  • Commenti: 2
Toshiba Satellite P75-A7100 Motherboard Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

25 - 35 minuti

Introduzione

In this guide, we will show you how to replace your computer's motherboard. It is important to replace your motherboard when your computer does not fully re-boot at all.

  1. SdOpbQtbGuPtjlKc
    SdOpbQtbGuPtjlKc
    lYHCAJyb6iJU2gYw

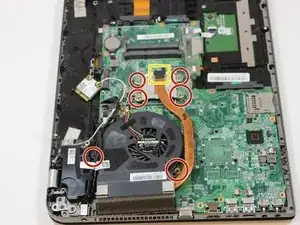

    • Using a Phillips #1 screwdriver, unscrew the 6 remaining screws attached to the fan.

    • Unplug the connector connecting the fan to the motherboard.

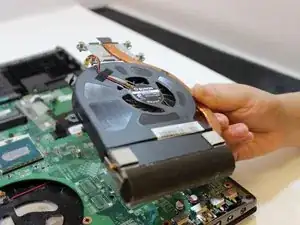

    • Remove the fan from the device.

  2. qhoRCYWO4EDeZEOf

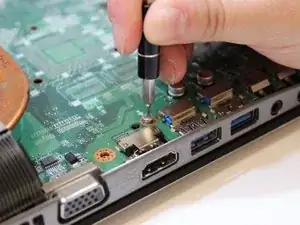

    • Take out all remaining screws in the motherboard.

  3. HdhGNIKuHds1NwOU
    HdhGNIKuHds1NwOU
    lrdSvCTtZ2aWLTe6
    LVF5ImvNjUhbSNPV

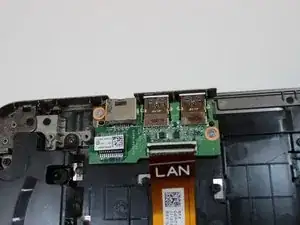

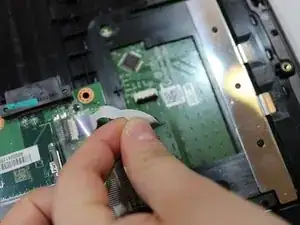

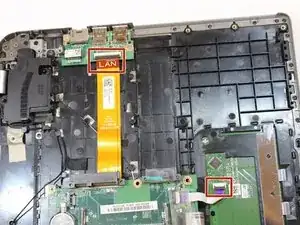

    • Disconnect the purple and orange ZIF connectors from the motherboard.

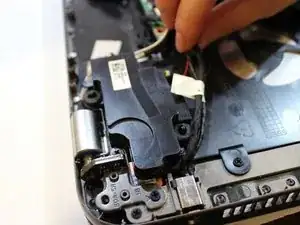

  4. oIABBDaYsikmVcXF
    oIABBDaYsikmVcXF
    WG1EXcZcKQhQ6UAY

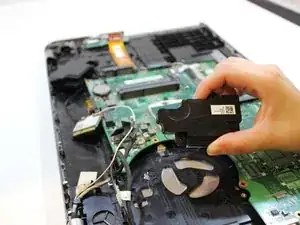

    • Remove cartridges from laptop by lifting them up.

  5. bvMdr1UqGLQirqTr

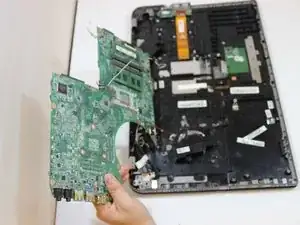

    • Disconnect all wires from the motherboard and replace motherboard.

Conclusione

To reassemble your device, follow these instructions in reverse order.
