Triace A310 Brake Pad Replacement

Scritto Da: Ben Hartinger
  • Commenti: 0
Triace A310 Brake Pad Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

20 minuti

Introduzione

When your brakes get worn down, they need to be replaced. This will help keep you safe as you ride.

  1. qkoHm3yHNupaS35Y
    qkoHm3yHNupaS35Y
    HNMRUHtJHDLLbhNU

    • Note: In this repair guide the pictures are taken with the tire removed so that it is easier to follow our steps. However, removing the tire is not necessary to replace the brake pads.

    • Unscrew the brake pad cap with a T25 screwdriver bit.

  2. H6ESnVNhkEbFWmOX
    H6ESnVNhkEbFWmOX
    lMJ4gaJNJHyQrfMR
    UjqLqBx2ikoRbv3y

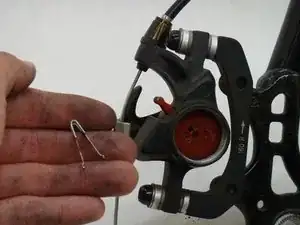

    • Grab and pull out the spring between the brake pads.

  3. jDoPpLPEMZUeKxqS
    jDoPpLPEMZUeKxqS
    2MdbkYrXgdfOB2Ic
    XLuhoNmBRlEjQx1n

    • Slide out the back brake pad first. Then slide out the front brake pad.

  4. onkdcsFcVfWh3Oo6
    onkdcsFcVfWh3Oo6
    wU24dvClxWdLmocw

    • Slide in the new brake pads with the first going in the front.

  5. lwrrSrVSTyMHcHPp
    lwrrSrVSTyMHcHPp
    DECBuoSkiZCTUkhh
    CK4ucQQKDuobddev

    • Then slide in the other pad in the back.

    • Make sure each brake pad is facing the right way.

  6. EUHRlZLZpV3CnM5L
    EUHRlZLZpV3CnM5L
    tmJHZjwwM3NcFFwf
    crnixrowDpjfmyqH

    • Push the spring back into place between the two brake pads so the spring is visible in the hole shown here.

  7. IHMc6CIYatktfV6i
    IHMc6CIYatktfV6i
    uy1NtseHLBoVnPNn

    • Screw the brake pad cap back on.

  8. xkLSfjCWNYJdoUFX

    • Adjust the red knob as necessary (directions are noted on the knob).

    • Be sure to test your brakes thoroughly in a safe, low-speed environment.

Conclusione

Now your bike should actually be able to stop.
