Tribit XSound Go TS-BTS20 Battery Replacement

Scritto Da: Emma Britt
  • Commenti: 3
Tribit XSound Go TS-BTS20 Battery Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

15 - 20 minuti

Introduzione

This guide will help you replace the batteries of your Tribit X Sound Go speaker.

Note: There might be a swollen battery or battery acid, please use caution.

Strumenti

  1. h3MTBUPaikoxrPmL
    h3MTBUPaikoxrPmL
    X6EWjCPXjMZoUjHY

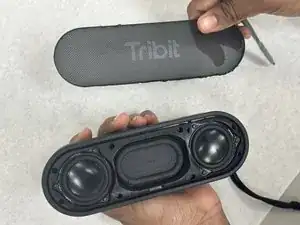

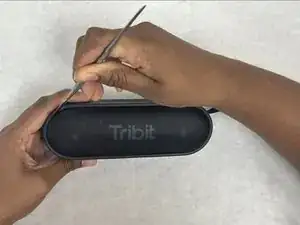

    • Insert a spudger in the seam between the front speaker grill and chassis.

    • Pry around the perimeter until the front grill releases.

    • Remove the front grill.

  2. bVf3SRC5GHMdirtl

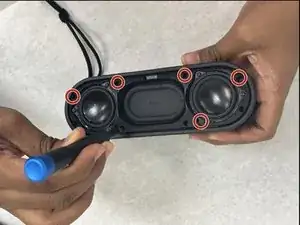

    • Remove the 14 Phillips screws around the perimeter of the speaker.

    • Lift off the speaker housing.

  3. YX6uKFEAuQ1m31MS

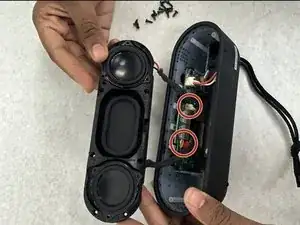

    • Disconnect the white speaker connections by gently pulling up with tweezers.

  4. ylAcRgdK2UeMfPnJ

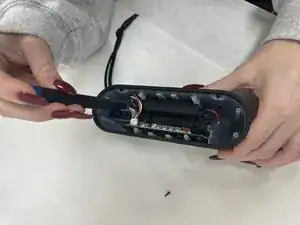

    • Find the battery cover.

    • Use a screwdriver to unscrew the sides of the covering.

  5. 5DJeGc1kpHYCXJOw

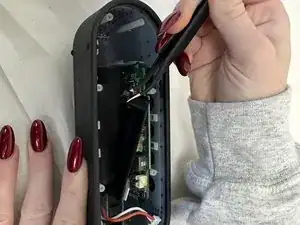

    • Pull the covering up with a pair of tweezers.

  6. wIFJUFRZUxMsK2yy

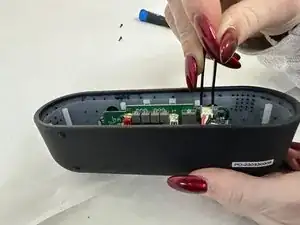

    • Disconnect the batteries by pulling the battery connectors directly out of their motherboard ports.

  7. lGM2vMTdShdEFKVy

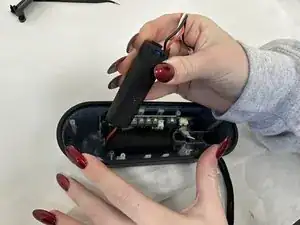

    • Gently pull the batteries out of the speaker.

    Oh so what comes next? Does the other end have a connector that can be removed or is it soldered to the PCB? I assume the battery is an 18650 but I can't be 100% certain because there is no image showing the battery specs so I have to tear it down and then order a battery instead of having one that I can just swap in. Actually can the battery just be swapped out or is there soldering involved or do you need to purchase a battery with the connectors already spot welded it?

    You did so well but failed to finish the tutorial off.

    Joseph King -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Emma Britt

Membro da: 12/09/23

166 Reputazione

2 commenti

I couldn't find online the exact battery replacement, any suggestions?

fred -

Same here. What is the replacement battery number?
