UK-830LN Disassembly

Scritto Da: Turtle
  • Commenti: 0
UK-830LN Disassembly

Difficoltà

Moderate

Passi

8

Tempo Necessario

20 - 35 minuti

Introduzione

This is an article on how to disassemble the LM-830LN electrical tester except for liquid crystals and other parts with high risk of damage.

  1. NXBIySIgX6fBLiHo
    NXBIySIgX6fBLiHo
    E1AMjmrocwNLZs4c
    V6jxhJOZxPirLyYg

    • The case is made of flexible silicone and can be easily peeled off.

  2. profIfclZMsIn5q4
    profIfclZMsIn5q4
    R6FCfIOACWYFumhn
    D4vxRaDssHbQgKSF

    • Loosen (remove) the two screws on the back by installing the J1 (JIS1) standard screwdriver bit of the ifixit pro tech toolkit.

  3. u5cMwbZEZCOPPLS5
    u5cMwbZEZCOPPLS5
    sQQvFOVKJREoPFs6
    dyWQtsCSFXeiGKrx

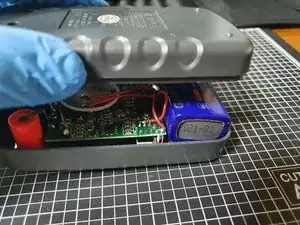

    • At first, there is a latch on the upper part, so only the lower part is lifted as much as it is lifted without force.

    • After lifting only as much as it can be lifted, pull it very slightly in the direction of the arrow in the photo, thinking that it is moving only 1mm very weakly. Very little!

  4. Yb16xqELPEFxbgxo

    • This step is inserted in the middle to show the internal structure

  5. WFFfPeWWFui6oNWP
    WFFfPeWWFui6oNWP
    hwHXVDfkmmLj5m2A

    • Disconnect the 9V battery from the device.

    • Be careful not to cut the battery cable at this time.

  6. Tmye1QwPfKJBUPVN
    Tmye1QwPfKJBUPVN
    AVVMQIToOktaeaq6

    • Remove (unscrew) only the screws shown in the picture

    • At this time, the driver bit uses J0 (JIS0).

  7. cs4KHHuYQfrLG6gm

    • A = operation mode selection switch (inner connect)

    • A = operation mode setting switch (internal contact)

  8. 2uoRNa2VPLSyFEkm

    • A' = Lubricated Steel Beads

    • A' = lubricated iron beads

Conclusione

To reassemble the unit, follow the instructions in reverse order.
