VTech CS6719-2 Screen Replacement

Scritto Da: Joshua Woodward
  • Commenti: 0
VTech CS6719-2 Screen Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

7 minuti

Introduzione

During this guide, the back of the phone and the circuit board will need to be taken off to access the plastic screen.

  1. p6Wmu36OGRrgBEB1
    p6Wmu36OGRrgBEB1
    1ZgGJSWtCTWfZkF3

    • Push down on the battery cover in the direction of the arrow located on the back of the phone.

  2. DBV2lKknUQaZTjOC

    • Pull the battery cover off of the back of the phone.

  3. GAAsHvSaIZsyQHIR

    • Unplug the battery input cable.

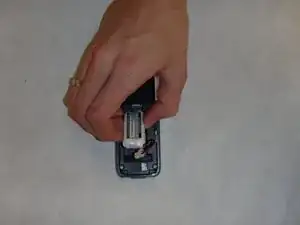

  4. IRCps2BEPXiYhbBP

    • Lift the battery out of the back of the phone.

  5. LKKoSFNYjxMyZMoN
    LKKoSFNYjxMyZMoN
    lONCbpA3PS3X2Nvy

    • Remove the two 9mm screws on the back side with a Phillips #0 screwdriver.

  6. wdb41INRVof5UR6e

    • Use the plastic opening tool and spudger to pry the back side of the phone off.

  7. kvXwUW2SP1PPR2cC
    kvXwUW2SP1PPR2cC
    dVRhrUxRgXGEXOSm

    • Remove the two 9mm screws located inside the back cover at the top.

  8. SVdGIKFlWL4WXsgp

    • Remove the plastic screen.

Conclusione

To reassemble your device, follow these instructions in reverse order.
