Introduzione
The main housing is the yellow (or pink depending on the version) casing around most of the flashlight. This is a prerequisite guide for most other guides for this flashlight since it holds together the majority of the parts.
Strumenti
-
-
Locate the battery housing on the back of the flashlight as pictured.
-
Unscrew the single 8 mm Phillips #1 screw.
-

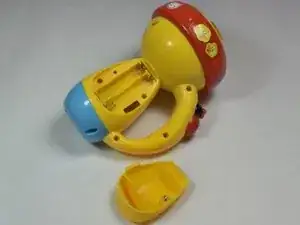

Lift the battery housing cover to reveal the battery terminals. Remove the batteries.
-
-
-

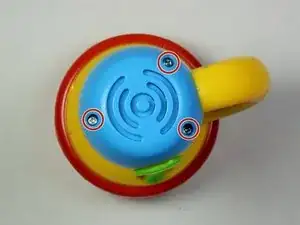

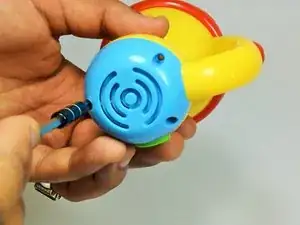

Locate the light blue speaker housing on the bottom of the flashlight.
-
Remove the three 6 mm Phillips #0 screws.
-

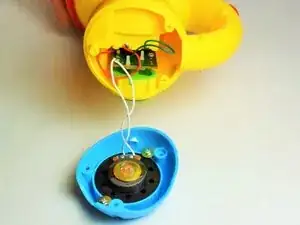

Once the screws have been removed, pull the housing away from the yellow body of the flashlight. Be careful not to disconnect the white wires from the speaker, unless speaker replacement is required.
-
-
-

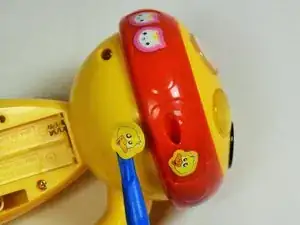

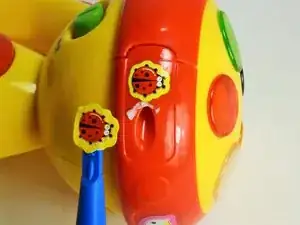

Locate the screw covering stickers on the side of the red ring. These two stickers will be slightly larger than the normal stickers. In this case it was a ladybug and a duck on opposite sides of the ring.
-

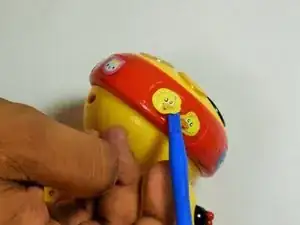

With a plastic opening tool, gently remove the stickers by prying around the edges. Be careful with these as you will want to reapply them later
-
-
-

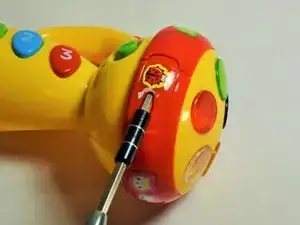

Remove the two 8mm Phillips #0 screws from the screw channels found under the stickers in step one. This can be seen in the first photo if step 2.
-

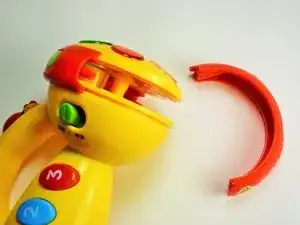

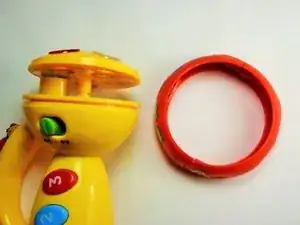

Once the screws have been successfully removed, grasp one half of the ring and pull gently to separate it from the yellow housing. Repeat on the opposite side and the ring is disassembled.
-
-
-

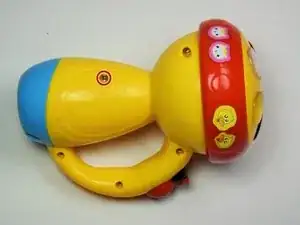

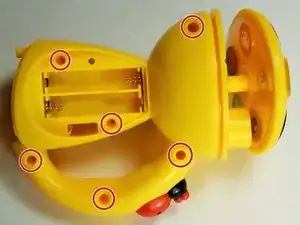

Unscrew the six 8 mm Phillips #0 screws at each of the points circled in red in the first image.
-

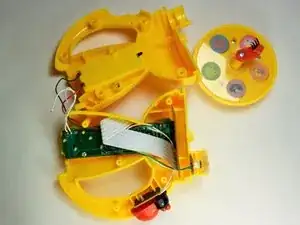

To open, separate the two sides of the housing. They should come apart fairly easily, however you may use a spudger to pry it open. Once it's apart, it should look like the second image.
-
To reassemble your device, follow these instructions in reverse order.
