Introduzione

USB port not working anymore? Screen scratched, cracked, or broken? Or is the watch failing to work altogether? This guide can help. Note: This guide requires soldering.

  1. XvXTq16eI1hk6jf1

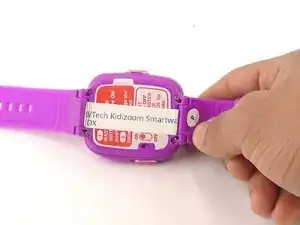

    • Make sure the master switch is "OFF" before disassembly, to avoid an electric shock.

    • Flip the watch over with the back facing up.

    can you add some infomaton on what kids can do to fix it

    Kehinde Abiodun -

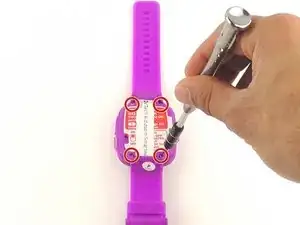

  2. G1RJlrYb3vNUIKkk

    • Remove the four 6.0 mm screws on the back plate with the Phillips #00 screwdriver.

    I can't get the last two screws off!

    Grant Garbe -

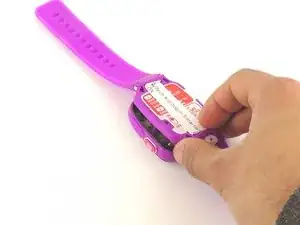

  3. W5wMmGAUfCPAWMuu

    • Gently pull the back plate from the watch casing.

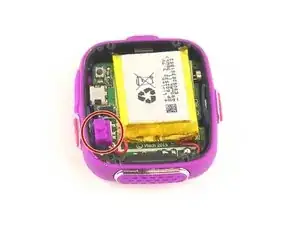

  4. aRkGrp4sxDofQlrJ
    aRkGrp4sxDofQlrJ

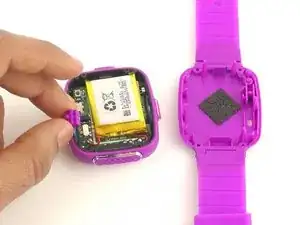

    VJ4pBJ4iV2OGXiwm

    • Lift the master switch from the circuit board.

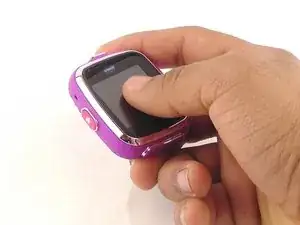

  5. AL3UEDAvKiaAqkXm
    AL3UEDAvKiaAqkXm

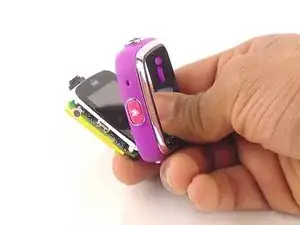

    2XBHASxIknUcXLXq

    • The speaker wires are fragile. They may break if excessive force is used to remove the circuit board.

    • Removal of the circuit board requires soldering.

    • Gently push on the display from the front, near the camera. The circuit board and display will pop out through the back.

  6. fYsuBfU32VVVNdWT

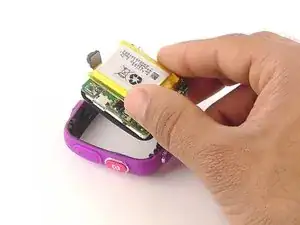

    • Lift the circuit board carefully from the casing, without breaking or detaching the speaker wires at the bottom of the circuit board.

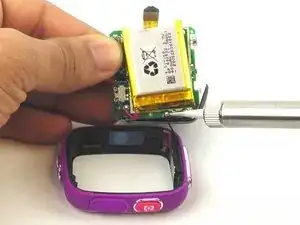

  7. fYnTfXlbyGdEPXYu

    • Note which wire is connected to which lead before continuing. There are no markers on the circuit board to indicate where each wire belongs.

    • De-solder the black speaker wire from the circuit board.

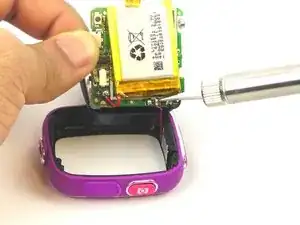

  8. HxJKpsRHRbARsUM4

    • De-solder the red speaker wire, as in the previous step.

  9. jep4m2n3AU2I3vYC

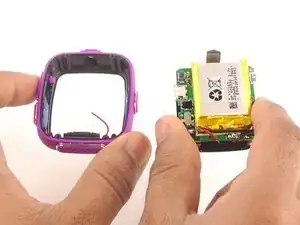

    • Wait for the solder to cool down and solidify, then remove the circuit board from the casing.

Conclusione

To reassemble your device, follow these instructions in reverse order.
