WRS315SDHW Water Filter Housing Replacement

Scritto Da: nicO
  • Commenti: 0
WRS315SDHW Water Filter Housing Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

30 - 45 minuti

Introduzione

Use this guide to replace the water filter housing in your Whirlpool WRS315SDHW Refrigerator.

The water filter housing stores the water filter and connects it to the water inlet valve assembly.

Note: Some photos show the doors removed for clarity purposes. Removing them is not required and will not change the procedure.

  1. GAB31IUS1UwNdE6E

    • Before you begin your repair, perform the following:

    • Turn off your main water supply

    • Unplug your device

  2. uZnovp3POltPPcNl
    uZnovp3POltPPcNl
    EEmEHtDyinkLLTC6
    NpS45AODrJVIyexU

    • Depending on your repair, open one or both doors.

  3. wW1LVBI3TRSUOnOh
    wW1LVBI3TRSUOnOh
    QOkYrIUrXQH5jfjq
    liaaPTJeyjVcmEOK

    • Use a Phillips driver to remove the two 15.2 mm-long screws securing the front panel.

  4. pkgPNWrR6cBBcleQ
    pkgPNWrR6cBBcleQ
    Z1cSFvhnp4ZSABoY
    khFOKgYpNOJOIZxg

    • Pull the front panel straight off the chassis and remove it.

    • You may have to slightly open the water filter door to remove the front panel completely.

  5. NiKnnDsLmhtxl4BC

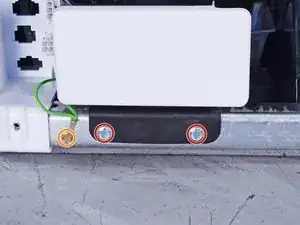

    • Use a 1/4 inch socket wrench to remove the two 18.9 mm-long screws securing the water filter housing.

    • Use a 1/4 inch socket wrench, or a flathead screwdriver, to remove the 15.6 mm-long screw securing the wire harness grounding wire.

  6. yYgL3syVjmDvoqkw
    yYgL3syVjmDvoqkw
    EXEooOoicjtJCsrN

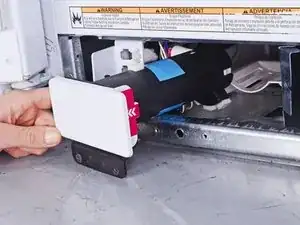

    • Pull the housing out of the chassis enough to access its left-hand water connections.

  7. QZloDZTQalug2RAM
    QZloDZTQalug2RAM
    uIM1epOlHrBbVXrX
    wXtANckdcWPc6VRC

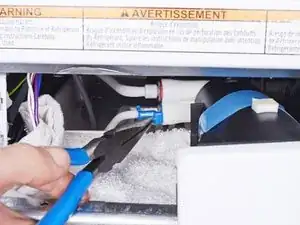

    • Place a clean and dry rag under the water hoses.

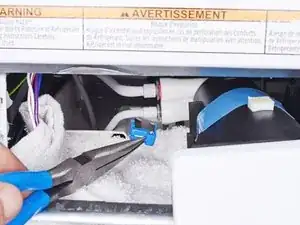

    • Use needle nose pliers, or your fingers, to remove the blue clip on the bottom water hose.

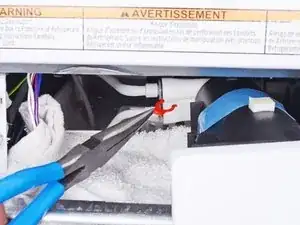

    • Repeat for the red clip on the top water hose.

  8. cFwtGlO13ikGIMjb

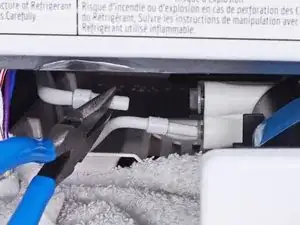

    • Compress the plastic ring near the end of the water hose.

    • While compressing the ring, pull the hose away from the ring to disconnect it.

    • Repeat for the other water hose.

  9. iSOKybKsqVsxuqgT

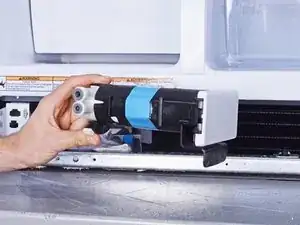

    • Remove the water filter housing.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
