Waka Waka Power Plus Battery Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

30 minuti

Introduzione

In this guide you will learn, step-by-step, how to open the Waka Waka Power Plus and remove the battery.

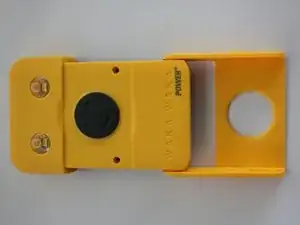

  1. AHXhZEB6jEdZ1FDt
    AHXhZEB6jEdZ1FDt
    FXWIXUHdCLbMZEPD

    • Lay device so power button is facing up.

    • Lift the plastic cover from the center of the device.

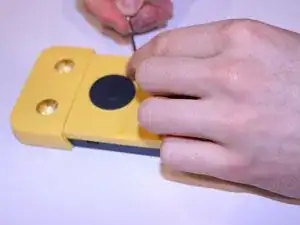

  2. iiiqcxJKiQfHIXNG
    iiiqcxJKiQfHIXNG
    1vaNXmWlnJ4Kw6gb

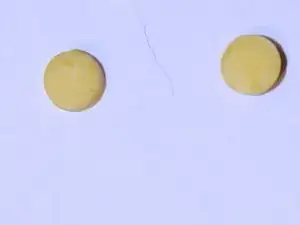

    • Remove yellow rubber dots.

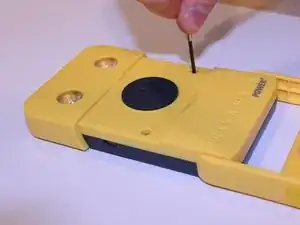

  3. XMnO4yEbbthhfCE2

    • Remove the two 5mm screws with a #0 Phillips screwdriver.

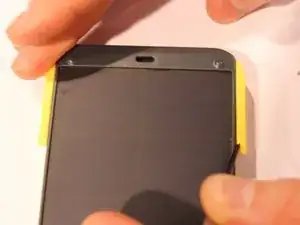

  4. fCNaD4ESpALKg1nW
    fCNaD4ESpALKg1nW
    KUEOSGKrDVosFpZq

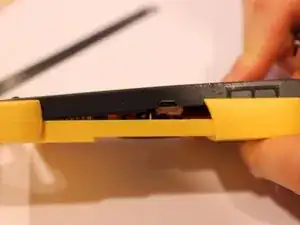

    • Carefully remove yellow casing.

    • This might take prying force.

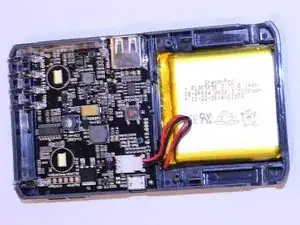

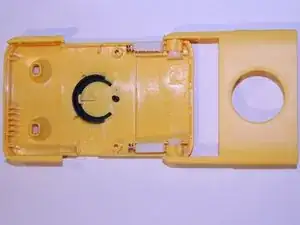

  5. Ynv1pfcYGuMyxRnq
    Ynv1pfcYGuMyxRnq
    vODOV1KsXErQFScs
    QMvJ6xRFheQYCjUV

    • You now separated the black part containing the battery and the yellow case.

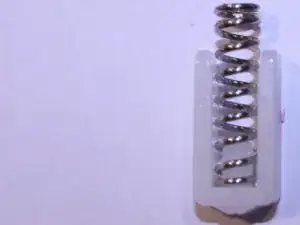

    • Remove the springs and their white casings to easily reach the battery.

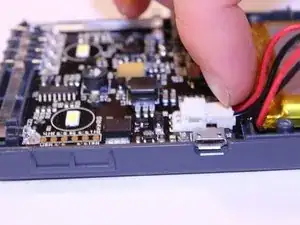

  6. DukHDFU6SIOZZjCP

    • Unplug the battery from the motherboard.

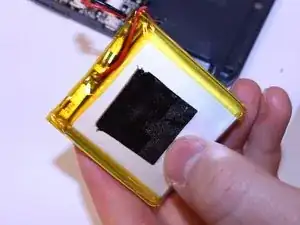

  7. VVWQHemmpZyVOWCo
    VVWQHemmpZyVOWCo
    GK1dypG6B5XuRiQX

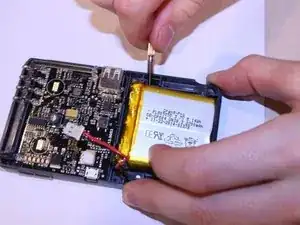

    • Remove the battery by lifting it out.

    • The battery is stuck with double sided tape and may take some effort to remove.

Conclusione

Replacement batteries can be found online. After placing in the new battery reassemble your device, follow these instructions in reverse order.
