Waka Waka Power Plus Solar Panel Replacement

Difficoltà

Difficult

Passi

7

Tempo Necessario

15 - 30 minuti

Introduzione

Replacement guide for the solar panel of the Waka Waka Power Plus. If this guide is only followed up to the PCB, this guide could also be applied to the replacement of the PCB.

  1. LciyGBUmolvBJPrt
    LciyGBUmolvBJPrt
    iHgKfPZdc3ZWQpeU

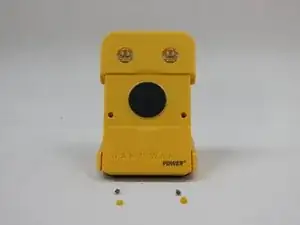

    • Open the lid, remove the silicone screw covers and undo the screws.

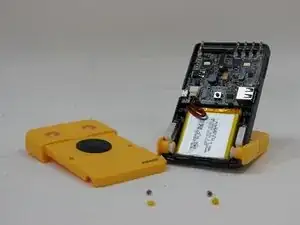

  2. wOtNUkpGliZliVfU
    wOtNUkpGliZliVfU
    PKBAE6q1F2GwSJtr

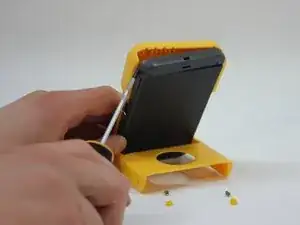

    • Be careful not to damage the plastic during this step! Using a plastic opening tool instead of a screwdriver may be advisable.

    • Watch out, the hinges are spring loaded. They tend to fly away when tension is relieved.

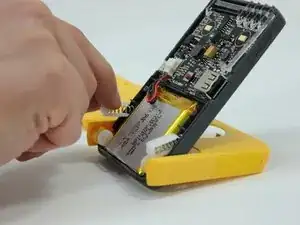

  3. oaXk2xPknpRG3du6
    oaXk2xPknpRG3du6
    vFCBPxp1Vud1ixnO

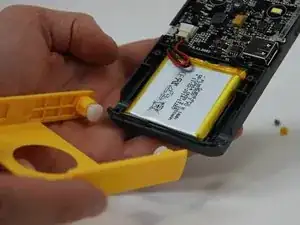

    • As said in the previous step, be careful when removing the springs. They tend to fly away!

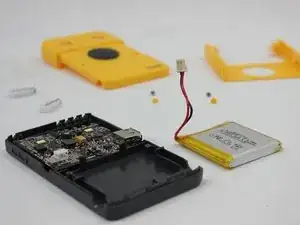

  4. YqOvsaVCQ2HccBjv
    YqOvsaVCQ2HccBjv
    5C12lNFJSU6XtfHe
    uijBDfFJ5BTsosUv

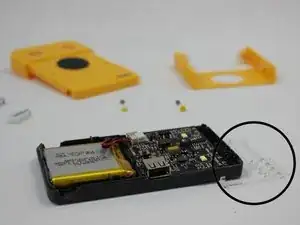

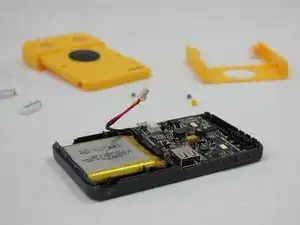

    • Now is a good time to remove the light conductor.

    • Pull out the connector, be careful and only pull the connector and not the wires to avoid damaging them in the process.

    • The battery is fixed in place with double sided tape. Make sure not to bend and damage the battery when taking it out.

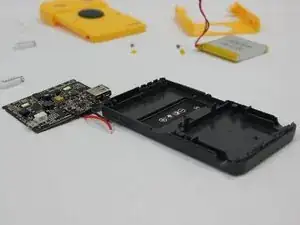

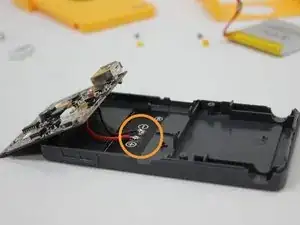

  5. baO6gp1ANSxDId5Y
    baO6gp1ANSxDId5Y
    ACjc2LDT4ODOwI3c
    mivQA6YnccTNx2T2

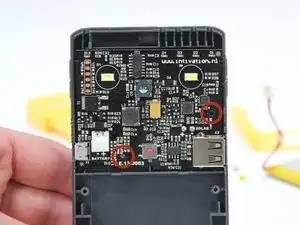

    • There are two plastic pins holding the PCB in place. You will have to break them. Try to damage them as little as possible, this may allow you to re-use them with a little trick we show later on.

    • You will need a soldering iron to undo and later on redo the connections between the solar panel and the PCB.

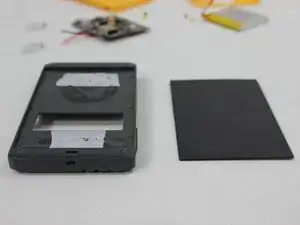

  6. C6UufTBeAjicJN3g
    C6UufTBeAjicJN3g
    uJ5y43HdJGNoaXSG

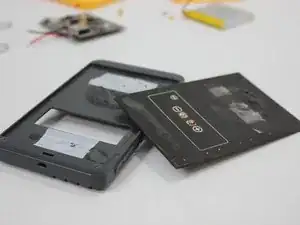

    • Use a flat object like a bank card to avoid bending the solar panel.

    • This Waka Waka has been opened up previously. Since the solar panel was originally glued in place, the solar panel was re-attached using double sided tape. When putting your Waka Waka back together, you could either choose glue or double sided tape. Both work fine.

    • Now replace the solar panel and rebuild the Waka Waka in reverse order. Useful tips for re-assembly will be given in the next step.

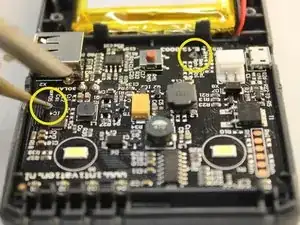

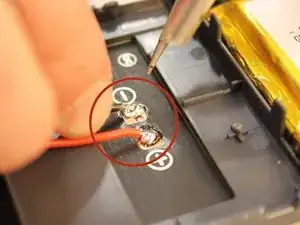

  7. tBODmlhYDE2EPIRC
    tBODmlhYDE2EPIRC
    tfrguNAPF5ZUlQGA

    • Don't be silly! Red is +, black is -. If you don't know that, you shouldn't be here.

    • You had to break the plastic pins that hold the PCB in place earlier in this repair guide. You can fix them reasonably well by holding a semi-hot soldering iron on them so they melt and once again hold the PCB into place.

Conclusione

To reassemble your device, follow these instructions in reverse order.
