Whirlpool Refrigerator Freezer Door Replacement

Scritto Da: nicO
  • Commenti: 1
Whirlpool Refrigerator Freezer Door Replacement

Difficoltà

Moderate

Passi

14

Tempo Necessario

30 - 45 minuti

Introduzione

Use this guide to remove or replace the freezer door in your Whirlpool Refrigerator.

This guide will work for most Whirlpool refrigerators. This guide is written with a model WRS315SDHW refrigerator. If you have a different model, you may encounter some minor disassembly differences, but the overall repair process will be the same.

  1. GAB31IUS1UwNdE6E

    • Before you begin your repair, perform the following:

    • Turn off your main water supply

    • Unplug your device

  2. uZnovp3POltPPcNl
    uZnovp3POltPPcNl
    EEmEHtDyinkLLTC6
    NpS45AODrJVIyexU

    • Depending on your repair, open one or both doors.

  3. wW1LVBI3TRSUOnOh
    wW1LVBI3TRSUOnOh
    QOkYrIUrXQH5jfjq
    liaaPTJeyjVcmEOK

    • Remove the screw(s) securing the front panel.

  4. pkgPNWrR6cBBcleQ
    pkgPNWrR6cBBcleQ
    Z1cSFvhnp4ZSABoY
    khFOKgYpNOJOIZxg

    • Pull the front panel straight off the chassis and remove it.

    • You may have to slightly open the water filter door to remove the front panel completely.

  5. siK5f61scZDBWZtm
    siK5f61scZDBWZtm
    EMVfCejTiLp5DR6T

    • Remove the screw(s) securing the freezer door wiring harness.

    • Remove the screw(s) securing the freezer door water hose.

  6. f5MoT5K4mfCKAcZN
    f5MoT5K4mfCKAcZN
    kv2Di5G6WH1YXofh

    • Pull the wiring harness out of its slot in the chassis to access its connectors.

  7. VyXlZOMGivnYZH6i
    VyXlZOMGivnYZH6i
    ngOX21h4OwgT3NkP
    UNmplNm6oaLokUcu

    • Disconnect any connectors attached to the door wiring harness.

  8. Xq2IZXQhrVNlosYu

    • Place a clean cloth under the water hose before continuing.

  9. bWrUXOqn2mnlxCgy
    bWrUXOqn2mnlxCgy
    1nWXdqGPtgTHHSbd

    • Pull the plastic clip off the freezer door water hose.

  10. UfWVdUF4PMEtUKMR
    UfWVdUF4PMEtUKMR
    W4NNPqL2SKRUMCRH
    LYMuF1NVXcGY4sT1

    • Use one hand to compress the blue plastic ring into the green section of the hose.

    • Use the other hand to pull the water tube out of its slot.

  11. HNd6BeytGNBlYJvn
    HNd6BeytGNBlYJvn
    kf6uQTVgSXYuehcx

    • Depending on your device, you may have a plastic cover on the hinge. Remove it before continuing.

    • Hold the door while performing the next two steps to avoid the door from accidentally falling.

    • Remove the screw(s) securing the freezer door.

    • Some devices may have screws solely for alignment. You don't need to remove these.

  12. OFNCVAFeqINHdpp5
    OFNCVAFeqINHdpp5
    lMwTsXrQJtQu4g3w
    GHkWpqvoNI2FAges

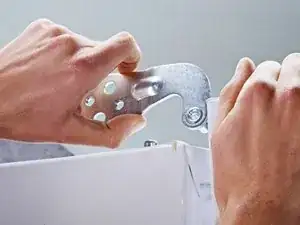

    • Pull the door hinge straight up to separate its alignment pins from the chassis.

    • Remove the door hinge.

  13. GuJ4slQuTHbuisV5
    GuJ4slQuTHbuisV5
    lmFfHVOZQBQT4Sgd
    nUEeoiPWHdvOQGO3

    • Pull the freezer door straight up to disconnect it from the chassis.

    • Thread the cables through their slot in the chassis.

    • You may need to thread them individually.

  14. Or4hvCX6mLkO1PKQ
    Or4hvCX6mLkO1PKQ
    JhBeKOCPKBlf4Prv

    • You're now left with the freezer door.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Ask our Answers community for help.
