Introduzione
Occasionally the dryer air may be muffled or too hot due to a clogged filter, and so cleaning or replacement may be necessary. Disassembly of the device requires a special bit for removal of tamper-proof screws.
Strumenti
-
-

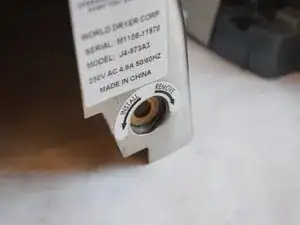

In order to change the air filter, start with the removal of the outer metal casing. Use the appropriate security bit.
-

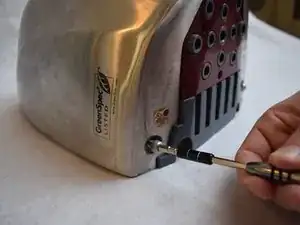

Using the special bit, remove the large screws at the bottom of the casing.
-

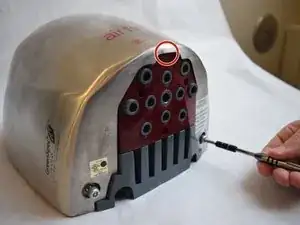

To remove the case, lift the indicated spot with your hands.
-
-
-

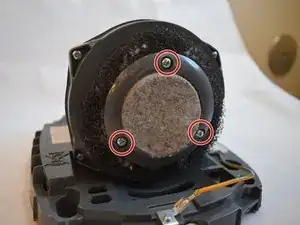

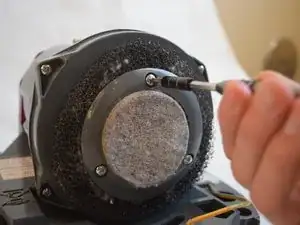

To access both filters, unscrew all three 1/2" Ph2 screws.
-

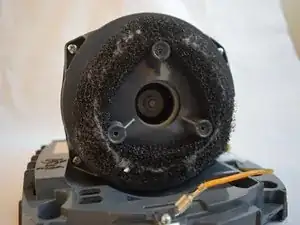

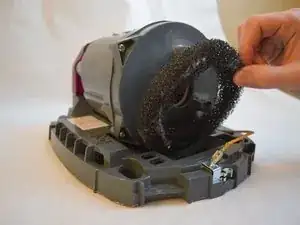

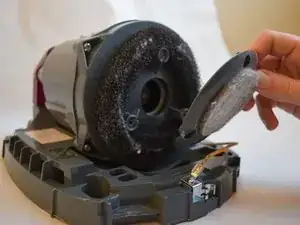

Gently pull the plate away from the black, coarse filter.
-
Conclusione
To reassemble your device, follow these instructions in reverse order.
