Introduzione
The wheels are an important component of the vacuum that can easily get clogged or damaged and will render the vacuum unusable. If you need to replace the wheels of your Wyze WVCR200s robot vacuum, follow this guide.
-
-
Pinch the blue tabs below the rotating brush towards each other.
-
Lift the plastic housing surrounding the rotating brushing straight up, and the remove it from the vacuum.
-
-
-
Use a screwdriver to remove four screws along the edge, just above where the brush was removed.
-
-
-
Lift the battery out from underneath the cover.
-
Carefully disconnect the battery from the vacuum port.
-
-
-
Flip the vacuum upside down so the underside of the device is facing up.
-
On the upper left of the device, you should see a spinning brush with three arms protruding out. This is the side brush.
-
-
-
To remove, grab the three arms of the brush and pull upwards. The arms should be tight, but should not require too much force to lift off.
-
-
-
Use a spudger to pry the cover off that surrounds the vacuum mechanism.
-
Remove the two screws securing the access cover.
-
Remove the cover.
-
-
-
Use a screwdriver to remove the eight screws surrounding the vacuum mechanism cover.
-
Use a screwdriver to remove the four screws holding the mechanism itself.
-
Lift the vacuum mechanism from the device.
-
Disconnect the cable from the vacuum.
-
-
-

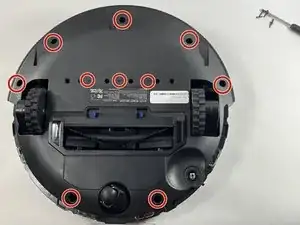

Use a screwdriver to remove the ten screws on the back side of the vacuum that hold the outer shell in place.
-
Use a spudger or opening tool to pry along the edges of the vacuum and separate the two parts.
-
-
-
The wheels are located on each side of the vacuum.
-
Use a screwdriver to remove three screws from each wheel holding them in place.
-
Remove the wheels.
-
To reassemble your device, follow these instructions in reverse order.
