Xbox One S All Digital Edition Hard Drive Replacement

Scritto Da: Jules Hajjar
  • Commenti: 1
Xbox One S All Digital Edition Hard Drive Replacement

Difficoltà

Moderate

Passi

11

Tempo Necessario

15 - 25 minuti

Introduzione

This replacement guide provides a step by step process on replacing the Hard Drive of the Xbox One S All Digital Edition (Model 1681). The Hard Drive is responsible for storing games or any downloadable content. Symptoms of a broken Hard Drive are if a user is unable to download or access downloaded games or content. Disconnect all cables prior to disassembly.

  1. pQOTEpEZdGFtnU43
    pQOTEpEZdGFtnU43
    4AxKp1UNjhFsaaoC
    fXDtF2XrbZKCsQcr

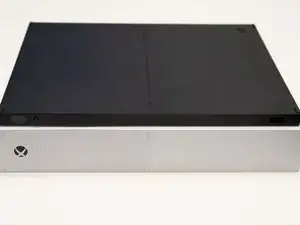

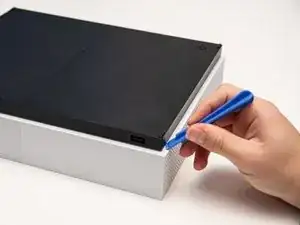

    • Position the iFixit Opening Tool's riveted edge in between the top and bottom cover of the plastic enclosure.

    • Apply downward pressure on the iFixit Opening Tool until the security clip unlocks.

    • Repeat on different points of the plastic enclosure until the bottom cover is removed.

  2. PZgrJYjK2NxpISY1
    PZgrJYjK2NxpISY1
    jMOFSSw4qSCfPmAi

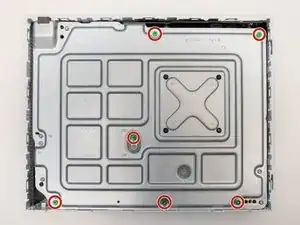

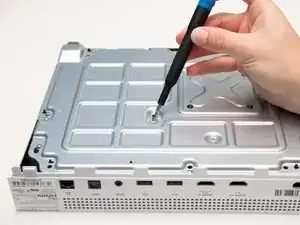

    • Remove the six 50 mm green screws (labeled F1-F6) from the metal chassis using a Torx 10 screwdriver.

    • These screws hold the top cover of the plastic enclosure to the chassis.

  3. INKa3TY3oQ2KBNhj
    INKa3TY3oQ2KBNhj
    rOtHrWrrFSEHA41u

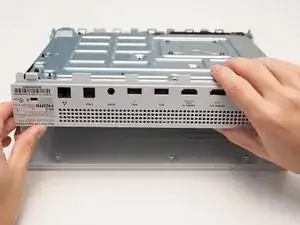

    • Apply pressure to peel off the sides of the casing.

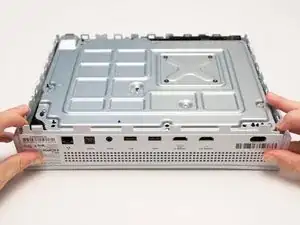

    • Separate the metal chassis from the top cover, lifting the back of the chassis up and away from the top cover.

    • The plastic back panel is meant to stay attached to the metal chassis.

  4. rX4AYhcYIAOLKTHY

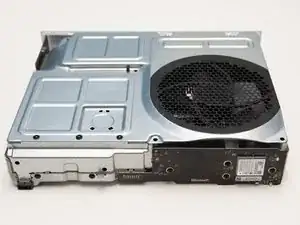

    • Flip the metal enclosure so that the fan cover is on top.

  5. uHZC6KVdZAItFmSi
    uHZC6KVdZAItFmSi
    lEH54BlQTFmZwGDx

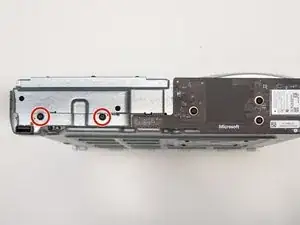

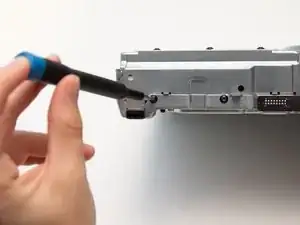

    • Remove the two 15mm screws from the front panel using the Torx T8 screwdriver.

  6. IOlnJ1k3CN6qdiMl
    IOlnJ1k3CN6qdiMl
    DKxqD4WS1XEVkIgj
    i2fdWxw3rRmwrUWo

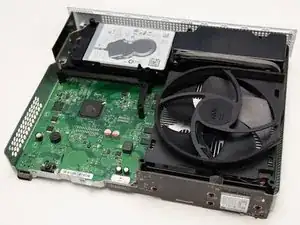

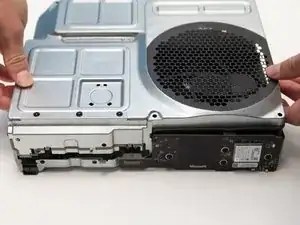

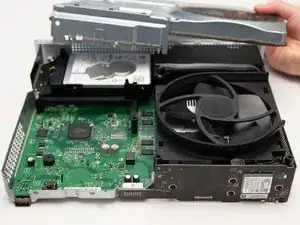

    • Carefully slide the top metal case off the frame.

    • This may require shifting the case side to side as you slide up.

  7. vtYL6jiSp4BiXFce
    vtYL6jiSp4BiXFce
    K3Y6eYHjIAK6ou3s

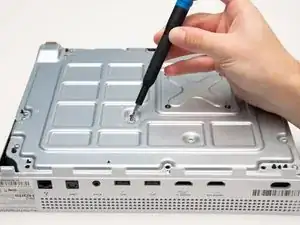

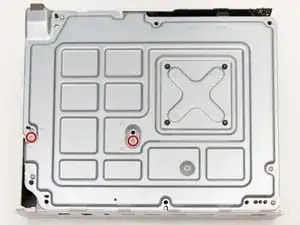

    • Remove the two 10mm screws, labeled C3 and C4, attaching the plastic hard drive case to the metal chassis with the Torx T10 Security screwdriver.

  8. LrDTMQPMhkDjEqGS
    LrDTMQPMhkDjEqGS
    5DiSITAbCxpwTbDa
    NwHqHscUqFLZRGJa

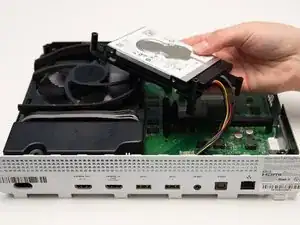

    • Lift the hard drive and the black plastic casing from the chassis.

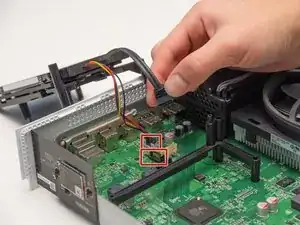

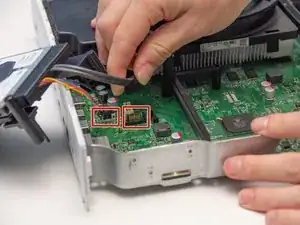

    • Remove the two sets of wires from the motherboard by gently pulling them directly upward.

  9. RUqHrMKPOZiCrHLK
    RUqHrMKPOZiCrHLK
    LFmDArfxDBLnf54p

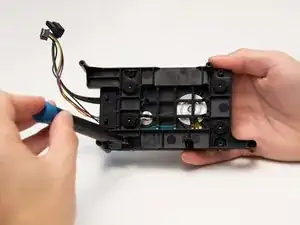

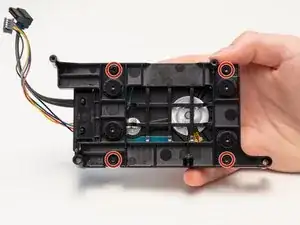

    • Remove the four 10mm screws attaching the hard drive to the plastic casing with the Torx T8 Security screwdriver.

  10. CVClE56OWMjNTvpN

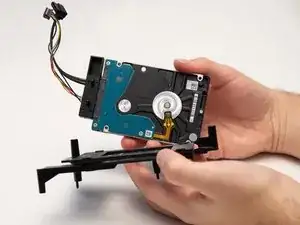

    • Carefully remove the hard drive from its plastic case.

  11. jIGtNLe6RylGykdB
    jIGtNLe6RylGykdB
    ogUIZqDhCpVEDFVk

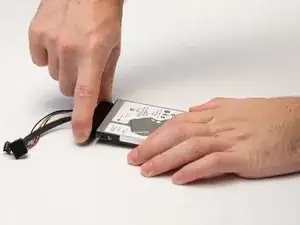

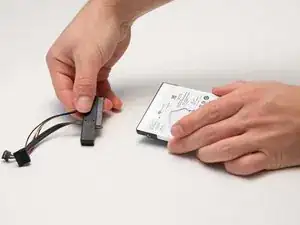

    • Carefully remove the black wire connection from the hard drive by gently pulling away from the hard drive.

Conclusione

To reassemble your device, follow these instructions in reverse order.
