Xbox Series X|S Controller (Model 1914) Right Handle Cover Replacement

Scritto Da: Manuel Haeussermann
  • Commenti: 0
Xbox Series X|S Controller (Model 1914) Right Handle Cover Replacement

Difficoltà

Moderate

Passi

3

Tempo Necessario

5 - 10 minuti

Introduzione

Use this guide to replace the right handle cover on your Xbox Series X|S Controller (model 1914).

  1. nc2jnwSRKrtckCcy
    nc2jnwSRKrtckCcy
    2RvcVdnxMAucHZDK
    hNtWlQH2fwXvYkjj

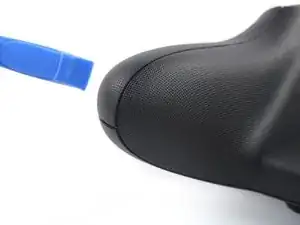

    • Insert an opening tool between the right handle cover and the bottom inner edge of the back housing.

  2. nPeROMGOeOcOLgxm
    nPeROMGOeOcOLgxm
    dJdKQkOnjlsnR4OK
    1oIFaTi6p5fYwJJ4

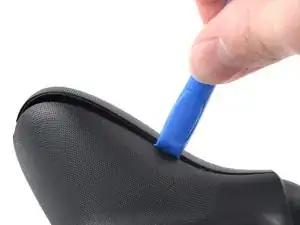

    • Strong plastic clips secure the handle cover. Significant force is required to release them.

    • Slide the opening tool along the inner edge of the right handle cover and pry intermittently to release the plastic clips.

  3. hRluiJFD65Xvf1oO
    hRluiJFD65Xvf1oO
    jLU4F1WGBaGKVHku
    xJC3GcDk2glqVaud

    • The plastic clips on the outer edge make it difficult to slide along it and release the clips. Therefore, prying up on the inner edge is the easier option.

    • Pry up the middle inner edge of the handle cover with the opening tool to release the remaining clips.

    • Place a finger on top of the handle cover to prevent it from being forcefully ejected.

    • Remove the right handle cover.

    • To reinstall the right handle cover, position it on the back housing and press down firmly along the edges to engage all of the clips.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
