Xiaomi Air 12 Speaker Replacement

Scritto Da: Hannah Kwan
  • Commenti: 7
Xiaomi Air 12 Speaker Replacement

Difficoltà

Easy

Passi

8

Tempo Necessario

10 - 20 minuti

Introduzione

Use this guide to replace the speaker in your Xiaomi Air 12.

  1. i6Pov1VClnkVXAbB

    • Orient the computer so the Xiaomi logo is at the bottom of the device.

    Hello,

    I have a problem on my Mi air 12 , specifically with the lcd cable port on the mother board. I want to replace it but i can’t seem to find where to buy the parts.

    Pleas help me

    Kind regards

    L.

    lanusjeleus -

  2. mVYLPcyT3JTCsjsn
    mVYLPcyT3JTCsjsn
    dXEbVHMAUuLt16aZ
    HNNG5AxJksENWCAM

    • Insert the plastic opening tool underneath the top-middle rubber covering and lift upwards to reveal the hidden screw.

  3. WbYRWVkOADoaTEiJ
    WbYRWVkOADoaTEiJ
    bwuEyhmZ1YEFsyoQ

    • Remove the eight 3 mm screws using the Torx T5 driver by inserting the screwdriver into each screw and rotating counterclockwise.

  4. mNlUVPVVwAO3Cmof
    mNlUVPVVwAO3Cmof
    RwBNkoCCmgH6uAom
    XaddoYG45ovrPLFU

    • Insert the plastic opening tool into each side of the computer and push the tool downwards to pop open the back cover.

    • You will hear popping noises as you remove the cover.

  5. gbrgFwNuWUTkZM6s
    gbrgFwNuWUTkZM6s
    LnKHhIQgg1v5LYFZ

    • Remove the back of the laptop by gently lifting the casing upwards.

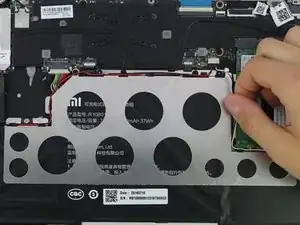

  6. KxJTQT6nSPsIglhA
    KxJTQT6nSPsIglhA
    RDSfWDGTyLxrGiBt

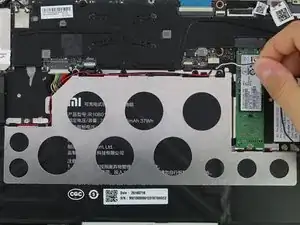

    • Remove the white and black speaker wires from the black tabs by pulling upwards from the device.

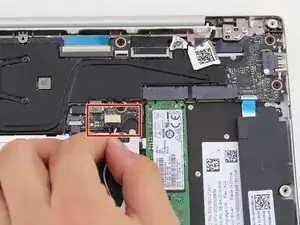

  7. QHuRKURJfi1IhIZK
    QHuRKURJfi1IhIZK
    6DL4LTeDG2NQY3kF

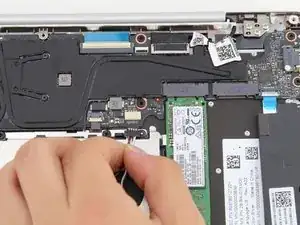

    • Gently pull the speaker connector out from the connection point using your hand.

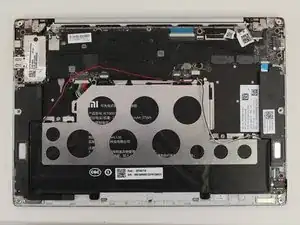

  8. vvq2MjuXnbLSBrye
    vvq2MjuXnbLSBrye
    Nt4PFcwFIIpFBvJH
    PMlCICOjaKmxAtpX

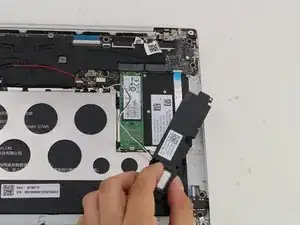

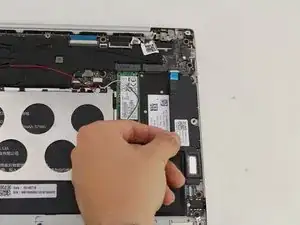

    • Remove the left speaker module by pulling the panel up from the device.

    • Repeat the same process for the right speaker module.

    • Left and Right speaker modules are denoted by an "L" and "R" respectively.

    • There will be a slight adhesive underneath the module.

Conclusione

To reassemble your device, follow these instructions in reverse order.
