Xiaomi Mi Mix 2s Screen (LCD+Touch) Replacement

Scritto Da: Kefelegn Derbew
  • Commenti: 1
Xiaomi Mi Mix 2s Screen (LCD+Touch) Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

25 minuti

Introduzione

  1. QMOYQTkOCVKK3Mdj
    QMOYQTkOCVKK3Mdj
    eqBroU1QI2f3fMmj

    • Turn off and remove the SIM card.

  2. FYmhsKTZxPAbOwcl
    FYmhsKTZxPAbOwcl
    FSAIEPpOfWEQ1lUh
    vKJvROe1JhTKEcu6

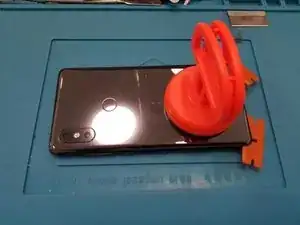

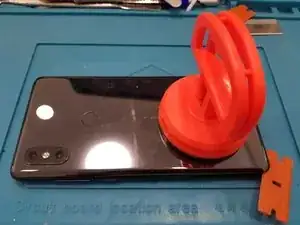

    • Apply heat to loosen the back cover adhesive. Then remove it carefully.

  3. KpvVsTc4S4afXG1I
    KpvVsTc4S4afXG1I
    LB1QYgVJCqZR6kxn

    • Remove all nine screws that hold the shield protecting the motherboard.

  4. jfykQxBc2ZTwEKy1
    jfykQxBc2ZTwEKy1
    pDtvABwFWPANgW53
    XD3XiEHWNSSo6LEH

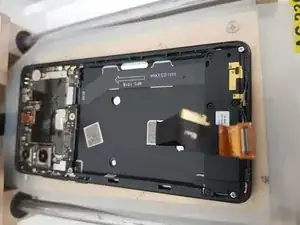

    • Remove the shield and disconnect the battery connector, LCD and touch connector, and touch ID connector.

  5. c3BZ6MoFfSYNwLKq
    c3BZ6MoFfSYNwLKq
    VUkAfWaeKRwFT1rc
    JZFYKUdwYoAUx5sr

    • Remove the battery carefully as shown and apply heat to loosen the adhesive holding the screen.

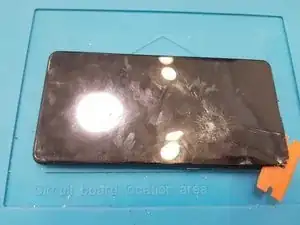

  6. CThVfWp3SUHGGpsq
    CThVfWp3SUHGGpsq
    yFTysnQQCxfsFTEf
    OKK5EQw45ZQili4T

    • Carefully start to separate the screen as shown. Start from the top corner.

  7. ICVtNHKHOYilJZmf
    ICVtNHKHOYilJZmf
    uDcFQtbUWAfkjhUq

    • You have done it.

    Does a new lcd normally come with glue or an adhesive strip? Which is best for remounting a new lcd?

    Nathan Wilks -

Conclusione

To reassemble your device, follow these instructions in reverse order.
