Xiaomi Mi Note Rear camera Replacement

Scritto Da: Abdulaziz Aldekheel
  • Commenti: 6
Xiaomi Mi Note Rear camera Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

30 - 35 minuti

Introduzione

Use this guide to replace your Xiaomi Mi Note's rear facing camera.

  1. lPocBP22ZoJWMusu
    lPocBP22ZoJWMusu
    GVJhbNavusLcMBSY

    • Use your suction cup to grip the back of the phone. Once the suction cup is secure, pull back with moderate force and the back plate should snap free.

    There is no lock on screen side so when you force pulling with sucker you only lift the phone so?

    Eddie Ng -

  2. e4hgHCuZnrIPKRod
    e4hgHCuZnrIPKRod
    WIUgvMGRUDvBw4SN
    VBKJWYXTKuTjP3si

    • Once the back plate is off you will need to detach the frames that hold in the battery. Locate and remove the screws (Screws are marked in the image). You can then pull the frame off with ease once the screws have been removed.

    • Remove the six 3.5mm Phillips #000 black screws using a securing part of the back panels.

    • Remove the seven 2.5mm Phillips #000 black screws securing part of the back panels.

    • Remove the five 2mm Phillips #000 silver screws securing the remaining back panels.

    No need to remove the lower part.

    Cyril Maman -

    The position of the screw is wrong

    Shi Chang -

  3. NcunywSodtdpEkaG

    • Use a nylon spudger to pry upwards to detach the ribbon that's connecting the battery to the motherboard.

  4. CA3qCGTY6R33xaYF
    CA3qCGTY6R33xaYF
    skRecrty4HCAHRDA

    • Insert a nylon or metal spudger underneath the battery at any point. Then slide the spudger around all the edges to loosen it. The battery can now be easily lifted out of the frame.

    • Glue will be holding down the backside of the battery.

    Be careful not to turntoo much the top left screw, next to the lens. It's close to the white film of the screen , you may hurt it (i did)

    Cyril Maman -

    Before removing the battery, it is better to hold the phone in a warm place, so that the adhesive tape is easier to remove.

    Dmitry -

  5. UQviWfSJcsYHnUrd

    • Use a plastic spudger to detach the remaining ribbon from the motherboard.

  6. DoYvFrEAxcGISWTM
    DoYvFrEAxcGISWTM
    MPDJfUV1bEhADc35

    • Use tweezers to detach the small ribbon on the left side located near the volume buttons as well as the microphone cord located on the right side along the frame.

    • When detaching the ribbon on the left use minimal force to prevent damage.

  7. awKuaCJZ25IWLAnH
    awKuaCJZ25IWLAnH
    EXJNdwjyZnHP4GTi

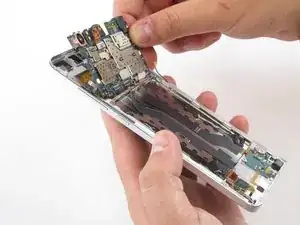

    • Use a tweezer to lift and remove the motherboard from the frame.

    • Be sure that the Dual SIM card and tray has been removed.

  8. SALn5DXyOp3uS13k

    • Use tweezers to slide the ribbon to the right out of the insert as shown in the image.

Conclusione

To reassemble your device, follow these instructions in reverse order.
