One of the worst things that can happen to your motorcycle is overheating. this can be caused by a few reasons but a very common one is cooling fan failure. very often the fan does not turn on due to the relay not working properly. This fix is fast and requires very little tools. You will need a #1 Phillips screwdriver, a flat-head screwdriver, and an hex key set.
Strumenti
Ricambi
-
-
Use the motorcycle key to open the rear seat. remove the seat in order to access the tools pouch.
-
-
-
Once you remove the left hand middle fairing be careful when disconnecting the turn signal cable. gently unclip it.
-
-
-

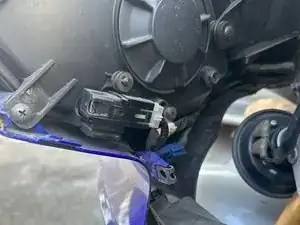

After removal of the left hand cover under the clutch lever. you will be able to locate the relay assemblies for the lights and the cooling fans.
-
-
-
Use a flat head screw driver to gently pry the locking mechanism open on the relay assembly. you can either remove the relay by itself or the bracket assembly.
-
To reassemble your device, follow these instructions in reverse order.
