Yocan UNI Pro Disassembly

Scritto Da: ShellingRook27

Commenti: 5

Difficoltà

Moderate

Passi

Tempo Necessario

20 - 40 minuti

Introduzione

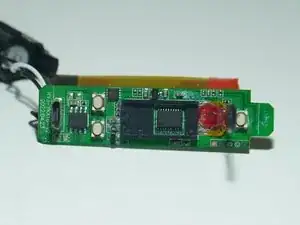

My device was water damaged so I decided to take it apart! You will see signs of corrosion on the motherboard and electronics closeup images.

Passo 1

Remove 2 Phillips head screws. There is one on each side of the device

Passo 2

Flip the device over and pull the cover upwards

Passo 5

Remove buttons and aperture/shutter pieces
They should just fall out. If not, they can be removed with your fingers

Passo 6

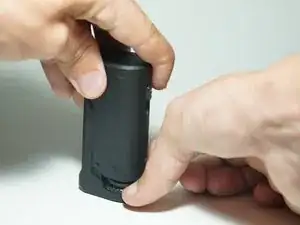

Grip the bottom and top of the device and pull up slightly
The next step will fully remove it

Passo 7

Pull the clear plastic out and away to the left
Pull up at an angle

Passo 8

Peel the Kapton Tape off of the battery and clear plastic

Passo 9

Slide the circuit board back so that it is not under the plastic lip

Passo 10

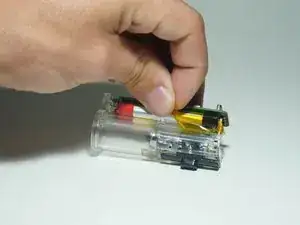

Slowly peel the battery and circuit board away from the plastic housing
There is some adhesive under the battery so be careful

Passo 11

Grip the plastic case and use your thumb to remove the height adjustment module
It should slide out all the way
The ball bearings in the next step might fall out right away so be careful that they don't roll away!

Passo 12

There are two ball bearings that make the height adjustment module work and lock into position.
There is one on each side and they easily fall out so be careful

One of the balls fell out, and I can’t put it back. Should I be worried about this? Should I throw out the entire thing? Is it going to explode without it? Halp.

Worried Gal -

The balls are used to set and hold the height of the cartridge. AKA the height adjustment feature. It will not explode without it, the cartridge might just slide to the lowest position.

ShellingRook27 -

Passo 14

Use a spudger to carefully remove the screen
It is held down with adhesive
There is no way to remove the screen completely unless you get rid of the red strain relief material and desolder it from the board

Passo 15

For reassembly, place the slots on the small shutter pieces into the circular holder

Conclusione

To reassemble your device, follow these instructions in reverse order.
