ZTE Blade E Front Panel Replacement

Scritto Da: Lilia Johnson
  • Commenti: 4
ZTE Blade E Front Panel Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

Nessuna stima

Introduzione

  1. 3aRNLRCUx3PHmdDn

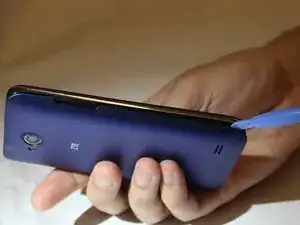

    • Using a spudger, remove the back panel of the phone.

  2. CgcVxRw3ACIkXIyj
    CgcVxRw3ACIkXIyj
    C44Wfc3FpW5jZWck

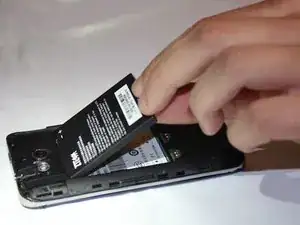

    • Remove the battery and SD card from the phone.

  3. b5RBnQrlON3DKAyH

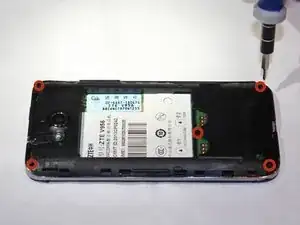

    • Remove the five 4mm Philips #00 screws, circled in red, holding the the back down.

  4. VGnoU2UITWZLiiyH

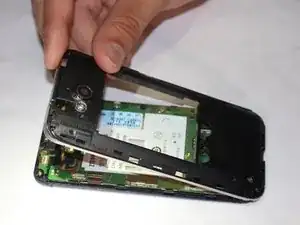

    • Remove the back piece, exposing the motherboard.

  5. xxrmyDFokBh6CHUf
    xxrmyDFokBh6CHUf
    HIjVvdOfddkTFLOf
    bUsfI1WcdFxquWuQ

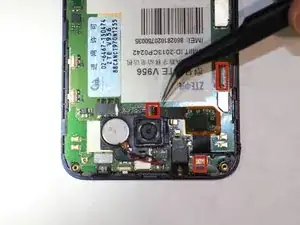

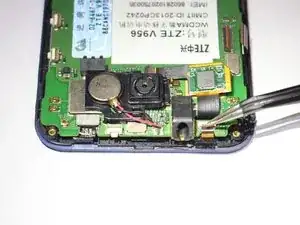

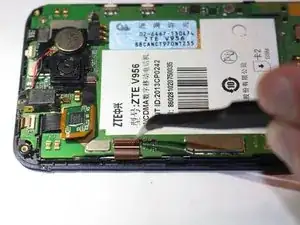

    • Flip up the three small tan clips holding the ribbons in place.

  6. eN1bwfTGWgoJvPrZ

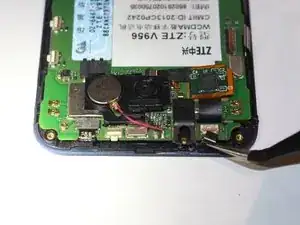

    • Gently slide each of the three ribbons out of the motherboard.

  7. FekwSy2oateADHtl

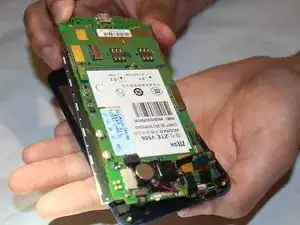

    • Slide the motherboard off of the ribbons detaching it from the front of the phone.

    Excelente gráfica,gran aporte

    Juan -

    I have a ZTE Blade C370 in the workshop to change the LCD, I would like to be able to contribute some material. There is a tutorial where I can see what I need to be able to contribute. For example, the quality of the images and their descriptions.

    Alvaro Gomes -

  8. WLYW2QABZTXE66tB

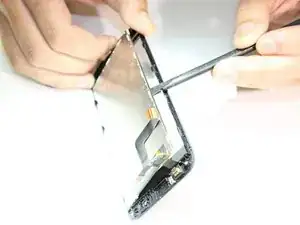

    • Carefully use the spudger to free the screen from the front panel. You can use your hands to pull it the rest of the way out once you have freed the screen from the clips.

  9. epkV62vYh5cDgjGj

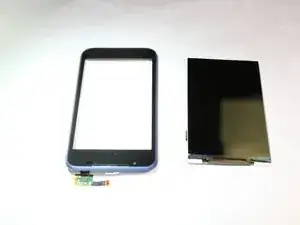

    • Dispose of the old font panel and replace it with the new one.

Conclusione

To reassemble your device, follow these instructions in reverse order.
