ZTE Blade E Volume Button Replacement

Scritto Da: Sean Gardner
  • Commenti: 2
ZTE Blade E Volume Button Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

15 - 30 minuti

Introduzione

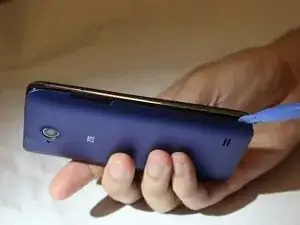

  1. iVQLOjXA3tbtVAyr

    • Using your finger nails or a spudger, remove the back panel from the phone.

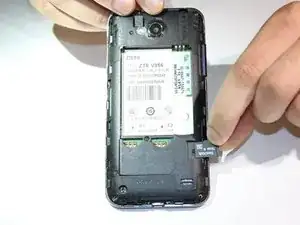

  2. uXHVxLpQxLpWNDxP
    uXHVxLpQxLpWNDxP
    wD65nrgv5DImLCVG

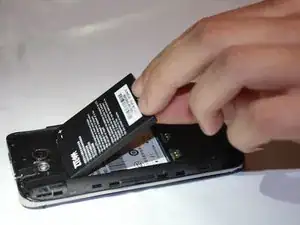

    • Using your fingernails or a spudger, remove the phones battery and microSD card.

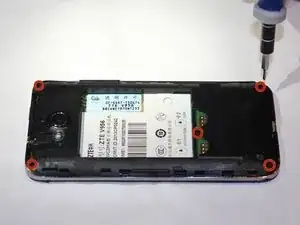

  3. hYFEXJnTicefpDBL

    • Remove the five 4mm Phillip's #00 screws, circled in red, from the back panel.

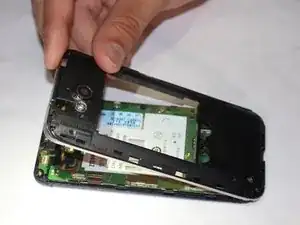

  4. axVnqHRkwTp4DdAp

    • Separate the back panel from the motherboard.

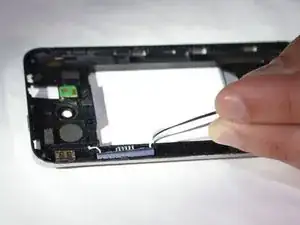

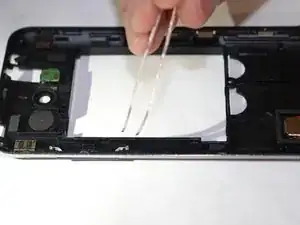

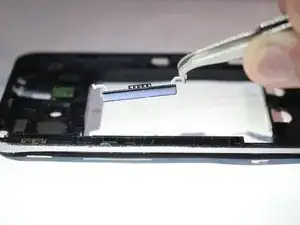

  5. yZBVFpm1OCXTuJjX
    yZBVFpm1OCXTuJjX
    syoQod4XoMpXQF6q
    SxNxTwmu6pdOqYpI

    • Using a pair of tweezers, remove the volume button by unlatching the two white bands holding it in place.

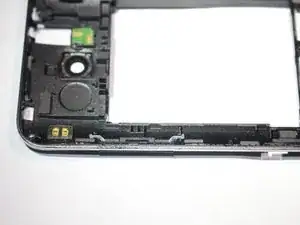

  6. dSCJ2ArdWurVCAhL
    dSCJ2ArdWurVCAhL
    yj4kGOCwGuLLxbRc

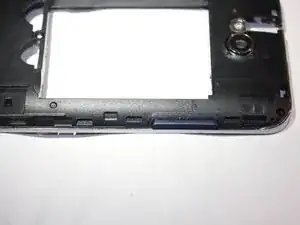

    • Either replace the volume button with a new one, or reinsert the old one using a pair of tweezers. It should look like the pictures when inserted properly.

Conclusione

To reassemble your device, follow these instructions in reverse order.
