ZTE Z667T Speaker Replacement

Scritto Da: Michael Lidbetter
  • Commenti: 0
ZTE Z667T Speaker Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

5 minuti

Introduzione

This guide shows how to replace the speaker for ZTE Z667T.

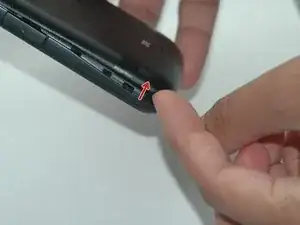

  1. gAXpfgIADARNLOTY

    • Gently insert your fingernail into the bottom left crevice of the back cover and lift up.

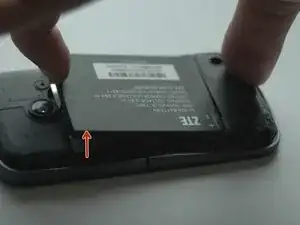

  2. G5etfl1AvFPk3yIl

    • Remove the battery by inserting your fingernail at the top of the battery and lift up.

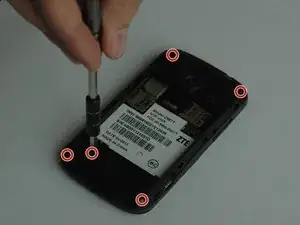

  3. OdBp6DRH1JWfiFfu

    • Using a Phillips #000 screwdriver, remove the five screws located on the back case.

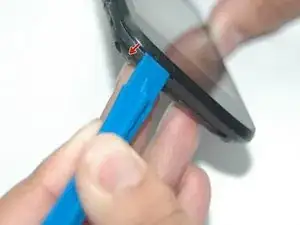

  4. HTwWWePo3UIqAwAs

    • Gently pry open the back case using the plastic opening tool.

    • Pry open in multiple locations to avoid damage.

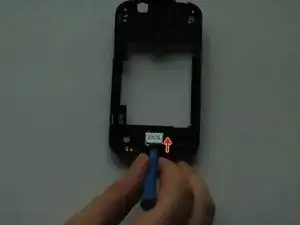

  5. yoRUEbZkWckXLCFX

    • Using the plastic opening tool, gently lift the speaker out of the back case.

Conclusione

To reassemble your device, follow these instructions in reverse order.
