iDevices iGrill Speaker Replacement

Scritto Da: Michelle Nguyen
  • Commenti: 0
iDevices iGrill Speaker Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

Nessuna stima

Introduzione

There is a small diaphragm within the device that functions as the speaker for the audio alarm. This guide contains information on how to replace it.

  1. KnKuxjDLWsZbIhFM

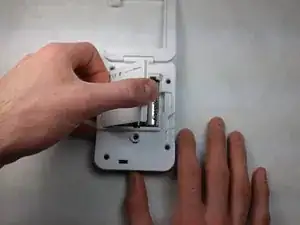

    • Remove the plastic cover from the back of the device.

  2. p2CUxgBNYvxEGtCi

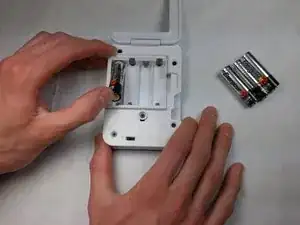

    • Remove the batteries from their positions within the device.

  3. TAKK1ZrpDPM4GvHm
    TAKK1ZrpDPM4GvHm
    4wlYWibiZaNW4rsY

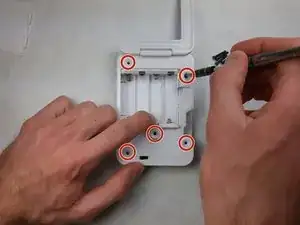

    • Remove five black 10 mm Phillips #0 screws from the back side of the device.

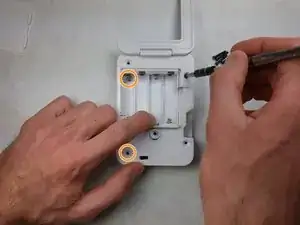

    • Remove two silver-colored 5 mm Phillips from the left side of the internal cover.

  4. dQuhsWk3F4xDYmpW

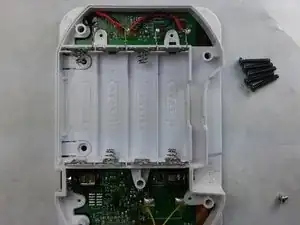

    • Separate the back cover from the main portion of the device.

  5. cuPLRFp5PqcqtM4Z

    • Desolder the speaker wires from the motherboard.

Conclusione

To reassemble your device, follow these instructions in reverse order.
