Introduzione
Removing an old or broken PRAM battery.
Ricambi
-
-
Unplug all the cables from the computer, including the power cable. Lay the computer face-down, supporting the neck and base with a soft cloth under the screen.
-
-
-

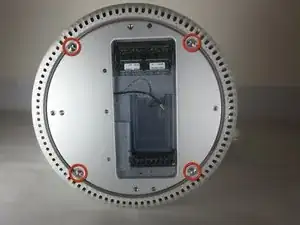

Open the housing plate.
-

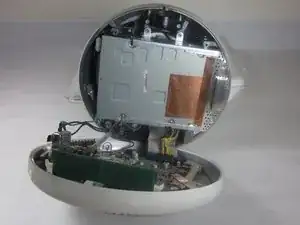

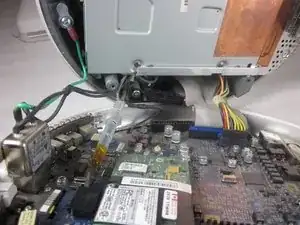

A fixed plug connector between the logic board and upper unit will cause some resistance. Pull gently but firmly.
-
-
-

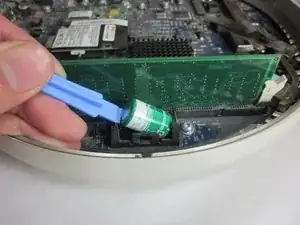

Gently remove the battery from its holder using the plastic opening tool.
-
Insert new battery.
-
To reassemble your device, follow these instructions in reverse order.
7 commenti
We are not allowed to use screwdrivers to pry open stuff. Unfortunately, that is exactly what we did in step 6 of Dissasembling the back up battery
Don't you need to replace the thermal paste?
adoug27 -

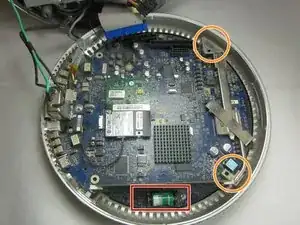

Yes you do in the areas circled in orange. I'd also recommend changing the paste under the heatsink itself as that will probably be dried up.
I love my very first Mac ever, it is still working. After a couple of time living with its amnesia (forgot time and what else…) I’ve decided to replace the battery. Thanks for this helpful article. It made it easy to me to replace the battery.
