Introduzione

Regain Bluetooth functionality by replacing the Bluetooth board.

  1. vWrrXC1PF4f4EOGg

    • Lay the iMac display-side down on a flat surface.

    • Loosen the three Phillips screws securing the rear panel to the iMac.

    • These screws are captive in the iMac. The center screw will stop turning after about 3.5 turns and the outer screws will stop turning after about 5.5 turns. Do not try to remove these screws from your iMac.

    Some models (with light sensor) have only the two outboard screws.

    Robert Huber -

  2. ZqkNk6XIHbtLZU1K
    ZqkNk6XIHbtLZU1K
    tQCIapnSNJOrtXIP

    • Lift the rear panel slightly near the bottom of the iMac.

    • Pull the rear panel toward yourself and remove it from the iMac.

  3. baTSkCnT64YTQSTJ

    • Remove the two 5.5 mm T6 Torx screws securing the Bluetooth board to the logic board.

  4. XTh2eGQWWfEBMoF6
    XTh2eGQWWfEBMoF6
    oX4bLNSuKoFjWSH4

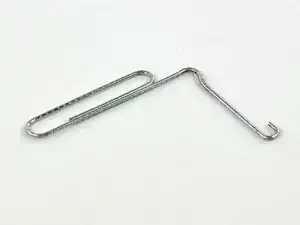

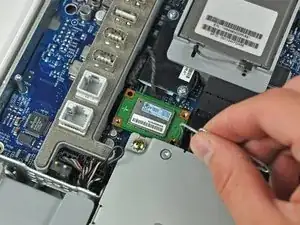

    • Bend a paper clip into a hook and use it to pull the Bluetooth board up off its socket on the logic board.

  5. JVMvLXkHGLOFqVN2

    • Use a spudger to pry the Bluetooth antenna connector up off the Bluetooth board.

    No visible wire with connector

    Joe Cardoza -

Conclusione

To reassemble your device, follow these instructions in reverse order.
